TD-VG3631
300Mbps Wireless N VoIP ADSL2+ Modem Router User Guide
48

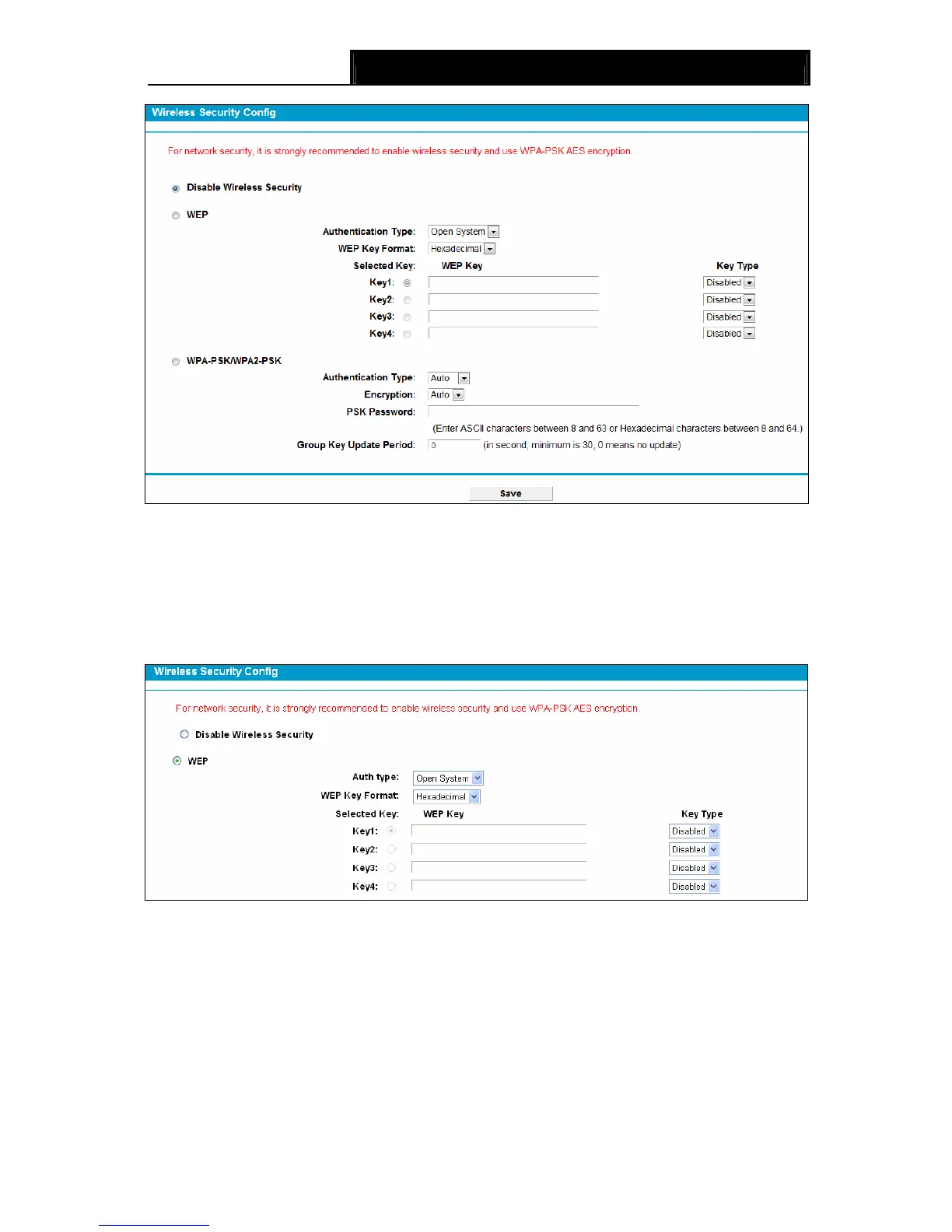

Figure 4-29
¾ Disable Wireless Security: If you do not want to use wireless security, check this radio
button. But it’s strongly recommended to choose one of the following modes to enable
security.
¾ WEP: It is based on the IEEE 802.11 standard. If you check this radio button, you will find a
notice in red as show in Figure 4-29.
Figure 4-30
• Auth Type - you can choose the type for the WEP security on the drop-down list. The
default setting is Automatic, which can select Shared Key or Open System authentication
type automatically based on the wireless station's capability and request.
• WEP Key Format - Hexadecimal and ASCII formats are provided here. Hexadecimal
format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified
length. ASCII format stands for any combination of keyboard characters in the specified
length.
