TP-Link TD854W

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide
48

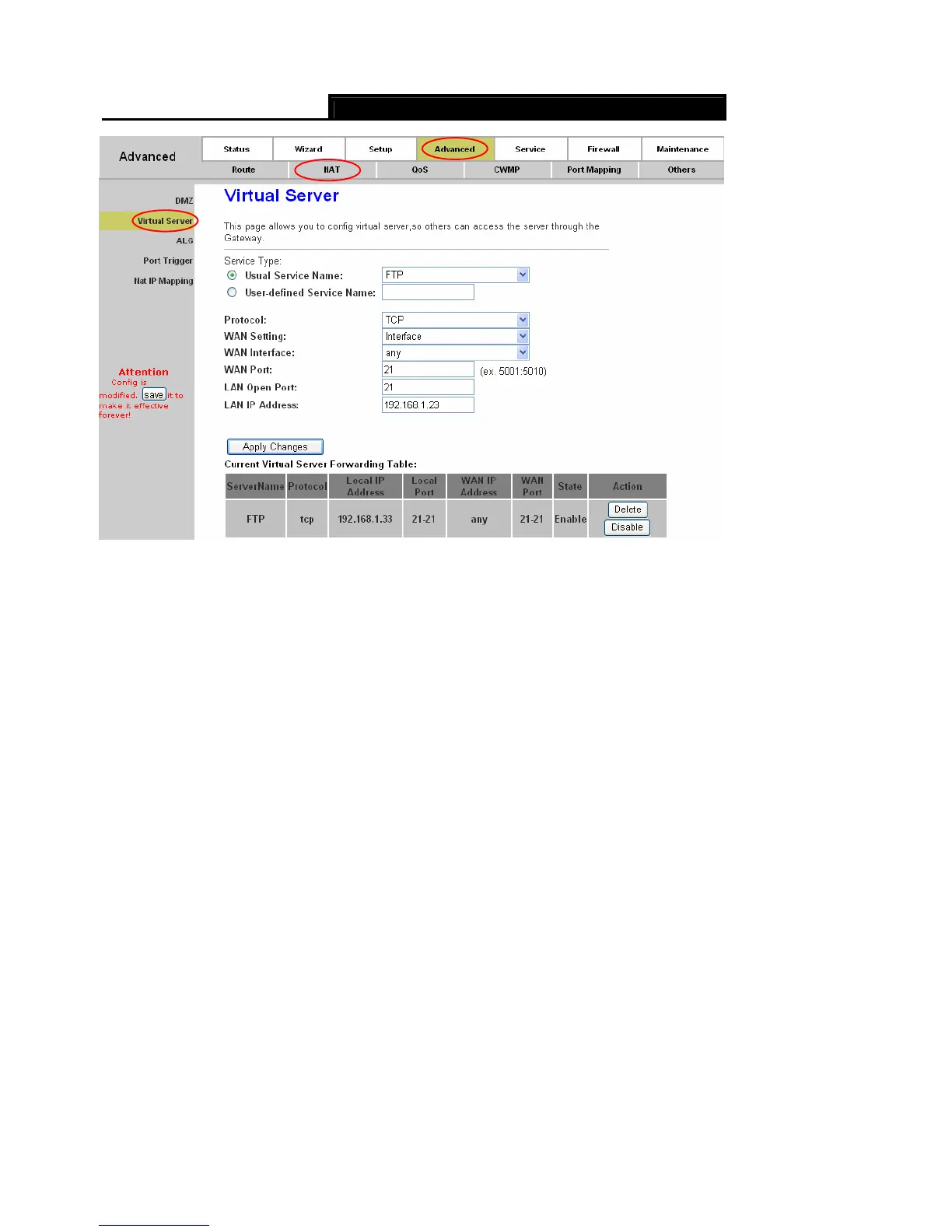

Figure 4-28
 Usual Service Name: The Router provides some common services. Select the one you
need.
 User-defined Service Name: If the service can not be found in the Usual Service Name
drop-down list, just enter the name manually in this field instead.
 Protocol: The protocol used for this virtual server.
 WAN Setting: The WAN setting of this virtual server used; it can be interface and IP address.
Select a desired one, and then options available will change to offer the configuration.
 WAN Interface: The interface on which the virtual server used on WAN side
 WAN IP Address: The IP address which the virtual server used on WAN side. You can
access this IP and WAN port from WAN side to obtain the service.
 WAN Port: The open port on WAN side. It can be either a single port or a port range.
 LAN Open Port: The open port on LAN host. It can be either a single port or a port range.
 LAN IP Address: The IP address of the host which provides the service on LAN side.
Click the Apply Changes button to save your configuration.

Note:
If changes are made, after clicking Apply Changes button, a Save button will appear on the left
panel. You need to click the Save button to make your changes take effect.
