TP-Link TD854W

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide
81

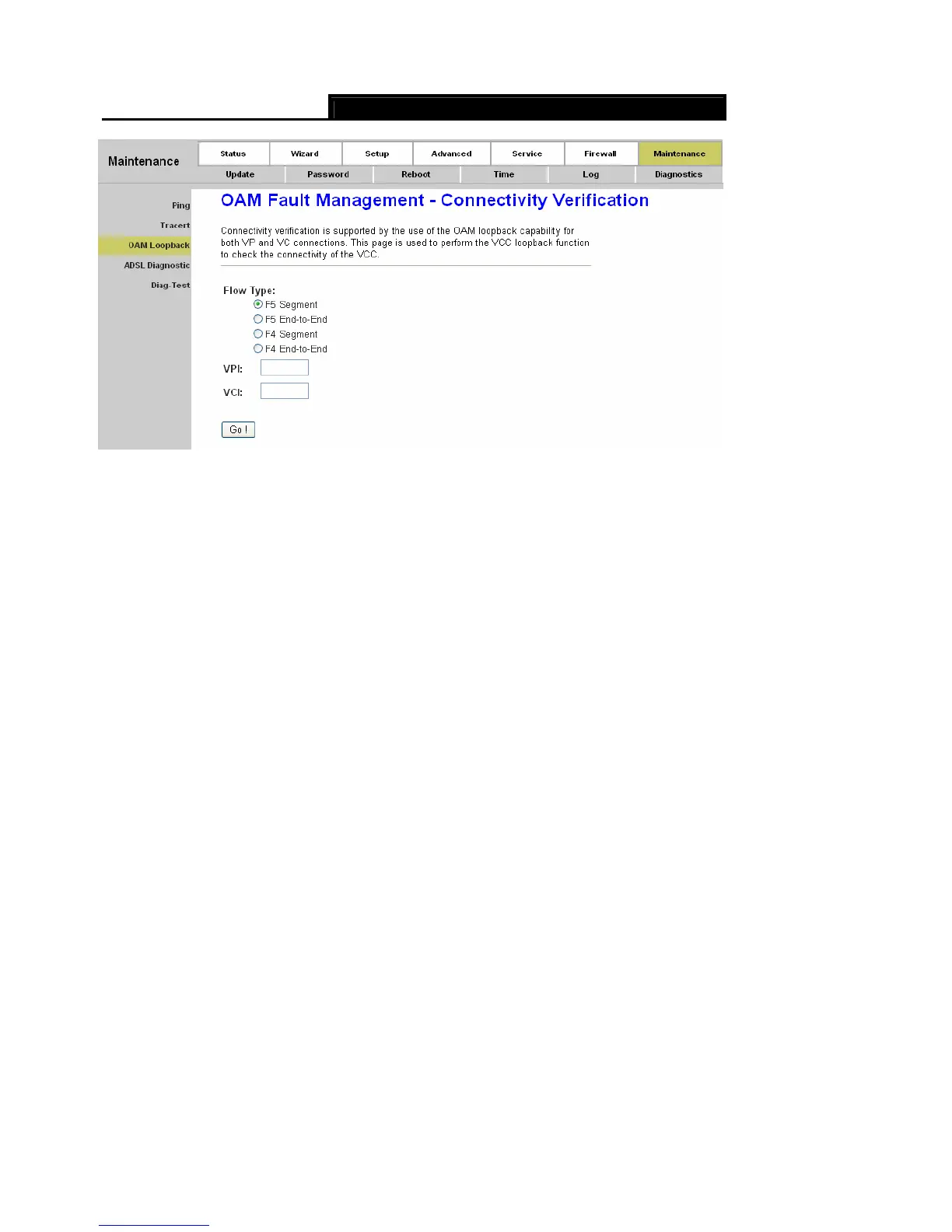

Figure 4-62
 Flow type: The ATM OAM flow type. The selection can be F5 Segment, F5 End-to-End, F4
Segment or F4 End-to-End.
 VPI: The VPI number you want to do the loopback diagnostics.
 VCI: The VCI number you want to do the loopback diagnostics.
4.6.6.4 ADSL Diagnostic
Choose “Maintenance→Diagnostic→ADSL Diagnostic”, you will see the next screen (shown in
Figure 4-63). ADSL diagnostics allows you to diagnostics the ADSL tone.
