UNIT IDENTIFICATION
Trace Engineering Co. Inc. Tel (360) 435-8826 Part Number 3179
5916 195
th
Street, NE Fax (360) 435-2229 Effective August 6, 1998
Arlington, WA 98223 USA www.traceengineering.com
Page
12
Unit Identification
This section describes the marking and location of the model and serial number for Legend Series II
inverter/chargers. Use this section to determine the type and model of your inverter/charger.
Model Identification
Trace Engineering inverters are specifically designed to meet the growing demand for high-reliability,
high-quality inverters and chargers for alternative energy systems and vehicle applications. This
manual covers the Legend Series II inverters with various options and configurations. To determine
the model and features of your inverter, check the model number found on the identification placard
on the right side of the inverter.

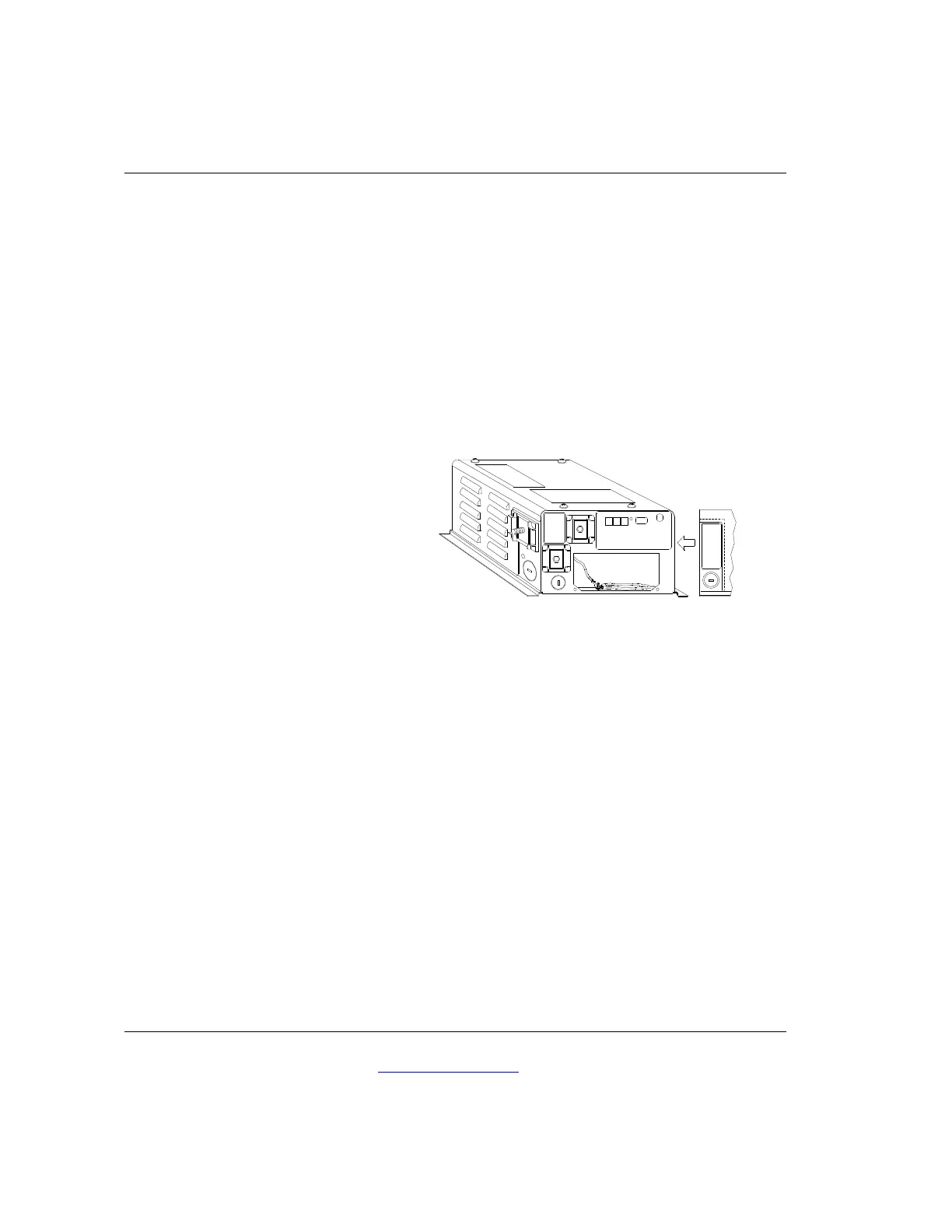

Consider the following unit with a L2012
model number:
L 20 12
Model Power Input Voltage
Model: The first letter indicates the model, in this case the Legend Series. Legend Series II
inverters are designed for after-market installations in recreational and other mobile vehicles. They
are housed in a white enclosure and employ neutral-to-ground switching.
Power: The first and second positions in the model number indicate the continuous AC power
output in hundreds of watts. Power levels available include 2000, 2500, and 3000 watts. In the
example above, 20 would stand for a 2000-watt (two kilowatt), continuous-output inverter.
Input Voltage: The number (12) following the power rating indicates an inverter/charger that is
designed to convert 12VDC input to 120VAC
output, and charge 12VDC batteries when powered by
120VAC.
