OPTIONS
Trace Engineering Co. Inc. Tel (360) 435-8826 Part Number 3179
5916 195
th
Street, NE Fax (360) 435-2229 Effective August 6, 1998
Arlington, WA 98223 USA www.traceengineering.com
Page
62
four lights will blink when an error condition occurs. The Bulk Charge or Float Charge lights will light
to indicate the inverter is in either the bulk or float stage of the charging process.
In order for the inverter to recognize the RC6, it must be powered up with the RC6 already plugged
in. If the RC6 is plugged in while the inverter is operating, it will not be recognized. In this situation
simply turn the inverter power switch off and then back on.
The RC7 Remote Control
The optional RC7 remote control has the ability to communicate and adjust settings in the Legend
Series II. It connects into the port labeled Remote Control on the front panel of the inverter using the
included remote connection cable. Only one remote control at any given time may be plugged into
the inverter. Use the cable supplied with the RC7 rather than standard phone cable because it is
high quality cable. It is tinned along its entire length for corrosion and weather resistance.

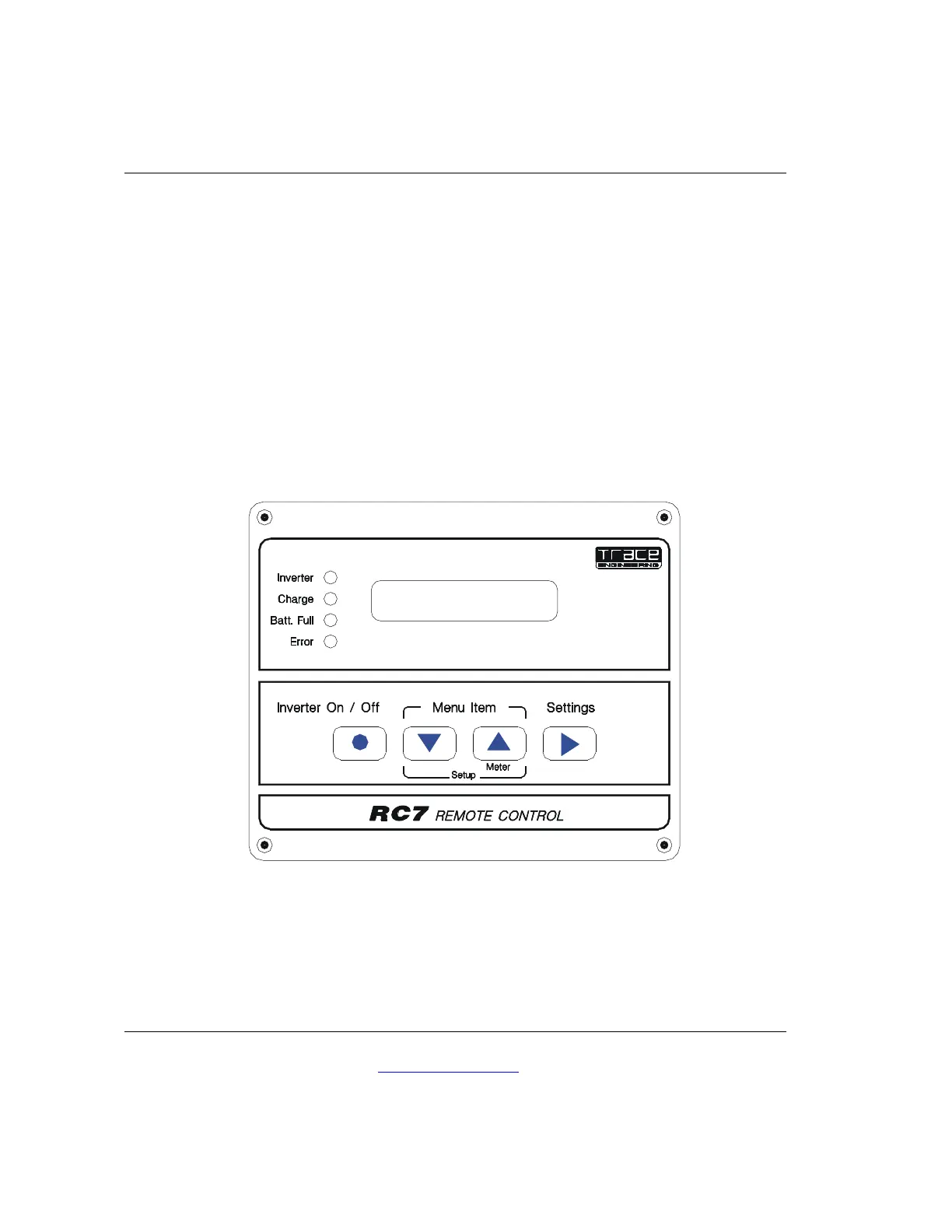

Figure 12 , RC7 Remote Control
The RC7 displays its information on a LCD screen and has multiple modes. A menu tree
accompanies the RC7 to help navigate the RC7’s many features. The RC7 is the only way to
change the setpoints of the inverter. Once the desired changes have been made, the RC7 may be
unplugged and these changes will be retained, even if the inverter is completely powered down.
