Viewing and Changing System Status Information
10 BMTW-SVU02C-EN

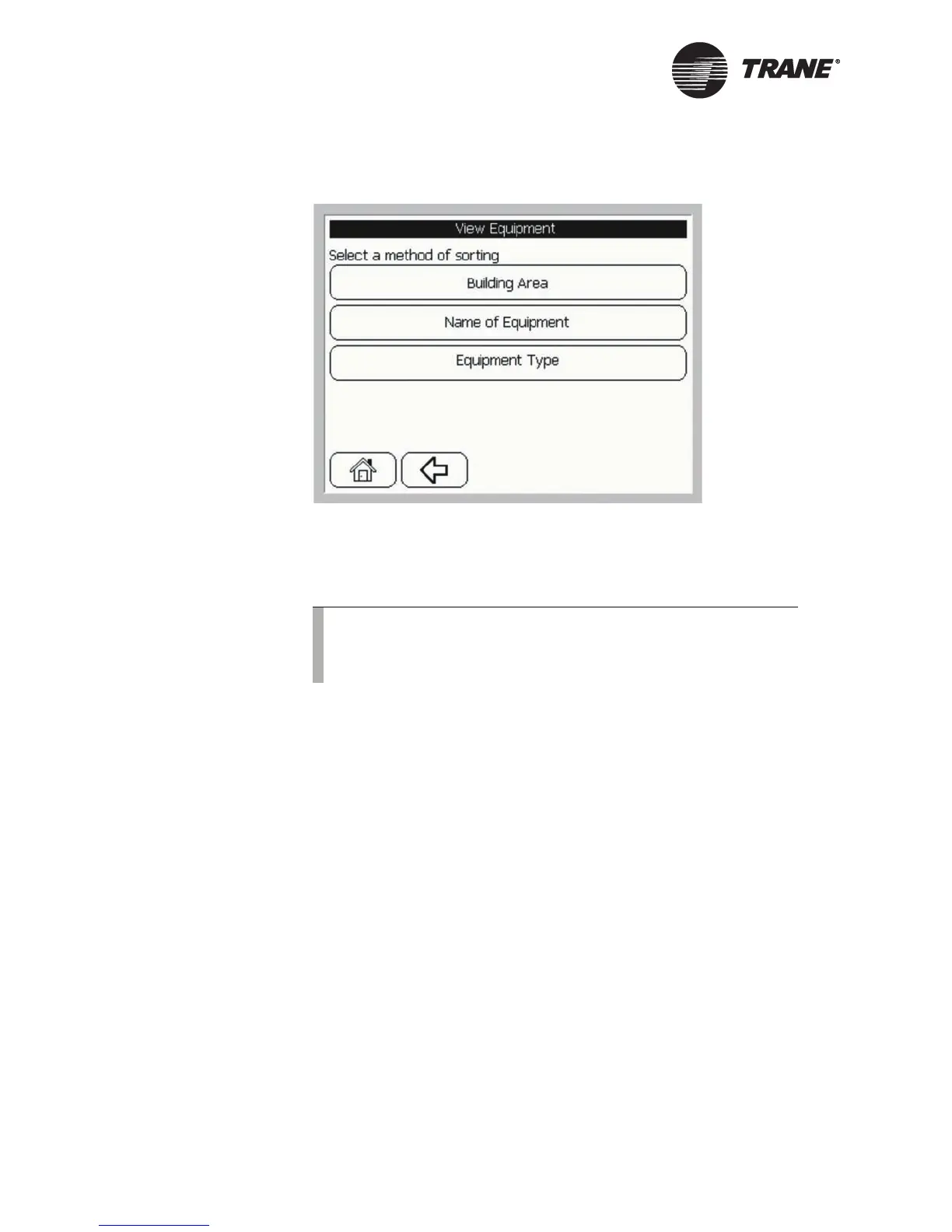

Figure 8: View Equipment Screen
The View Equipment screen enables you to view equipment status by
using three different sort methods: Building Area, Name of Equipment
and Equipment Type.
Using the View Screens
There are three sort methods for viewing and changing system status:
• View by building area
• View by name of equipment
• View by equipment type
Use the sort method most convenient for you to quickly get to the equip-
ment you need to monitor or control.
The following sections briefly discuss each method.
View by Building Area
Figure 9 on page 12 shows an example of how to view equipment by build-
ing area. In this example, you use the area sort method to view the oper-
ating conditions for a VAV box that controls the space for Conference
Room C. This sort method assumes you are familiar with the building
area. The step-by-step procedure for viewing equipment by building area
is found on page 15.
Note:
The building area sort method only appears if the Trane
installer or programmer has assigned areas to the operator dis-
play.
