Viewing and Changing System Status Information
14 BMTW-SVU02C-EN

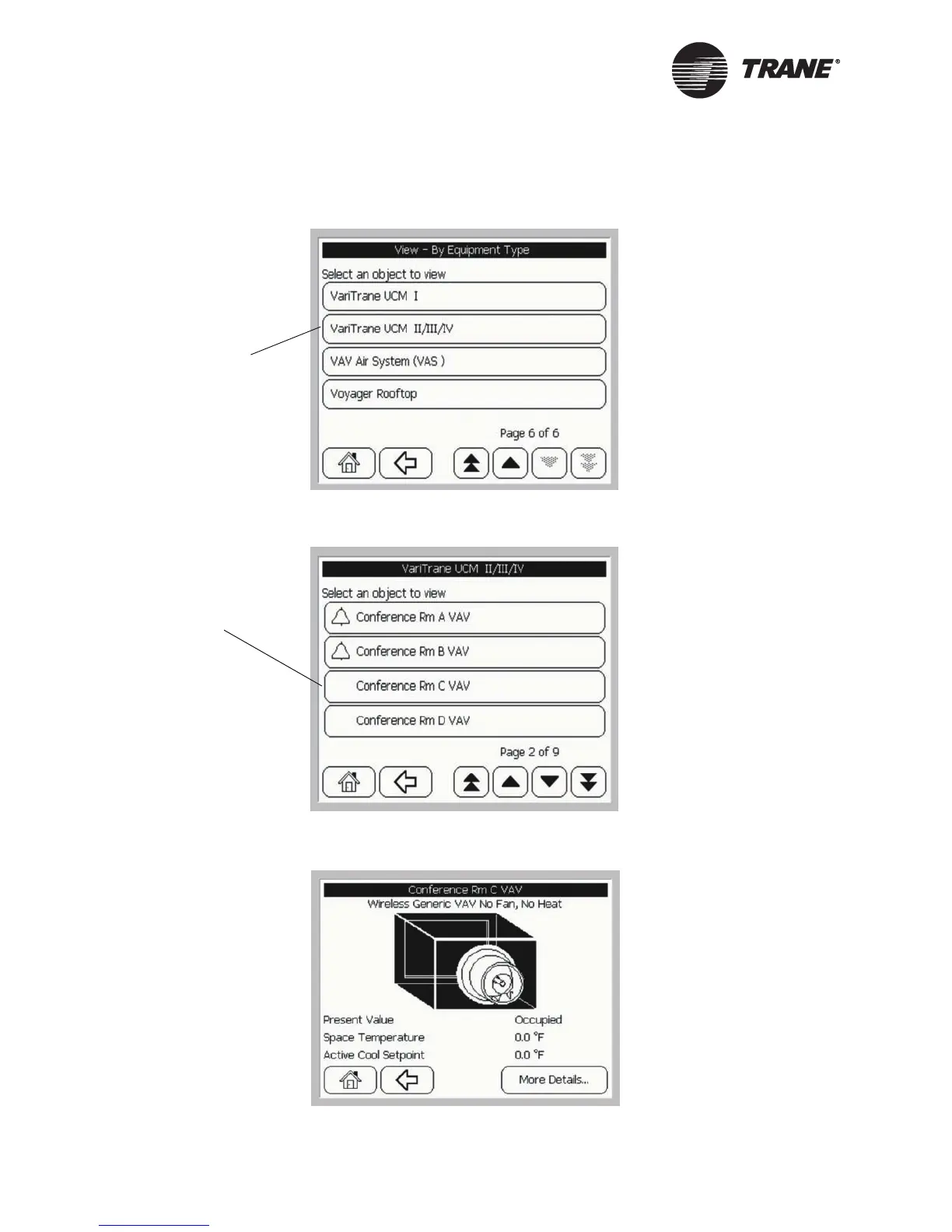

Figure 11: Sorting by Equipment Type—Example Screens
Screen #1—Equipment Type
Screen #2—Equipment Name
UCM Main Screen
Select equipment type
This screen displays
equipment by type in
alphabetical order.
Select equipment by
name
This screen displays all the
equipment of a particular type
in alphabetical order.
This screen displays the
operatiing conditions of the
equipment.
