Trane IntelliPak 2 Series - Exhaust Fan; Recovery Wheel)

RT-SVX24Q-EN
119
Exhaust Fan (with or without Energy
Recovery Wheel)

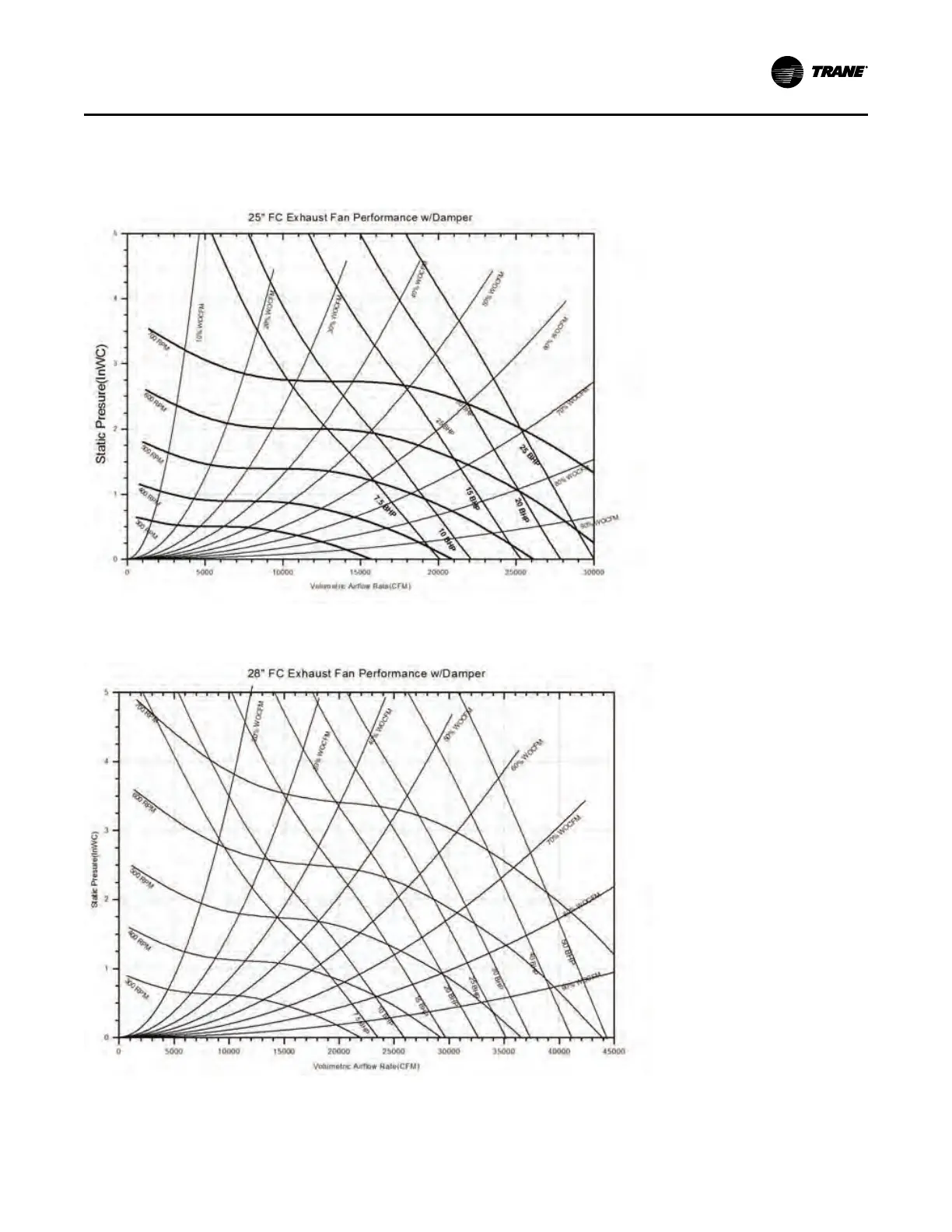

Figure 80. Exhaust fan performance LOW CFM—90 tons air-cooled/100 tons evap-condensing (25" Fan)
Figure 81. Exhaust fan performance STANDARD CFM—90 tons air-cooled; LOW CFM—105-150 tons air-cooled;
STANDARD CFM—100 tons evap-condenser—LOW CFM—118-162 tons evap-condensing (28")
UUnniitt SSttaarrttuupp
