Trane IntelliPak User Manual

Unit Start Up
11 6 RT-SVX36K-EN
Pressure DropTables

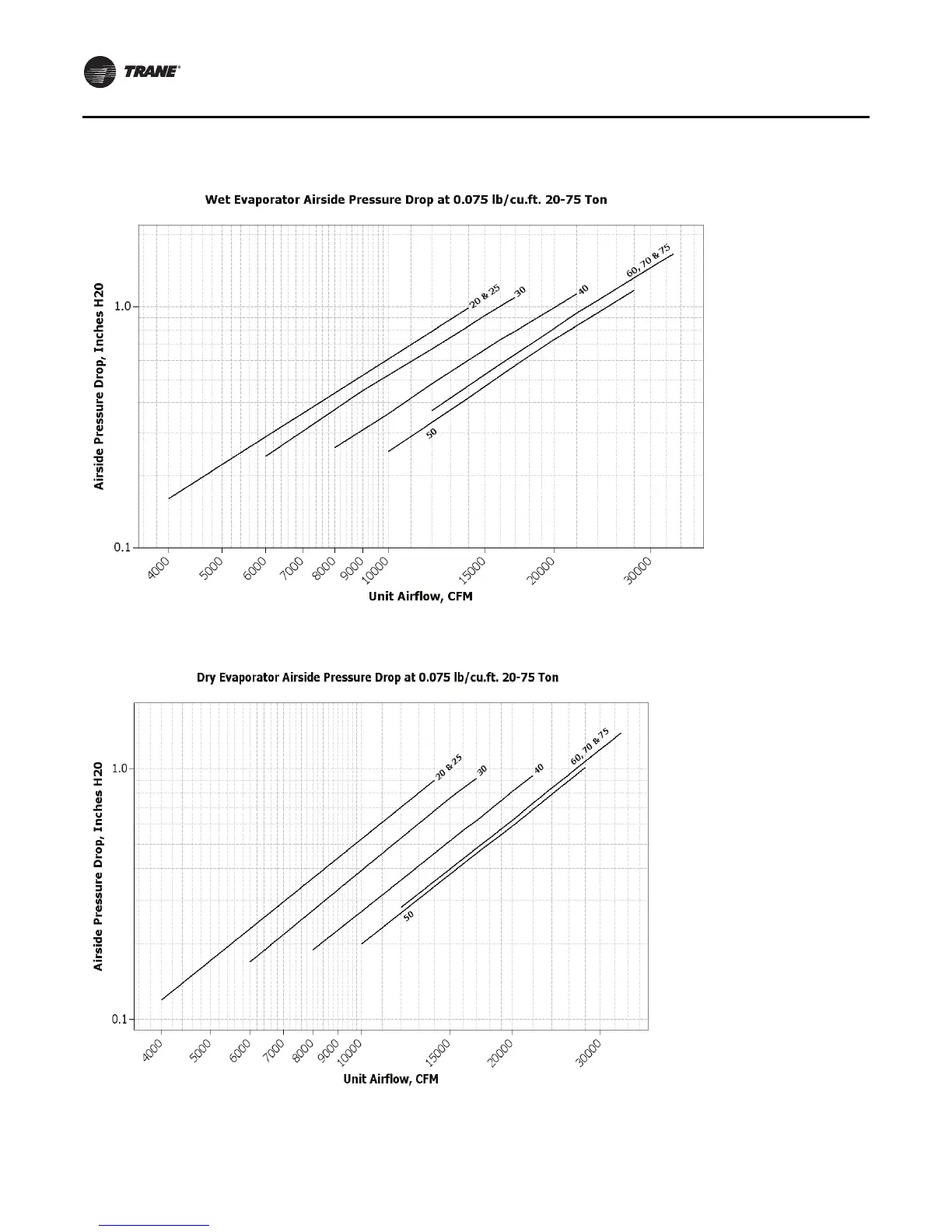

Figure 79. Wet airside pressure drop at 0.075 lb/cu.ft. 20 - 89 ton evaporator coil
Figure 80. Dry airside pressure drop at 0.075 lb/cu.ft. 20 - 89 ton evaporator coil

Trane IntelliPak Specifications

General

Refrigerant	R-410A
Compressor Type	Scroll
Voltage	208/230/460V, 3-phase
Type	Rooftop Unit
Airflow Configuration	Horizontal
Sound Level	Varies by model
Control System	Tracer
Dimensions	Varies with model
Weight	Varies with model
Heating Capacity	Optional electric or gas
