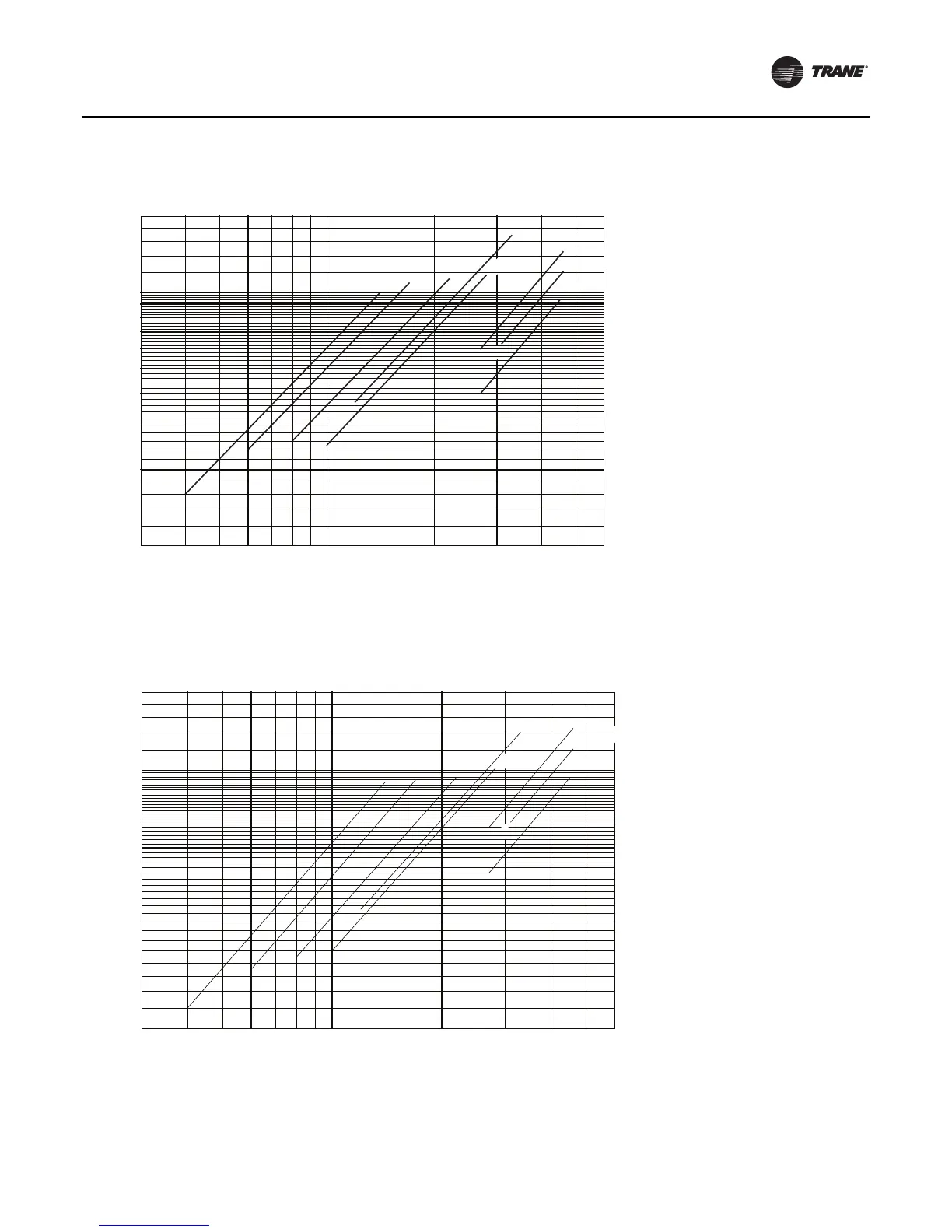

Figure 81. Wet airside pressure drop at 0.075 lb/cu.ft. 90 - 130 ton evaporator coil
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
2.0
90 High 115,130 T
105 T
90 T STD
60, 70, 75T
50 T
40 T
30 T
20-25 T
Evaporator Wet Airside Pressure Drop at 0.075 lb/cu.ft. 20-130 Ton
Airside Pressure Drop, Inches H
2
0
Unit Airflow, CFM
4000 6000 800010000 20000 40000 60000
Figure 82. Dry airside pressure drop at 0.075 lb/cu.ft. 90 - 130 ton evaporator coil
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
2.0
90 High 115,130 T
105 T
90 T STD
60, 70, 75 T
50 T
40 T
30 T
20-25 T
Evaporator Dry Airside Pressure Drop at 0.075 lb/cu.ft. 20-130 Ton
Airside Pressure Drop, Inches H
2
0
Unit Airflow, CFM
4000 6000 800010000 20000 40000 60000

Trane IntelliPak Specifications

General

Refrigerant	R-410A
Compressor Type	Scroll
Voltage	208/230/460V, 3-phase
Type	Rooftop Unit
Airflow Configuration	Horizontal
Sound Level	Varies by model
Control System	Tracer
Dimensions	Varies with model
Weight	Varies with model
Heating Capacity	Optional electric or gas
