Trane IntelliPak User Manual

Installation
RT-SVX36K-EN 27

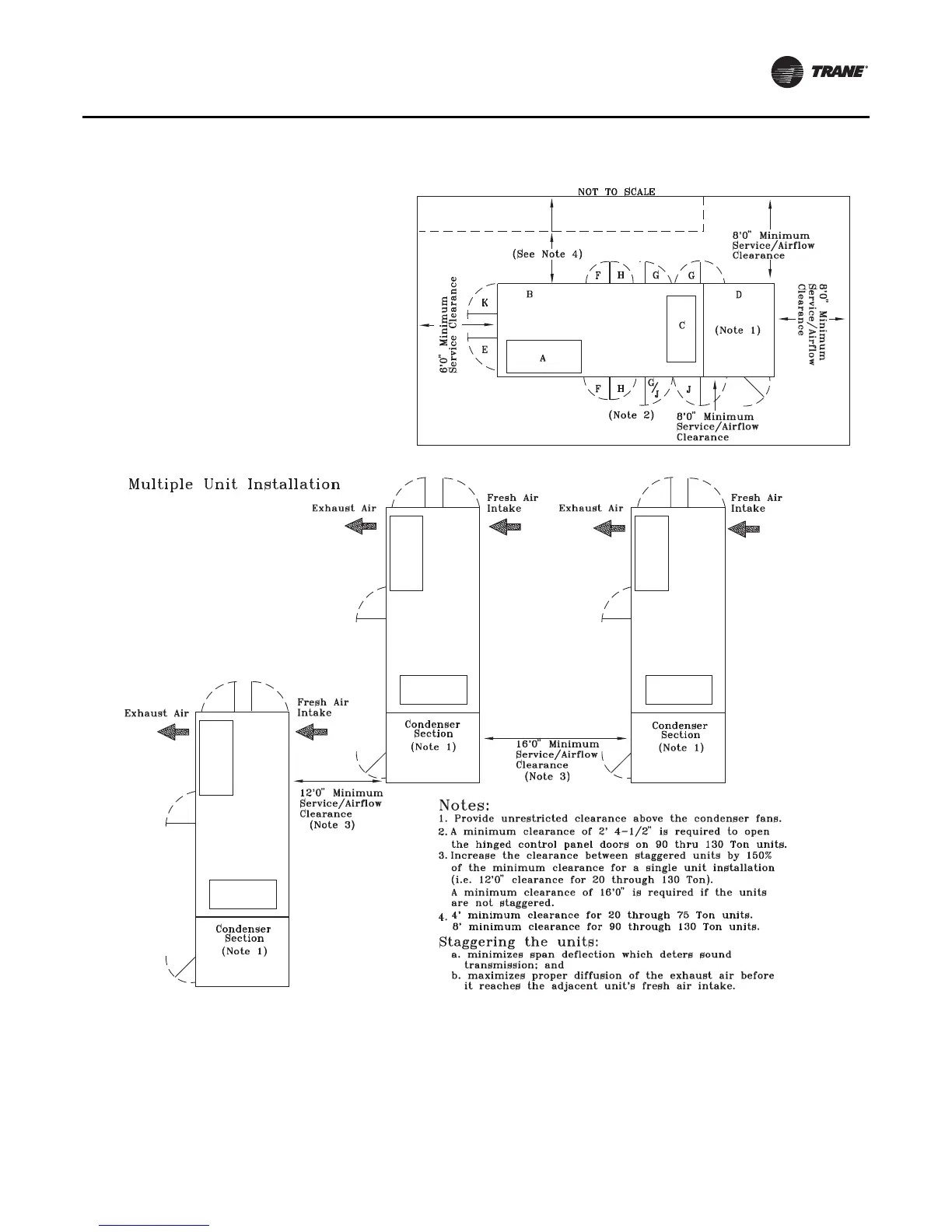

Figure 13. Minimum operation and service clearances for single and multiple unit installation
L
L
M
Return Air Opening
Outside Air Intake
Supply Air Opening
Condenser Section
Optional 2’10-3/4” Exhaust/Return Access Door (180° swing)
Hinged 2’10-3/4” Filter Access Door (180° swing)
Hinged 2’10-3/4” optional Heater or Final Filter Access Door (180° swing)
Hinged 2’10-3/4” Supply Fan Access Door (180° swing) (90-130 ton)
Hinged 2’4-1/2” Control Panel Door (180° swing) (90-130 ton)
Hinged 2’10-3/4” VFD Access Door (180° swing)
Hinged 2’10-3/4” Evap Condenser Access Door (180° swing)
Hinged 2’8” Control Panel Door (180° swing) (20-36 ton)
Hinged 3’6” Control Panel Door (180° swing) (40-89 ton)
A
B
C
D
E
F
G
H
J
K
L
M
=
=
=
=
=
=
=
=
=
=
=
=
Single Unit Installation
Legend

Trane IntelliPak Specifications

General

Refrigerant	R-410A
Compressor Type	Scroll
Voltage	208/230/460V, 3-phase
Type	Rooftop Unit
Airflow Configuration	Horizontal
Sound Level	Varies by model
Control System	Tracer
Dimensions	Varies with model
Weight	Varies with model
Heating Capacity	Optional electric or gas
