Trane IntelliPak

Installation
28 RT-SVX36K-EN

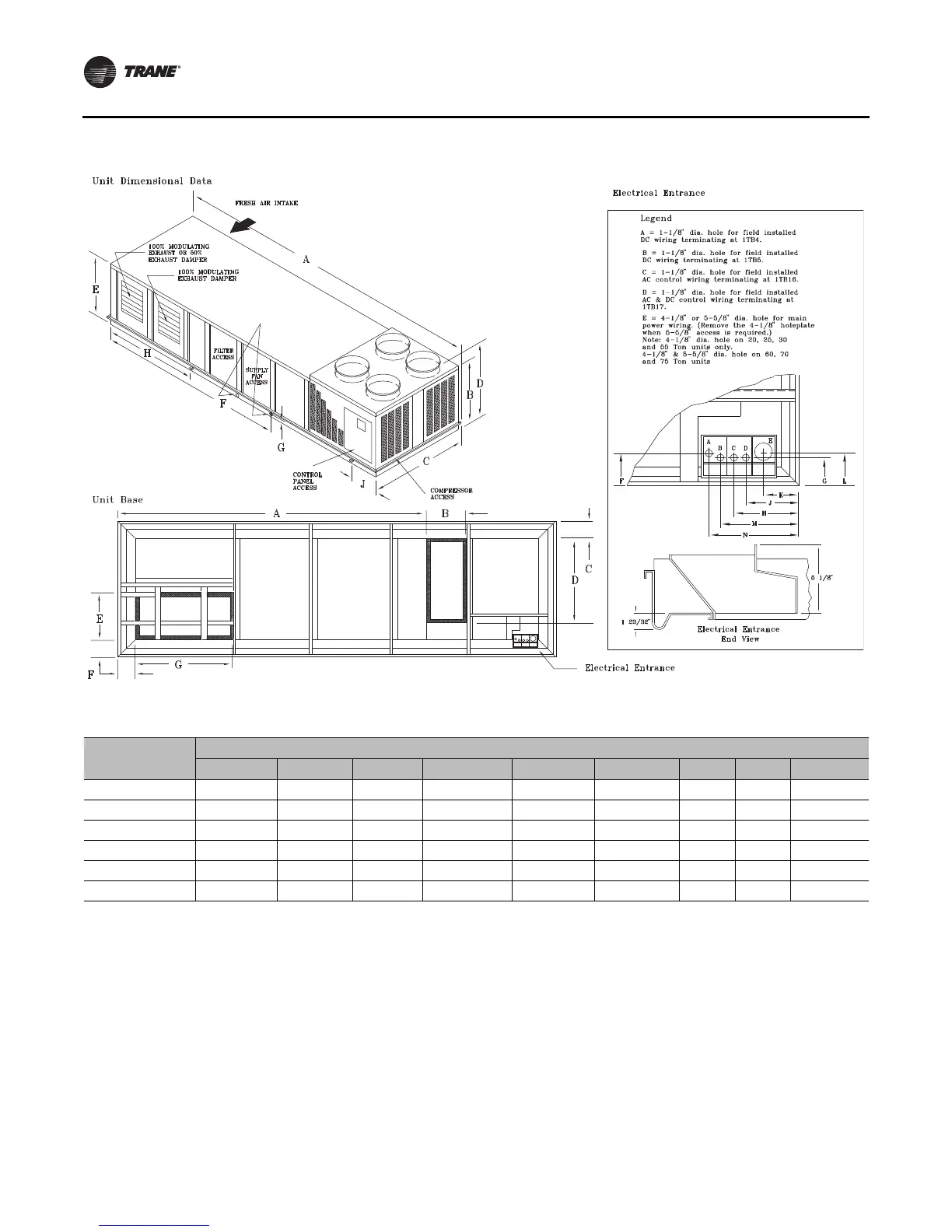

Figure 14. SAHL cooling-only units (20 - 75) Use Table 6, Table 7 and Table 8
1” CONDENSATE DRAIN
CONNECTION (Both Sides)
Table 6. SAHL cooling-only units (20 - 75)
Unit Size
Dimensions for SAHL
A B C D E F G H J
20 & 25 Ton 21’-9 3/4” 6’-9” 7'-6 1/2" 7’-3 1/4” 3'-9 5/16" 12'-6” 1" 7’ 1'-3 1/2”
30 Ton 21’-9 3/4” 6’-9” 7'-6 1/2" 7’-3 1/4” 4'-9 5/16" 12'-6” 1" 7’ 1'-3 1/2”
40 Ton 29’-8” 6’-9” 7'-6 1/2" 7’-3 1/4” 5'-9 5/16" 15'-11 1/8" 1" 8’ 2'-5”
50 Ton 29’-8” 6’-9” 7'-6 1/2" 7’-3 1/4” 6'-9 5/16" 15'-11 1/8" 1" 8’ 2'-5”
60 Ton 29’-8” 6’-9” 9'-8" 7’-3 1/4” 5'-9 5/16" 15'-11 1/8" 1" 8’ 2'-5”
70 & 75 Ton 29’-8” 6’-9” 9'-8" 7’-3 1/4” 5'-9 5/16" 15'-11 1/8" 1" 8’ 2'-5”
