Trane IntelliPak User Manual

Installation
RT-SVX36K-EN 29
Table 7. SAHL cooling-only units (20 - 75)
Unit Size
Dimensions for SAHL
A B C D
E F G
w/exhaust
fan
w/return
fan
w/
exhaust
fan
w/
return
fan
w/exhaust
fan
w/return
fan
20 - 30 Ton 14'-0 1/4" 2'-2 1/2" 11 3/4" 5'-7" 3'-4 3/8" 2'-9 15/16” 5 13/16" 28 5/8” 6'-6 15/16" 3'
40 - 50 Ton 16'-1 13/16” 2'-5" 11 3/4" 5'-7" 3'-4 3/8" 3' - 1 1/2” 5 13/16" 32 15/16” 7'-8 3/16" 3'-4”
60 Ton 16'-1 13/16” 2'-5" 1'-4 9/16" 6'-10 7/8" 4'-5 3/8" 4' - 2 1/2” 5 13/16" 26 7/16” 7'-8 3/16" 4'-5”
70 - 75 Ton 16'-1 13/16” 2'-5" 1'-4 9/16" 6'-10 7/8" 4'-5 3/8" 4' - 2 1/2” 5 13/16" 26 7/16” 7'-8 3/16" 4'-5”
Table 8. SAHL cooling-only units (20 - 75)
Unit Size
Dimensions
F G H J K L M N
20, 25, 30 & 50 Ton 8 7/32" 6 31/32" 15 21/32" 13 21/32" 9 17/32" 8 1/2" 18 1/16" 19 9/16"
40, 60, 70 & 75 Ton 8 3/4" 7 3/4" 17 7/8" 15 7/8" 9 29/32" 10 1/16" 20 13/32" 22 5/32"

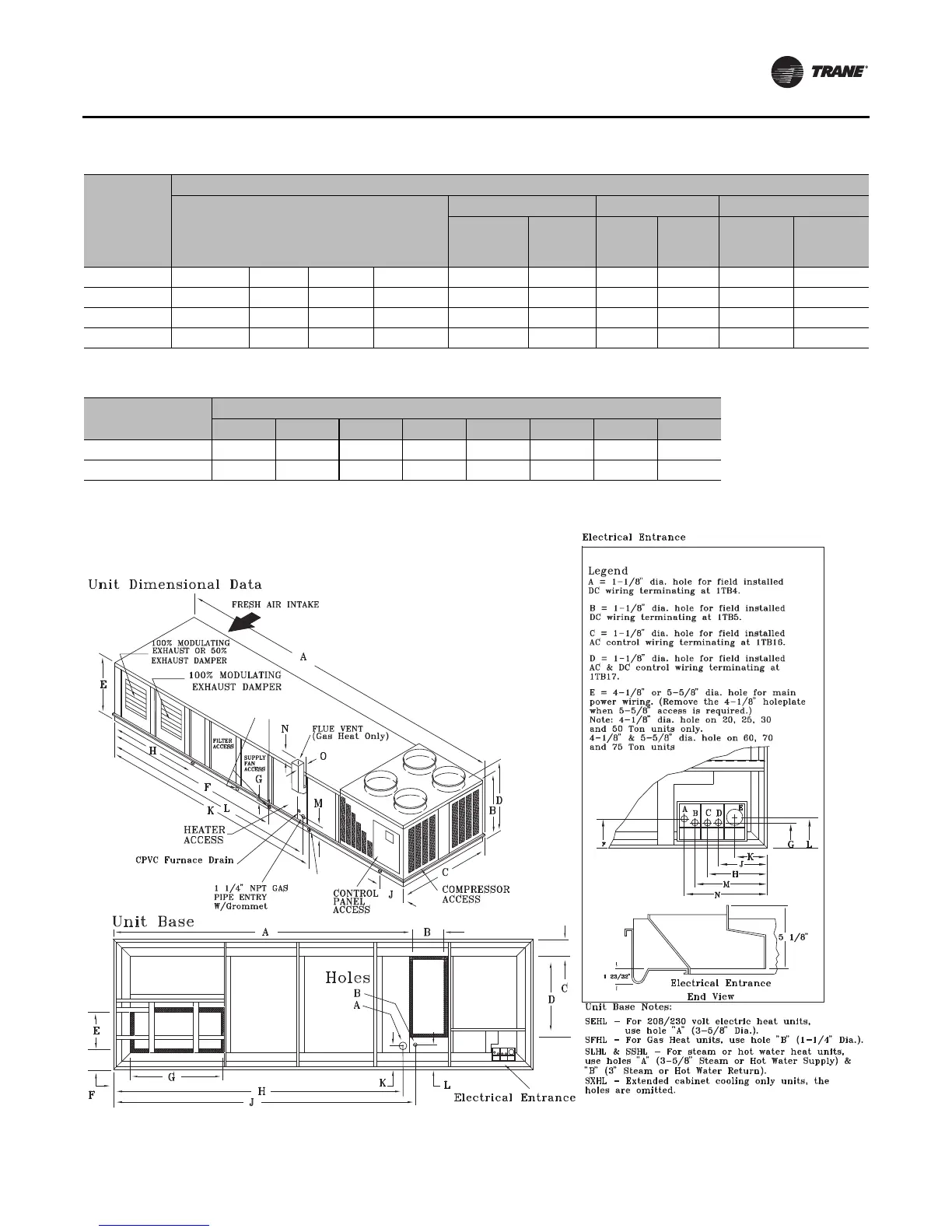

Figure 15. SEHL, SFHL, SLHL, SSHL, SXHL units (20 - 89 ton) use Table 9, Table 10 and Table 11.
DRAIN HOLE
1” NPT CONDENSATE
DRAIN CONNECTION (Both Sides)

Trane IntelliPak Specifications

General

Refrigerant	R-410A
Compressor Type	Scroll
Voltage	208/230/460V, 3-phase
Type	Rooftop Unit
Airflow Configuration	Horizontal
Sound Level	Varies by model
Control System	Tracer
Dimensions	Varies with model
Weight	Varies with model
Heating Capacity	Optional electric or gas
