Unità ad alta precisione Jupiter
Unità a espansione diretta
JDAC / JUAC / JDAV / JUAV / JDWC / JUWC / JDWV / JUWV
Taglie: 0115 – 0125 – 0133 – 0135 – 0150 – 0160
Unità ad acqua refrigerata
JDCC / JUCC / JDCV / JUCV
Taglie: 0020 – 0025 – 0030 – 0040 – 0060
PKG-SVX24B-IT
H H1

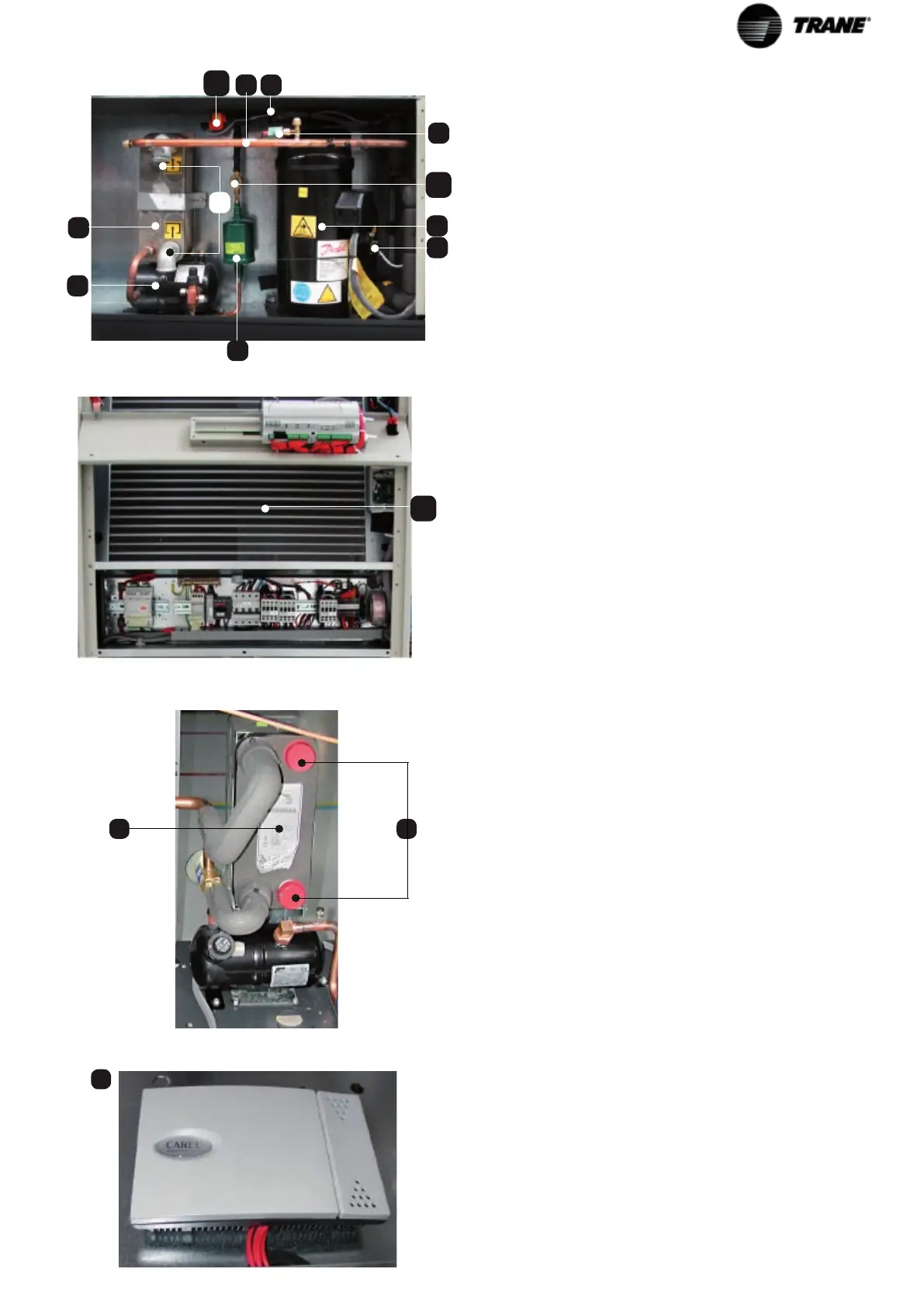

• G1 Compressor
• G2 High pressure switch
• G3 Schrader Valve
• G4 Low pressure transducer
• G5 Shut -off valve
• G6 Circuit Exit
• G7 Circuit entrance
• G8 Liquid receiver
• G9 Dehydration lter
• G10 Flow sight glass
• G11 Electronic thermostatic valve
• G12 Evaporating coil
H - Brazed plate heat exchanger (present on water cooled
units)
• H1 Input/output hydraulic circuit
I - Room temperature and humidity sensor
I
G12
G2
G
G3
G11
G10
G1
G9
G8
H
H1
G4
