Installation
22 CDUB-SVN001B-EN
Install Options
LON Option Installation
Symbio 800 system use a U60 LON module through the
USB connection instead of the LCI-C LLID.
1. Install the U60 LON module (MOD0297
7) on the DIN
rail on the door, put it at left side of Symbio 800.
2. Connect U60 LON module to Symbio800 by USB cable
whi
c
h provide by module, this cable could be connect
to any one of the four USB ports under the Symbio 800
controller.
3. Connect U60 LON module to BAS by shield cable and
term
in
al, the terminal is provided by module also.
Communication Option
Symbio 800 system supports up to 3 wireless interfaces at
same time, these are:
• Wi-Fi mobile APP for BAS interface
• Air-Fi BACnet via Zigbee for component
interface
• LTE 4G modem interface for remote communications
Wi-Fi Installation
Refer to BAS-SVN042*-EN for more information. For
mounting and wiring of Wi-Fi module (MOD03122):
1. Drill a 1.36 inch holes on the top of polycarbonate box,
sec
urely fasten the Wi-Fi module by gasket and nut
which provided by module.
2. Connect Wi-Fi module to Symbio 800 by USB cable
whi
c
h provide by module, plug USB MICRO-B side to
bottom of Wi-Fi module and USB-A side to any one of
the four USB ports under the Symbio 800 controller.
Air-Fi Installation
Refer to BAS-SVX040*-EN for more information. For
mounting and wiring of Air-Fi module (0185-0424-0100):
1. Drill a 0.87 inch holes on the top of polycarbonate box,
al
ign this hole with thread hole on the module,
securely fasten the Air-Fi module by M4 screw.
2. Connect Air-Fi module to Symbio 800 by Modbus
cable.
3. Remove the cover of module, connect 4 wires cable
i
nto 4 hosing connector and plug in Air-Fi module,
connect other side of cable into 2 hosing connector and
plug in IMC terminal on the Symbio 800 controller.

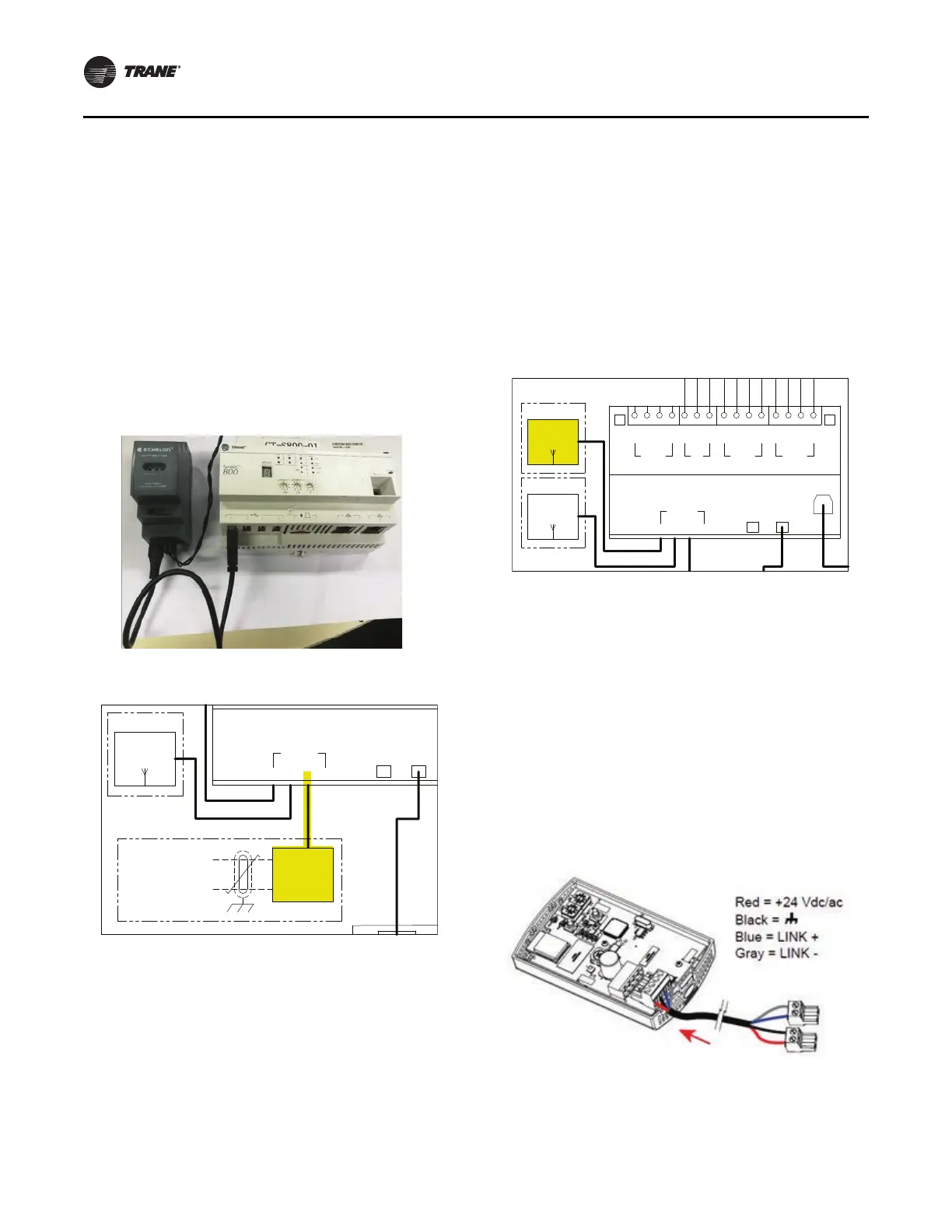

Figure 35. LON
Figure 36. LON wiring, ref. 50712792
1A22 SYMBIO 800 UNIT CONTROLLER
ETHERNET
12
USB
12 4
LON
1K47
INTERFACE
TRACER
OPTIONAL
COMMUNICATIONS
LT E
4Y2
MODEM
OPTIONAL
3
Figure 37. Wi-Fi wiring, ref. 50712792
Figure 38. Air-Fi connecting wiring harness
+24
G
-
+
IMC
RED
BLK
GRN WHT
RED
BLK BLU
GRY
VDC
+24
G
-
+
MACHINEBUS
VDC
P3
-
+
BACKNET
P1
-
+
-
+
MODBUS
P2
G
IMC
B
IMC
A
1A22 SYMBIO 800 UNIT CONTROLLER
SERVICE
ETHERNET
12
USB
1324
TOOL
WI-FI
4Y1
ANTENNA
OPTIONAL
USB1
LT E
4Y2
MODEM
OPTIONAL
WHT GRN
BLK
