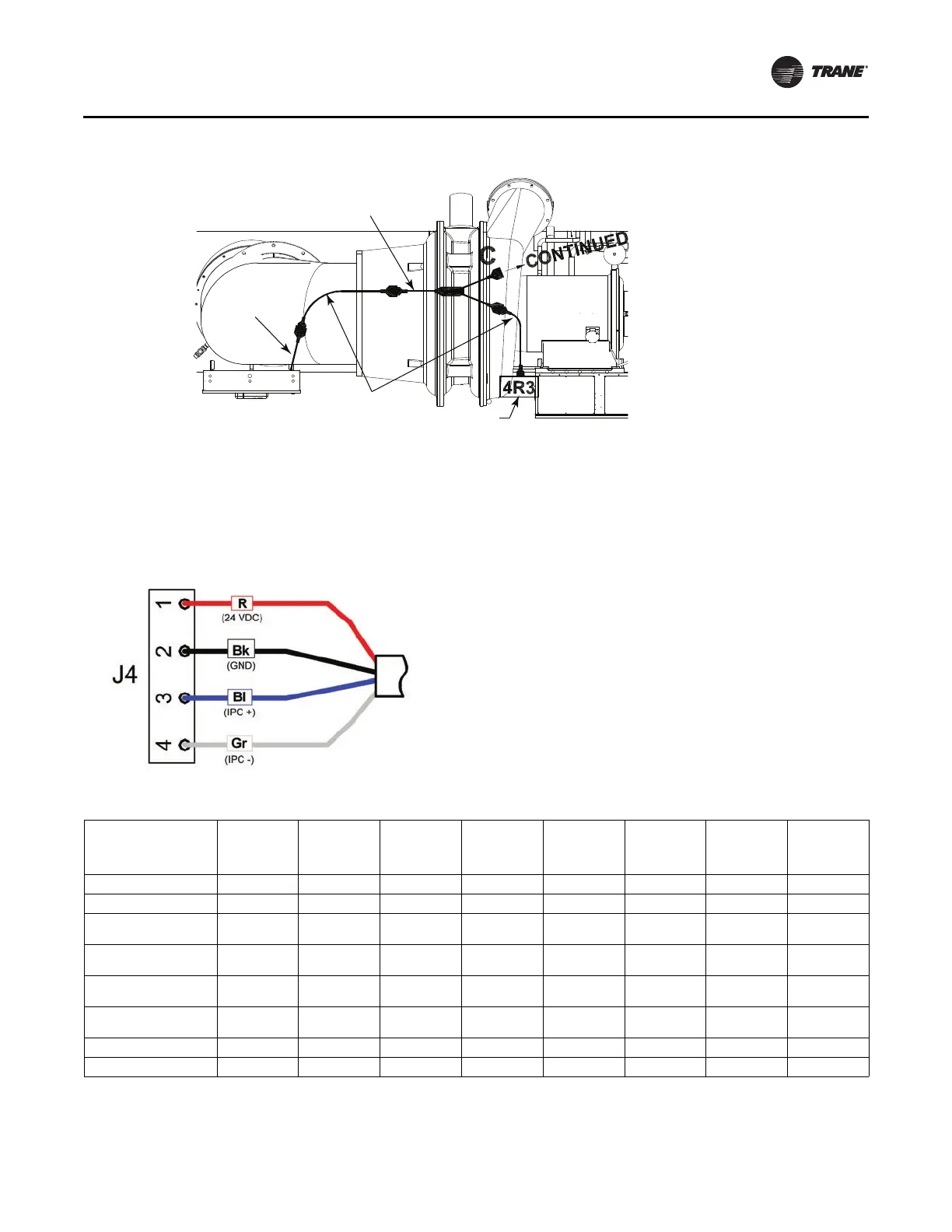

Figure 6. Sample of IPC cable routing
Control Panel
CAB01155
leads to female
CAB01149
short, male to female
CAB01146
short, male to 2 female
Transducer LLID
Getting Started
CDUB-SVN001B-EN 9
To connect the IPC bus to the control panel LLIDs, thread
the bus into the control panel via a knockout or other entry.
The CAB01155 connector has a female plug on one end
and four stripped leads on the other end. Attach the four
stripped leads to the power supply in the control panel.
Figure 7. Connecting the stripped leads to the power
supply
Notes:
• R - Red wire for 24 Volts direct current
• Bk - Black wire for ground
• Bl - Blue wire for IPC+
connection
• Gr - Gray wire for IPC- connection
M
ake sure all devices and LLIDs are connected toge
ther in
some way. Use the correct cables so that you don’t have
any open plugs when finished. Avoid placing wire ties
directly over plug connectors. This may press on the lock
mechanism and over time the plugs may release.
Table 2. Cables shipped for various options
CAB01146
branch M
(a)
to 2 F
500 mm
CAB01147
branch M to
2F
1000 mm
CAB01148
branch M to
3F
500 mm
CAB01149
extension M
to F
1000 mm
CAB01150
extension M
to F
2000 mm
CAB01152
extension M
to leads
1000 mm
CAB01154
extension M
to receptacle
1 M
CAB01155
extension F to
leads
1000 mm
Standard panel cables555109122
Actuator-stepper 1
Oil protection—full, low
pressure or high pressure 1 1
Heat recovery/aux
condenser 1 1 1
Hot gas bypass—electric
actuator 1 1
Hot gas bypass—pulse
actuator 1 1
Cold water reset 1 8
Enhanced protection 1 2 1 3
(a) The letters M and F represent male and female connectors.
