Chapter 3 Mounting the module
10 CNT-SVX09B-EN
Mounting recommendations
IMPORTANT
Leave the cover on when mounting the Tracer MP503 I/O module to
avoid the possibility of damaging the circuit board during installation.
Mounting recommendations are as follows:
• Mount the module in any direction, other than with the front of the
cover facing downward.
• Mount using the two
3
/
16
in. (4.8 mm) radius mounting holes provided
(see Figure 4). Mounting fasteners are not included.
• Attach the module securely so it can withstand vibrations of associ-
ated heating, ventilating, and air-conditioning (HVAC) equipment.
• If the module is mounted in a small enclosed compartment, complete
all wiring connections before securing the module in the compart-
ment.

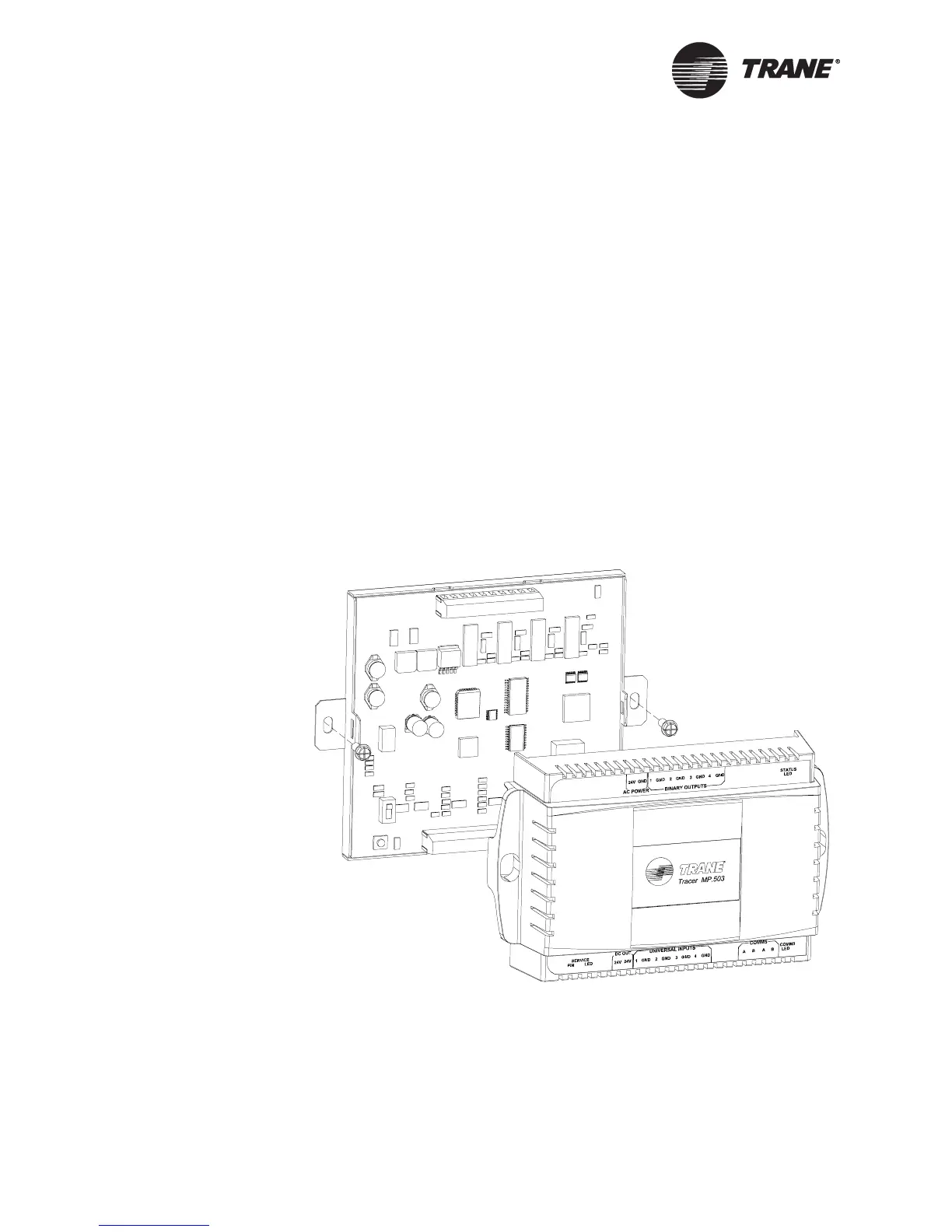

Figure 4. Mounting the Tracer MP503 I/O module
