Transcell Technology TI-1680 User Manual

41

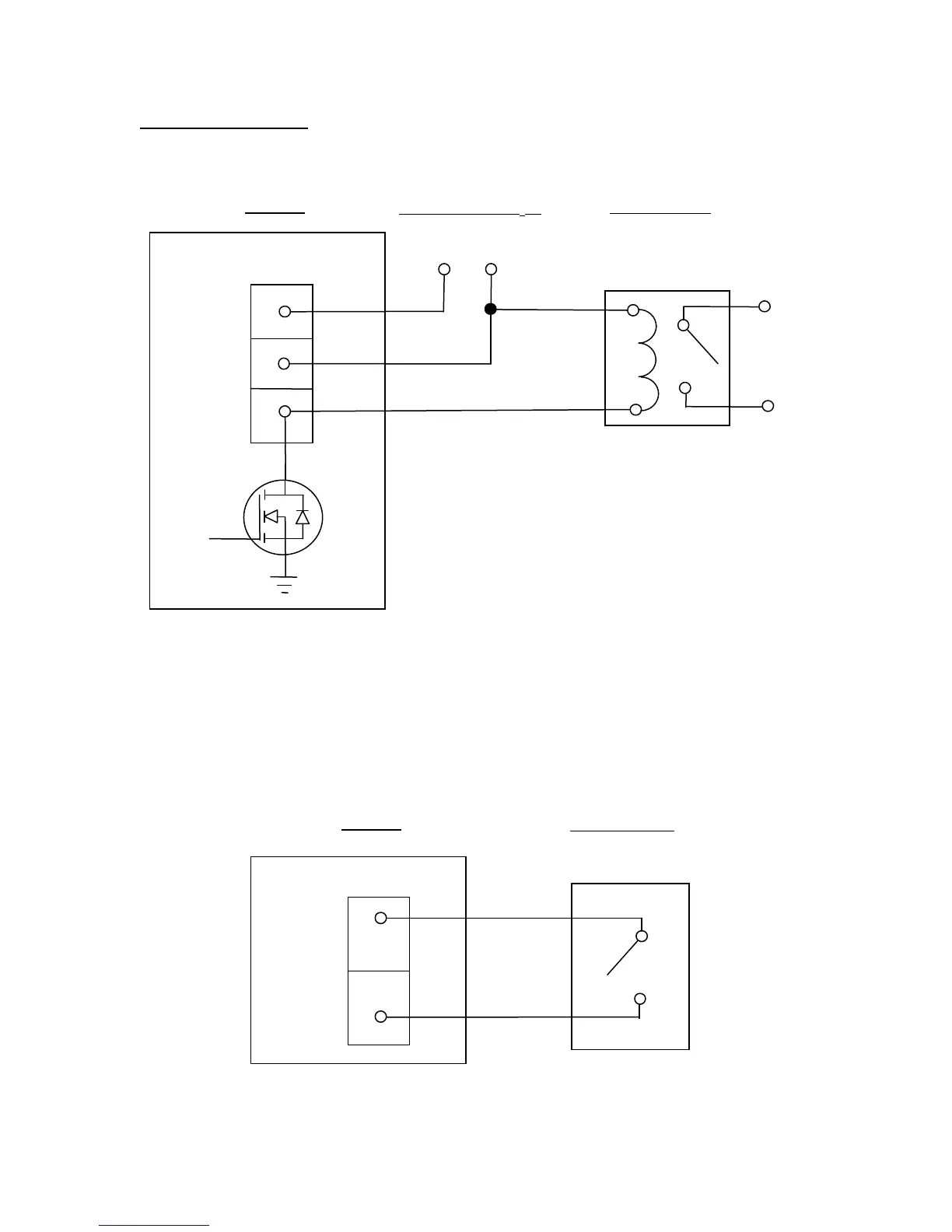

External Power Supply
NOTE: The CATCHDIODE connection is not required when using a solid state relay(s).
INPUTS
You can wire a remote switch (not included) to act as the batch start/stop switch. This can be used in
addition to - or instead of - the front panel UNITS key. A momentary, normally open switch is
recommended.
Indicator
J4
INPUT
GND
Remote Switch
n.o.
J4
OUTPUTx
GND
Indicator
External Relay
LOAD
Ctrl
External Power V
p
(*)
(*) External power source must be:
5V <V
p
≤ 24V
V- V+
CATCH
DIODE
