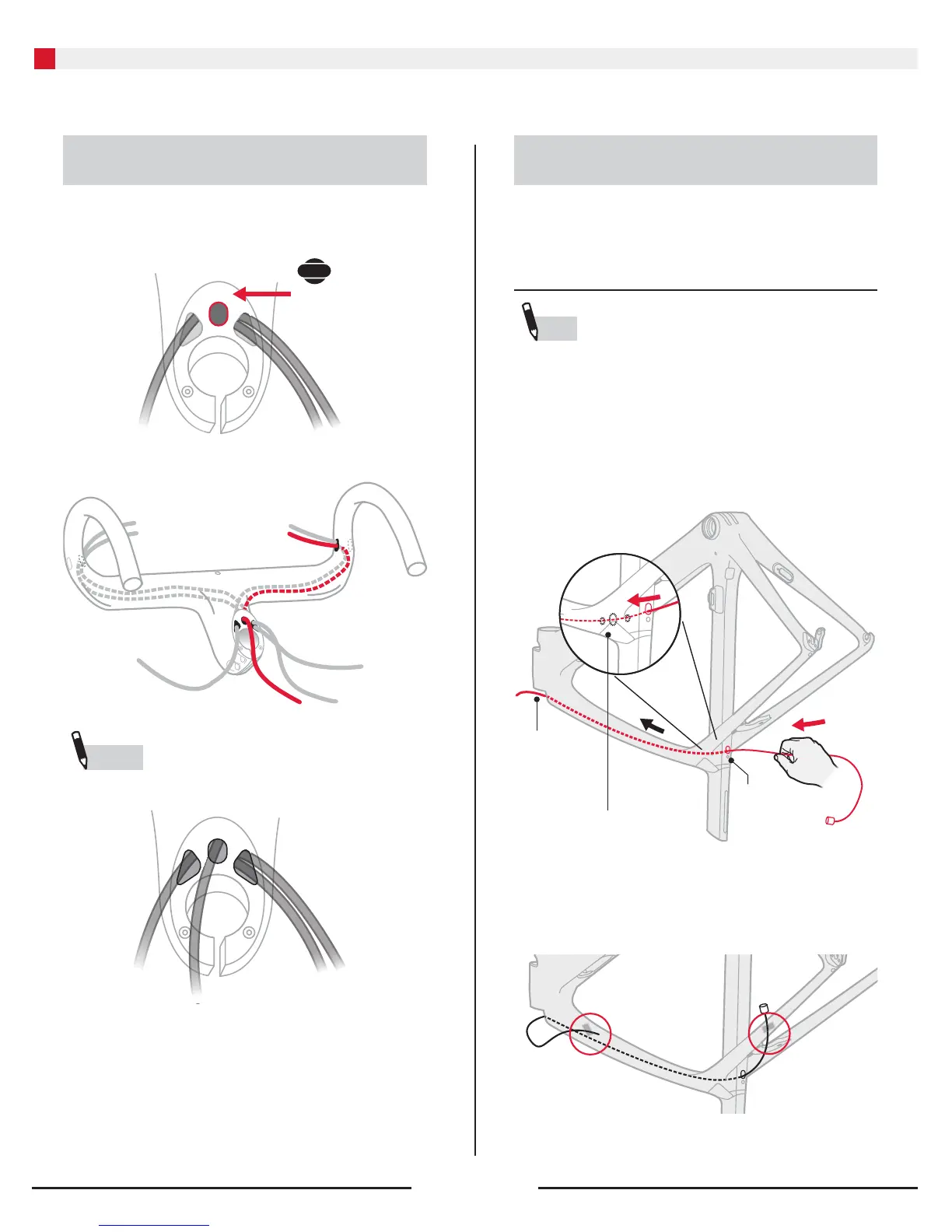

Installing the front brake
housing in the handlebar
1. Repeat the same steps as performed for the
front derailleur, but use the hole marked FBC.
FBC
FDC
RDC
RBC
FB
FRONT BRAKE
NOTE
Handlebar should now have FOUR HOUSINGS.
FBC
FDC
RDC
RBC
Installing the rear brake
guide cable
TOOLS AND MATERIALS REQUIRED
• Spare cable (1)
• Frame
• Tape
TIP
This step is easier if the frame is turned upside down.
1. Pass an installation cable through the hole in the
rear of the seat tube (rear brake housing stop
hole), the holes in the inner seat mast, and the top
tube. The cable should exit the cutout in the head
tube, to the rear of the upper headset bearing.
CUTOUT
HOLES IN THE INNER
SEAT MAST
BRAKE CABLE
REAR BRAKE
HOUSING
STOP HOLE
2. Lightly tape this cable in place while other guide
cables are installed.
1
INSTALLING HOUSINGS IN THE HANDLEBAR
