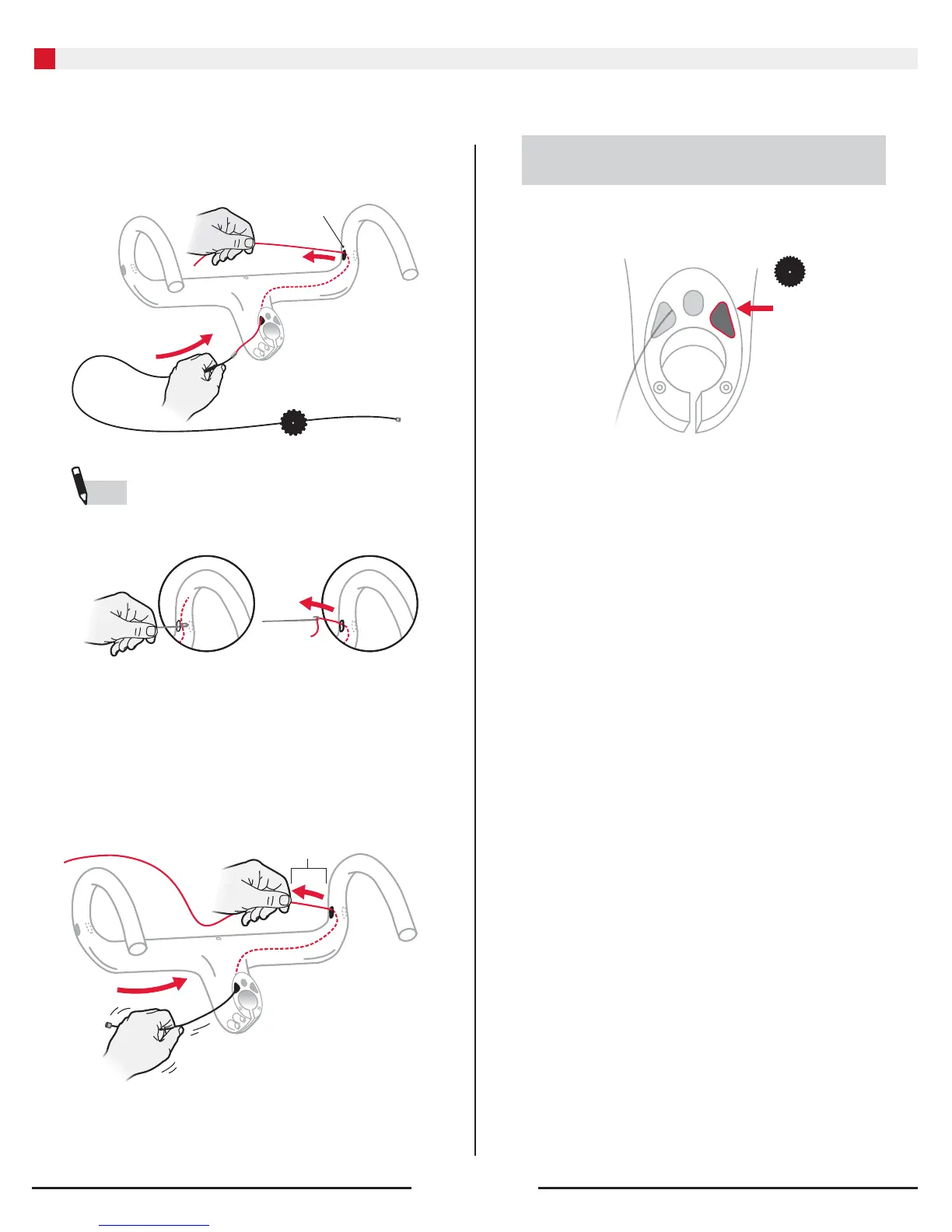

Trek Madone 2016 - Installing the rear derailleur Di2 wire in the handlebar

4. Push the installation cable through the bottom of the
stem toward the lever exit hole.
FDC
F D
LEVER EXIT HOLE
TIP
You may have to use a hook to pull the wire out.
HOOK
5. When the installation cable exits the lever exit
hole, use the cable to pull the Di2 wire through
the bar until 60mm of wire protrudes from the
handlebar. You can help ease it through by
wiggling it a bit.
7
INSTALLING Di2 CABLE IN THE HANDLEBAR
Installing the rear derailleur
Di2 wire in the handlebar
1. Repeat the same steps as performed for
front derailleur, but use the hole marked RDC.
FBC
FDC
RDC
RBC
R D
2. REAR DERAILLEUR
2. For installation of brake housings, see the
instructions for the mechanical build.
FDC
60mm
Installation sequence of the 2 wires. For brakes, see
mechanical build.
21
