INSTALLING AND ADJUSTING THE SEATPOST

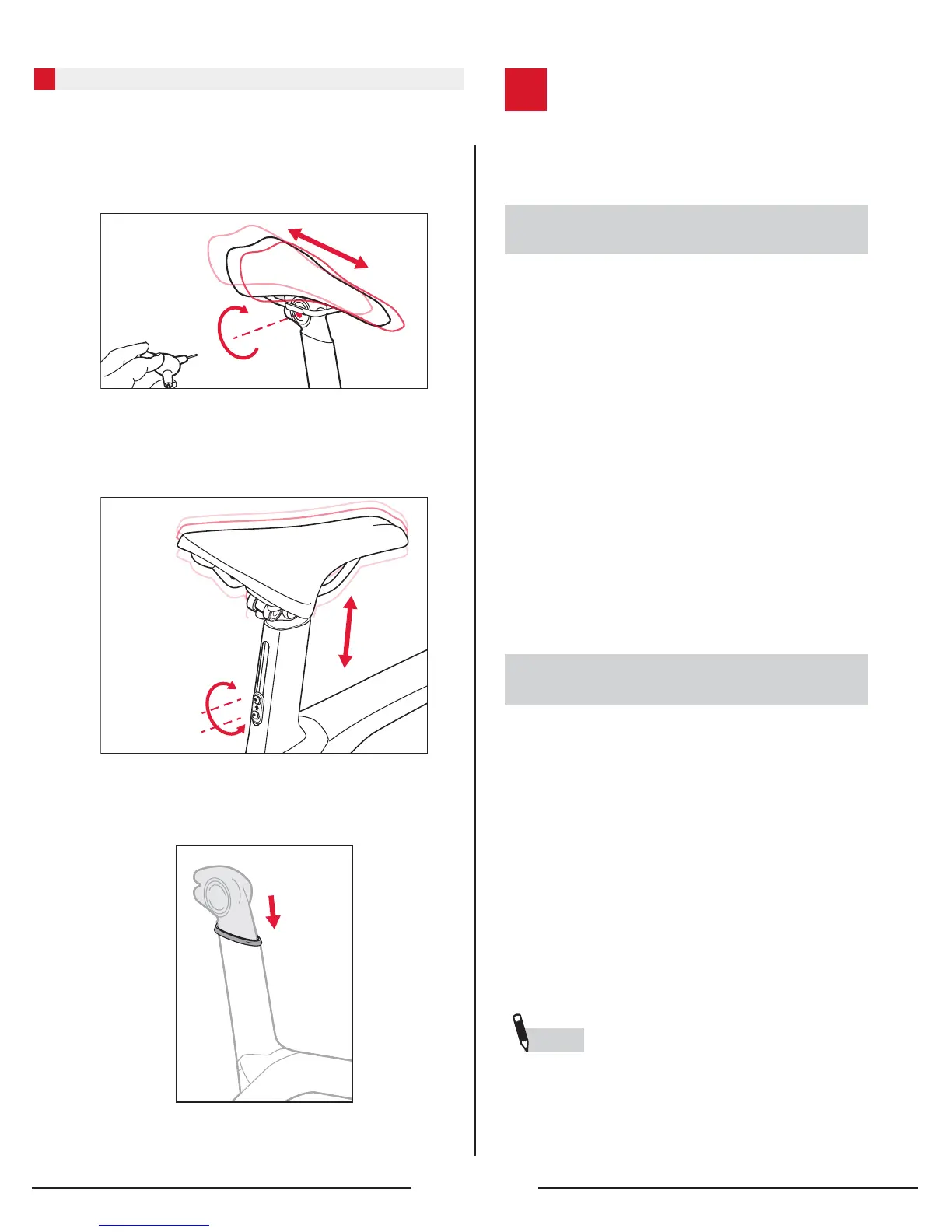

8. To adjust the fore/aft position of the saddle,
loosen the side rail clamp bolt, slide the saddle,
then re-tighten the bolt.
9. To adjust the seat height, loosen two seatpost
clamp bolts, adjust the height, and re-tighten
the bolts.
10. Slide the seatpost upper seal down the seatpost
until it meets the top of the mast.
11
MAKING BASIC FIT ADJUSTMENTS
We recommend that you go through a formal fitting
procedure at your Trek retailer before making any
changes to the bike fit.
Raising handlebar height
1. Remove the stem top cap bolt and cap. Do not
remove the steerer expander.
2. Loosen the stem pinch bolts.
3. Slide the stem up the steerer approximately
5-10mm and place the spacers on either side.
Align the spacers with the tabs in the stem.
4. With the tabs aligned, slide the stem down and
press firmly against the remaining spacers or
bearing top cap.
5. Reinstall the stem top cap and adjust.
6. Tighten the stem pinch bolts.
Lowering handlebar height
1. Remove the stem top cap bolt and cap. Do not
remove the steerer expander.
2. Loosen the stem pinch bolts.
3. Slide the stem up the steerer approximately
5-10mm and remove each side of the spacers.
4. With the tabs aligned, slide the stem down and
press firmly against the remaining spacers or
bearing top cap.
5. Reinstall the stem top cap and adjust.
NOTE
After the new position is confirmed, your retailer
can cut the steerer so that the round spacers are
not needed.
6. Tighten the stem pinch bolts.
