Trek Madone 2016 - 6 INSTALLING THE CONTROL CENTER (MECHANICAL)

6 INSTALLING THE CONTROL CENTER (MECHANICAL)
TOOLS AND MATERIALS REQUIRED
• Cable cutter
• Clear tubing
• Black grommet
• Mechanical Control Center
• Front derailleur
rubber grommet

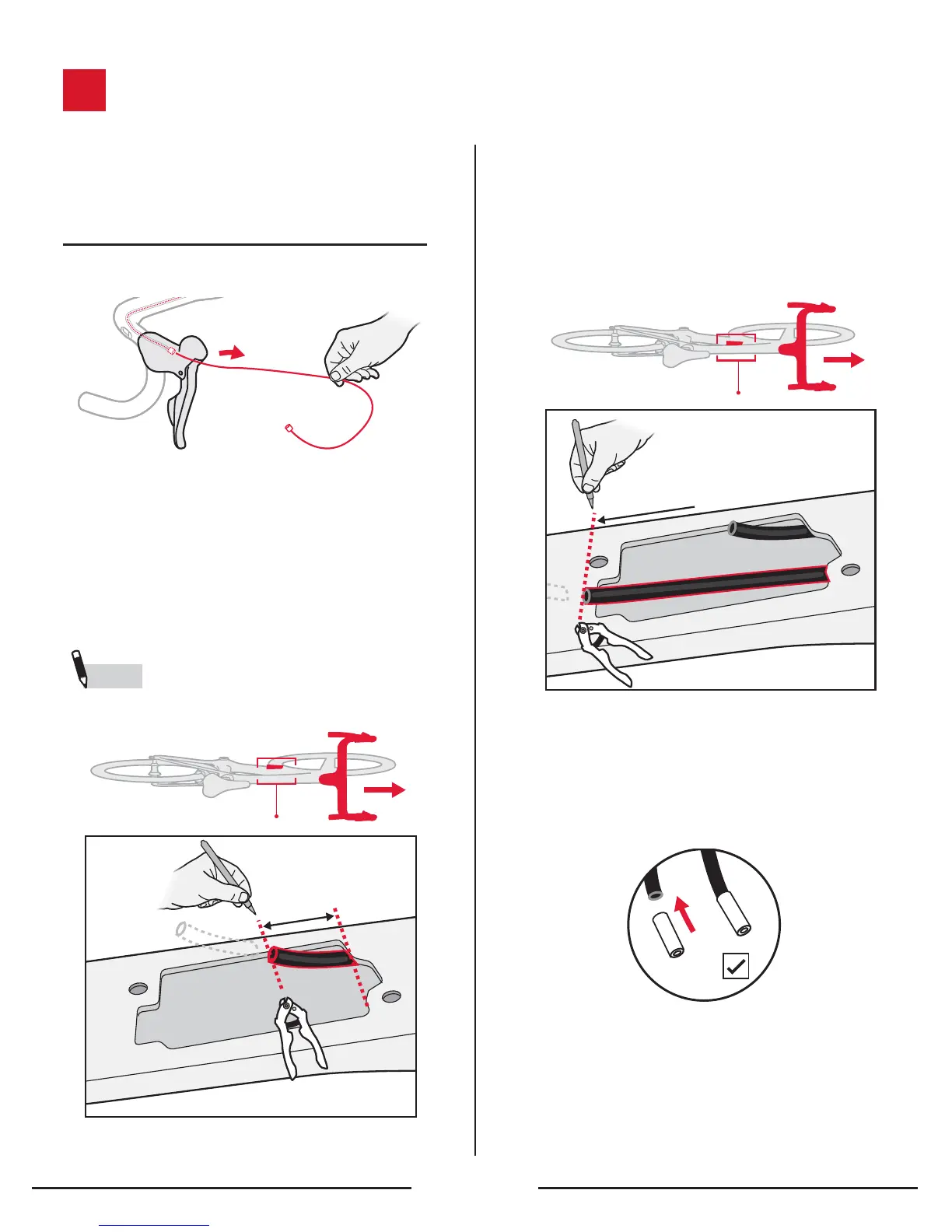

1. Pull the derailleur cables slightly out of the levers.
2. With the handlebar straight, measure and mark
35mm of front derailleur housing as it protrudes
from the top of the down tube cutout as shown.
3. Cut the front derailleur housing at the line.
NOTE
Protect frame when cutting housing.
2.
3.
35mm
Front derailleur
housing
4. With the handlebar straight, align the rear
derailleur housing with the rear of the down tube
cutout. Align your mark on the housing with the
rear edge of the hole.
5. Cut the rear derailleur housing at the line.
Rear derailleur housing
6. Fully seat the derailleur cable heads in the levers.
7. Install the end caps on each housing.
17
