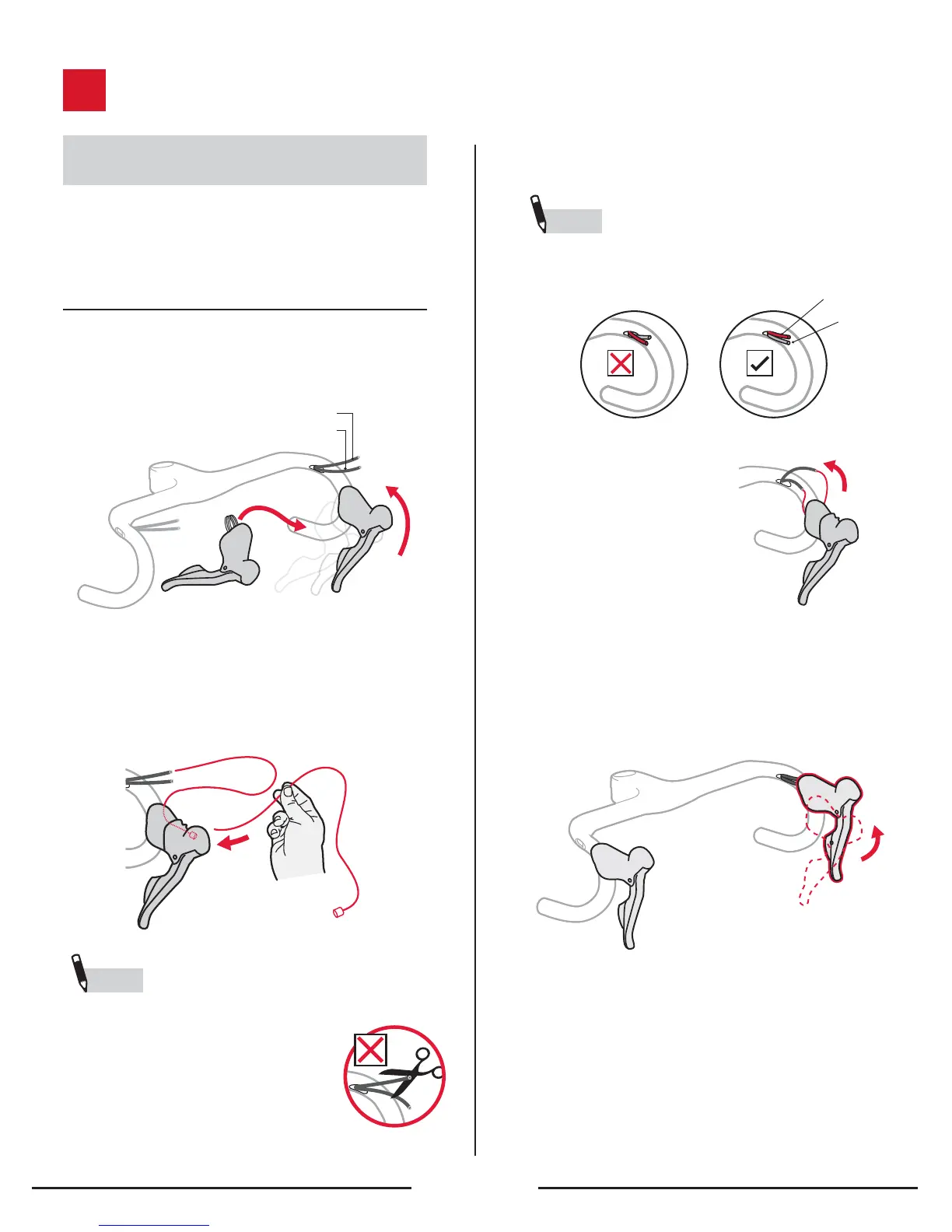

2 INSTALLING LEVERS ON THE HANDLEBAR
Installing the levers and cables
TOOLS AND MATERIALS REQUIRED
• Brake cables (2)
• Derailleurs (2)
• Levers (2)
• Handlebar
(with housings installed)
1. Slide the levers onto the handlebar, but stop
before they contact the housings. Do not tighten
the clamp bolts yet.
BRAKE HOUSING (TOP)
DERAILLEUR HOUSING (BOTTOM)
2. Install the front derailleur cable and front brake
cable into the left lever. Fully seat the cable heads.
NOTE
Do not cut the housing. 60mm should protrude
from the lever holes in the handlebar.
This is to aid in installing the housing
into the shifter. You will push the
housing back through the frame to
get it to the proper length.
3. Place end caps onto the lever end of
the derailleur housings.
NOTE
Ensure that the brake housing is on top of the
derailleur housing and not twisted.
DERAILLEUR
BRAKE
4. Pass all the cables into
the housings.
5. Place the housings into
the proper housing stops
on the levers.
6. Slide the levers to the preferred position.
If the housings do not pass freely through
the stem, lightly pull on the housing where
it comes out of the stem.
7. Tighten the lever clamps. At this point, the levers
are positioned on the handlebar, the housings
extend out of the stem, and the housings have
cables in them.
