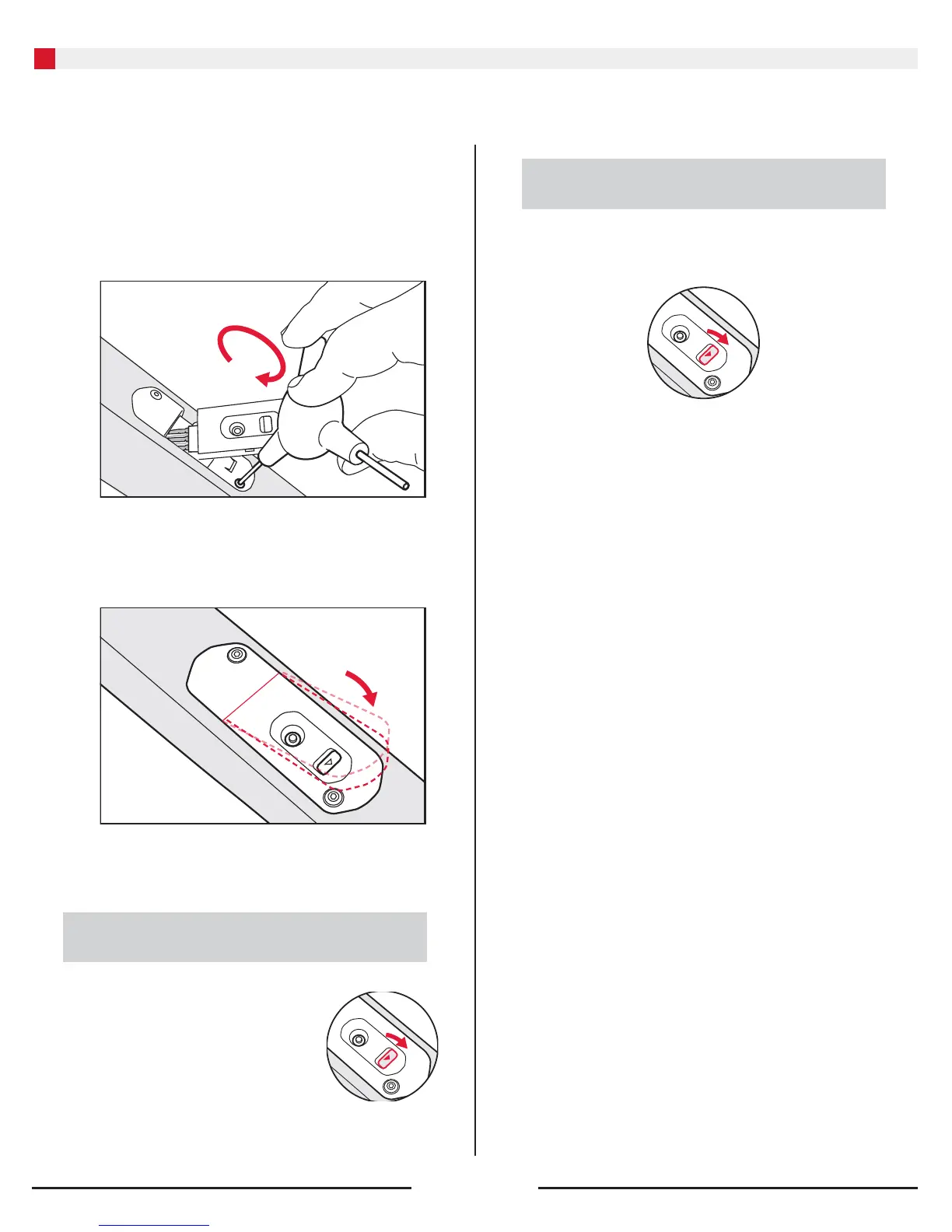

INSTALLING THE CONTROL CENTER (Di2)
5. Connect all the wires to the junction box. Note
that any wire can be connected to any connector.
6. With the two screws, attach the outer cage to
the frame.
7. Close the Control Center lid. Push the lid down
until it clicks into place.
Charging the battery
1. To open the holder, push the
back lever rearward (down).
This will expose the charging
port of the Di2 junction box.
You do not need to remove
the junction box from the
carrier or remove the carrier
from the outer cage.
Trimming the derailleurs
1. Hold the trim button down. You do not need to
open the junction box.
23
