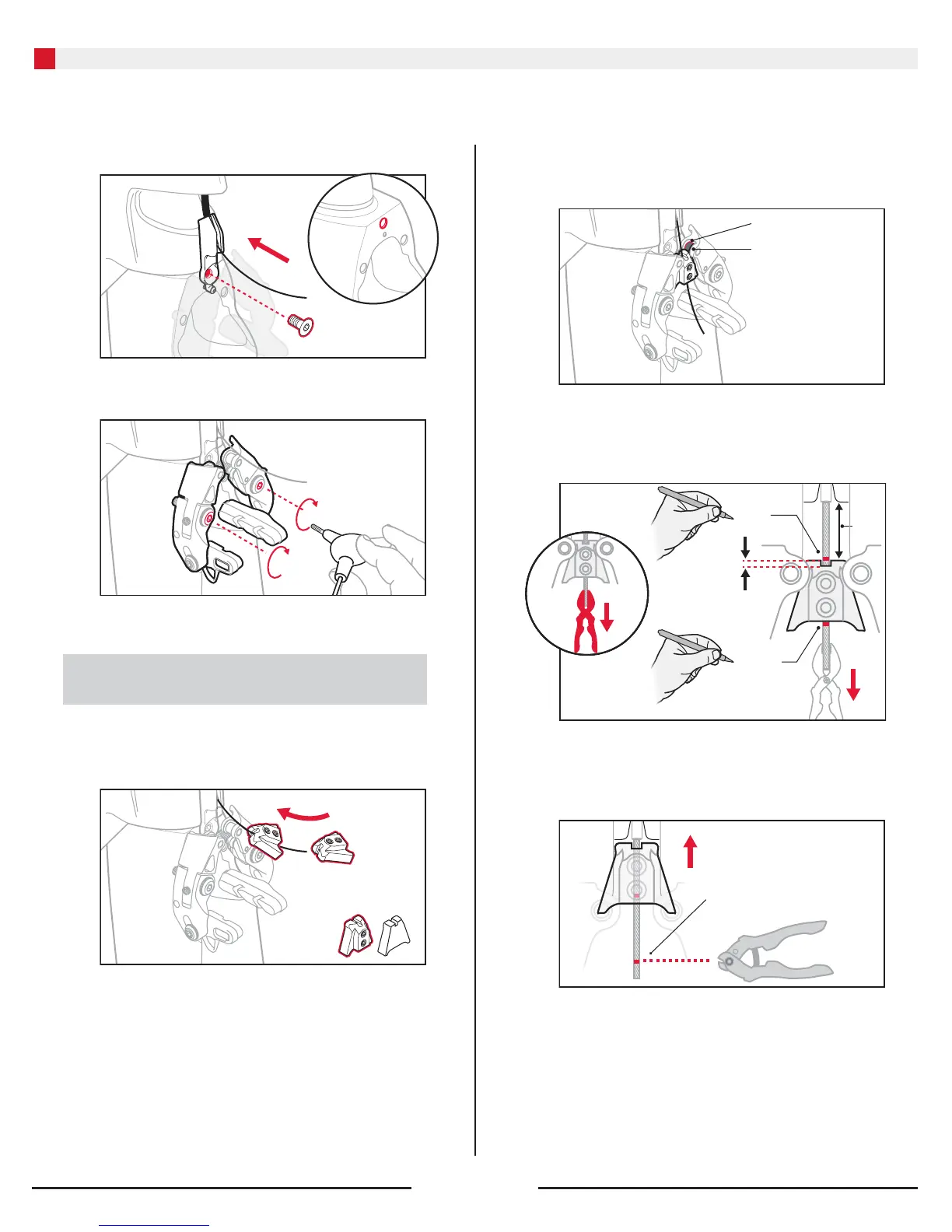

8. Install and tighten the M6 countersunk bolt.
9. Install the front brake arms and tighten.
Adjusting the front brake
1. Slide the brake wedge onto the cable.
Note: The wedges are labeled for their locations:
FB (front brake) and RB (rear brake).
4
INSTALLING THE FRONT BRAKE
2. Install the brake wedge in the rollers of the brake
arms. Make sure the wedge is aligned properly,
behind the small black washers.
ROLLERS
BLACK WASHERS
3. While you pull the cable tight, use a marker to
draw a line on the brake cable at both the top and
bottom edges of the brake wedge.
MARK
MARK
15 mm
1.5 mm
4. Remove the wedge from between the brake arms
and slide it up the cable. Cut the brake cable at
the bottom line.
CUT ON THE BOTTOM LINE
14
