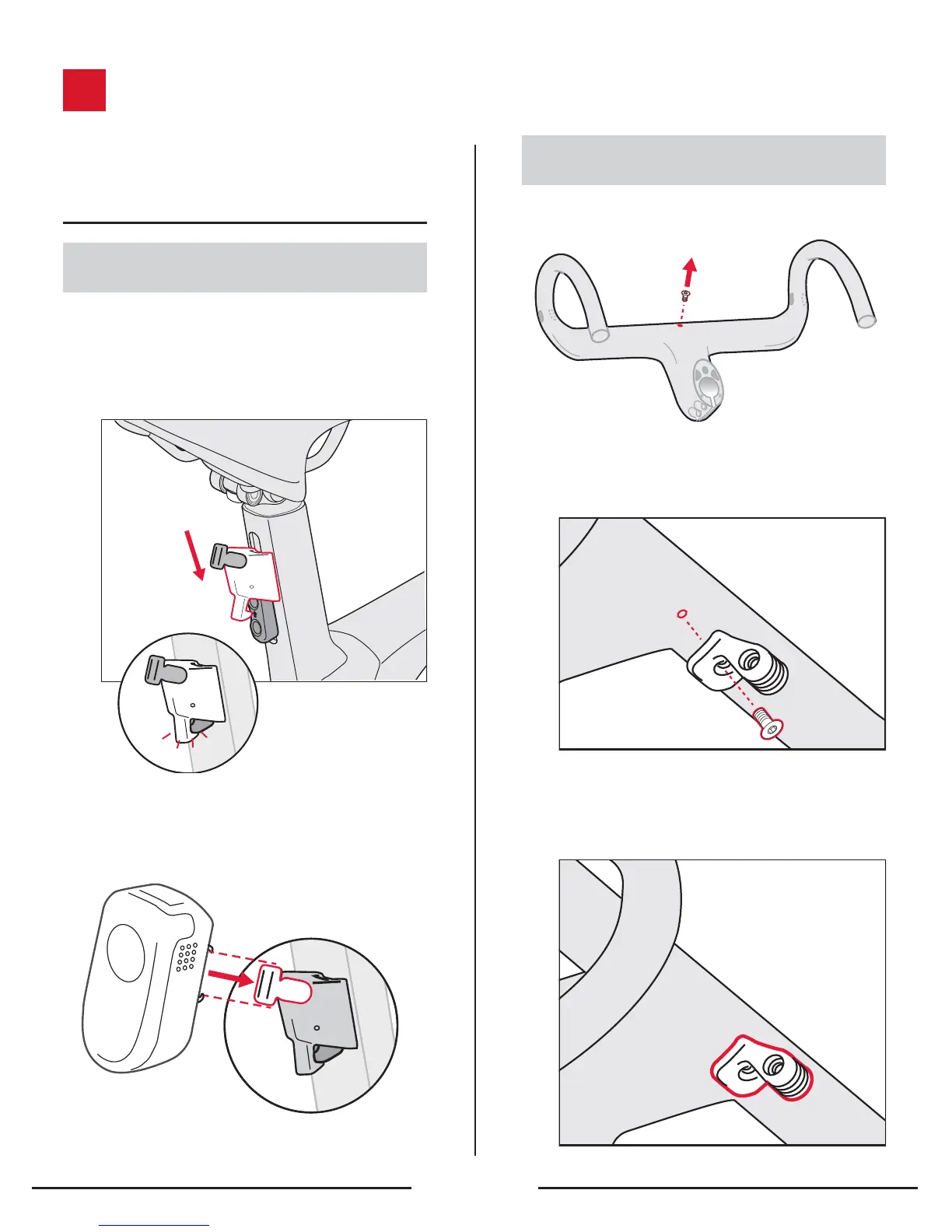

12 ATTACHING THE LIGHT OR REFLECTOR
TOOLS AND MATERIALS REQUIRED
• Light or reflector bracket
• Light or reflector
Attaching the rear bracket and
reector or light
1. Slide the light mounting bracket (or reflector
bracket) onto the seat post clamp. The edges of
the mounting bracket fit over the sides of the
seatpost clamp. The bracket lever should snap
over the bottom of the seatpost clamp.
SLIDING THE MOUNT
FINAL POSITION
2. Slide the light onto the mounting clip from left to
right until the retention tab clicks into place on the
back of the light.
SLIDING FROM
LEFT TO RIGHT
Attaching the front mount
1. Remove set screw from the handlebar.
2. Attach the appropriate base (reflector, Single
BlendR, or Double BlendR).
3. Attach the appropriate mount (reflector, light
or computer) to the pivot using the bolt and
nut provided.
