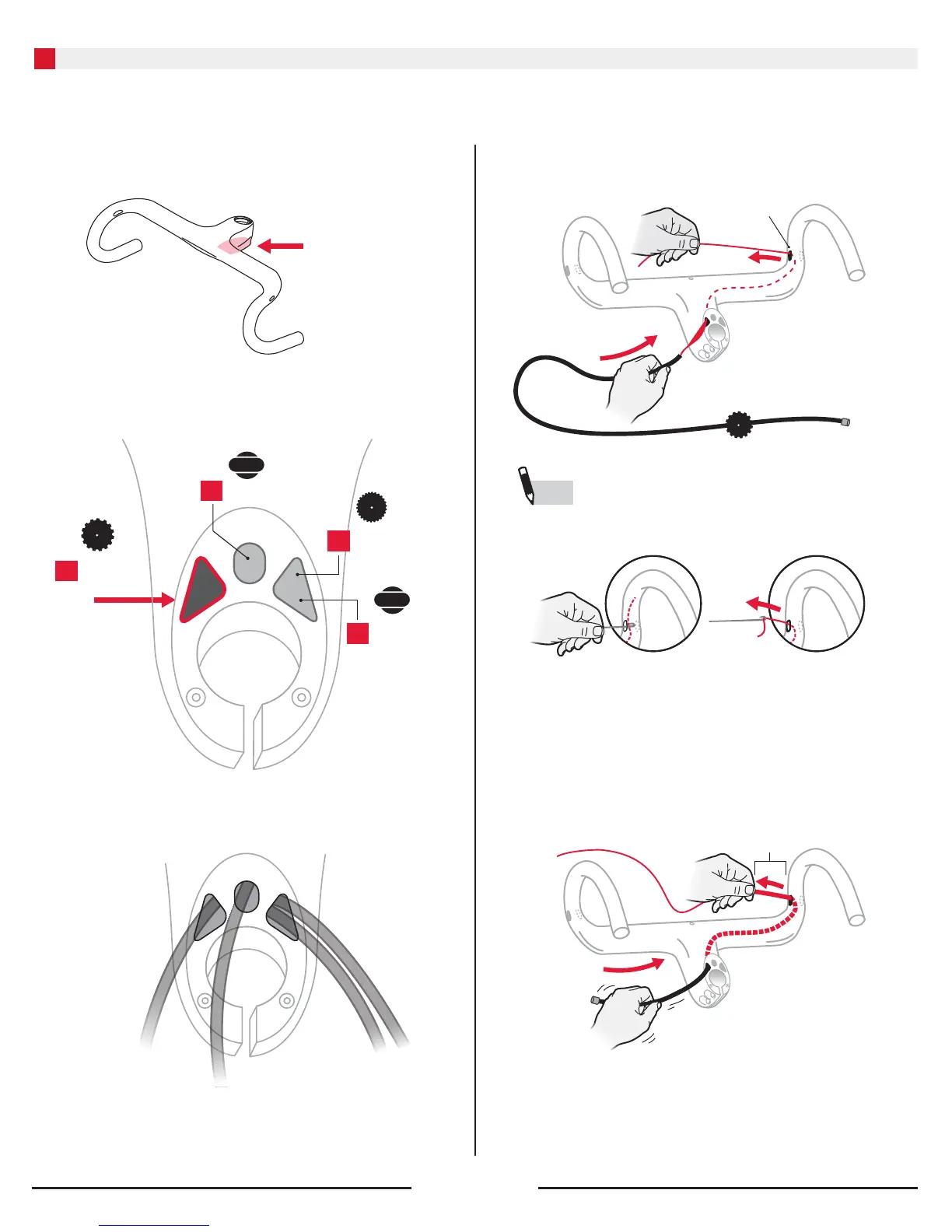

INSTALLING HOUSINGS IN THE HANDLEBAR
3. On the bottom of the stem, identify the correct hole for
the front derailleur (FD).
BOTTOM OF STEM
Installation sequence of the four housings.
4
2
3
R D
FB
RB
F D
FBC
FDC
RDC
RBC
1
REAR
DERAILLEUR
REAR
BRAKE
FRONT BRAKE
FRONT
DERAILLEUR
Stem after all four housings have been installed.
FBC
FDC
RDC
RBC
4. Push the installation cable through the bottom of the
stem toward the lever exit hole.
FDC
F D
LEVER EXIT HOLE
TIP
You may have to use a HOOK to pull the cable out.
HOOK
5. When the cable exits the lever exit hole, use the
cable to pull the housing through the bar until
60mm of housing protrudes from the handlebar.
You can help ease the housing through by
wiggling it a bit.
FDC
60mm
