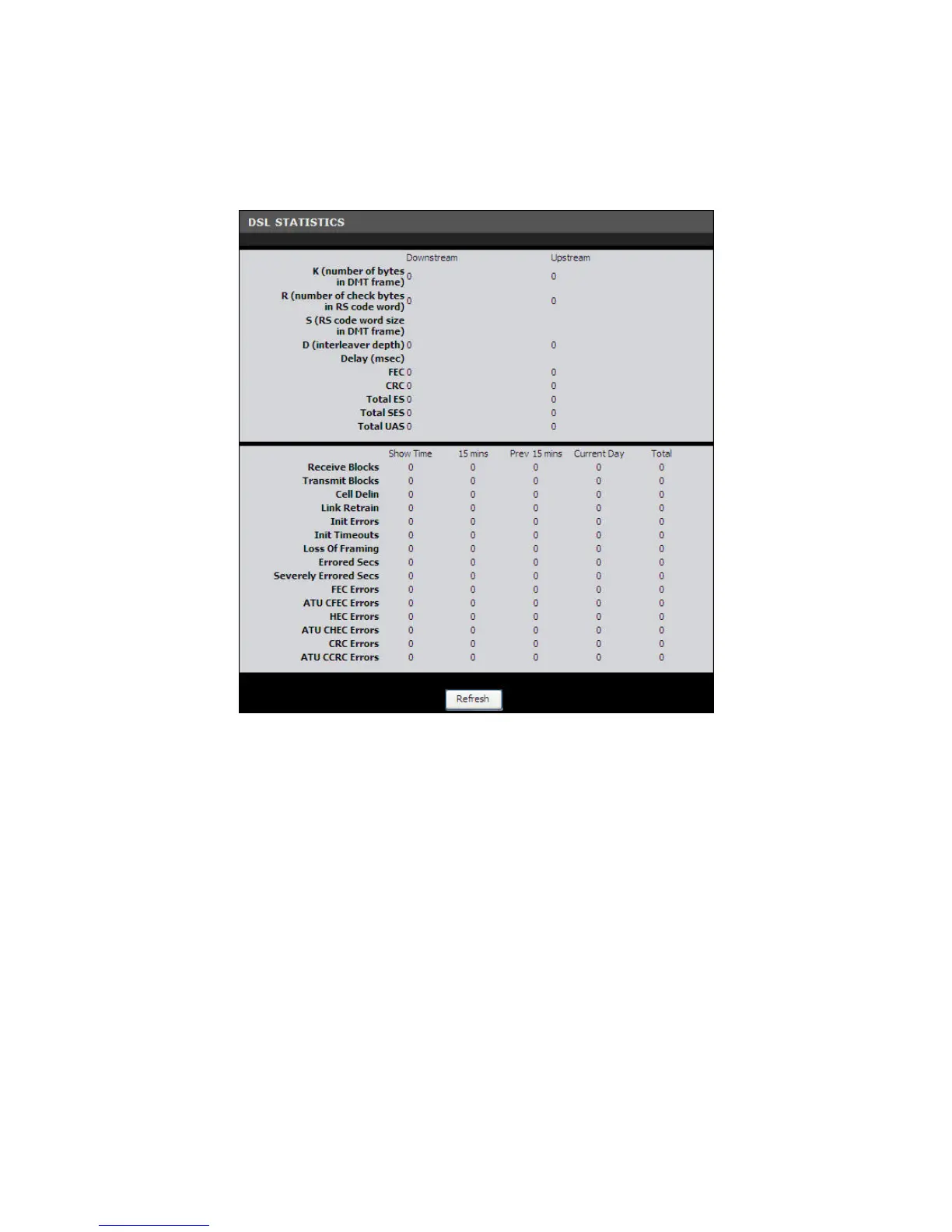

Statistics > DSL Statistics

This page displays the transmission and reception statistics of the DSL line.

To access the DSL Statistics page, click STATUS > Statistics > DSL Statistics or click

the DSL Statistics button.

Click the Refresh button to refresh the information.
