TRENDnet TEW-831DR User Manual

© Copyright 2020 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TEW-831DR
10

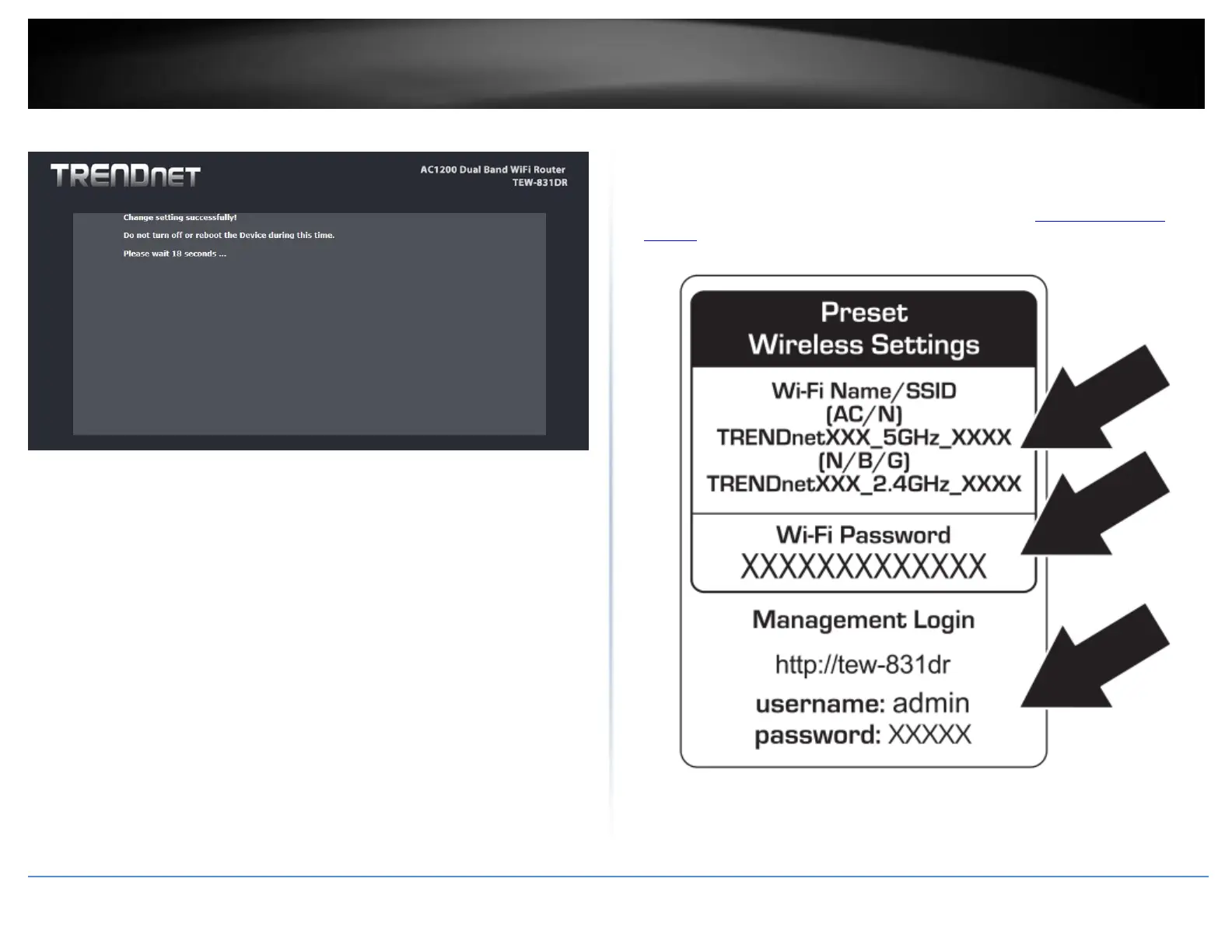

6. After confirming all your settings, click Finished to apply the settings.
Please wait while changes are being applied. Click Back to go back to previous page, or
Cancel to go back to the router login page.
Note: For added security, the router wireless network is pre-encrypted with its own
unique wireless network security key. You can find the unique network security key and
the pre-assigned network name (SSID) on a sticker on the side of the router and on a
label on the bottom of the router. You will need this information to connect to the
router. To change the network security key, refer to page 19 “Secure your wireless
network”. If the router is reset to factory defaults, the wireless encryption will reset to
the network security key printed on the product labels of the router.

TRENDnet TEW-831DR Specifications

General

Product color	Black
Cables included	LAN (RJ-45)
Quick installation guide	Yes
Certification	FCC, IC
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
DSL WAN	No
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1200 Mbit/s
VPN support	FTP/TFTP/SIP/RTSP/IRC/H.323
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Receiver sensitivity	802.11a: -75 dBm @ 54Mbps 802.11b: -90 dBm @ 11Mbps 802.11g: -72 dBm @ 54Mbps 802.11n (2.4GHz): -72 dBm @ 300Mbps 802.11n (5GHz): -72 dBm @ 867Mbps 802.11ac: -61 dBm @ 867Mbps
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antennas quantity	4
Antenna gain level (max)	5 dBi
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2
Number of products included	1 pc(s)
Ethernet LAN (RJ-45) ports	3

Weight and Dimensions

Depth	239 mm
Width	155 mm
Height	30 mm
Weight	228 g
