TRENDnet TEW-831DR User Manual

© Copyright 2020 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TEW-831DR
56

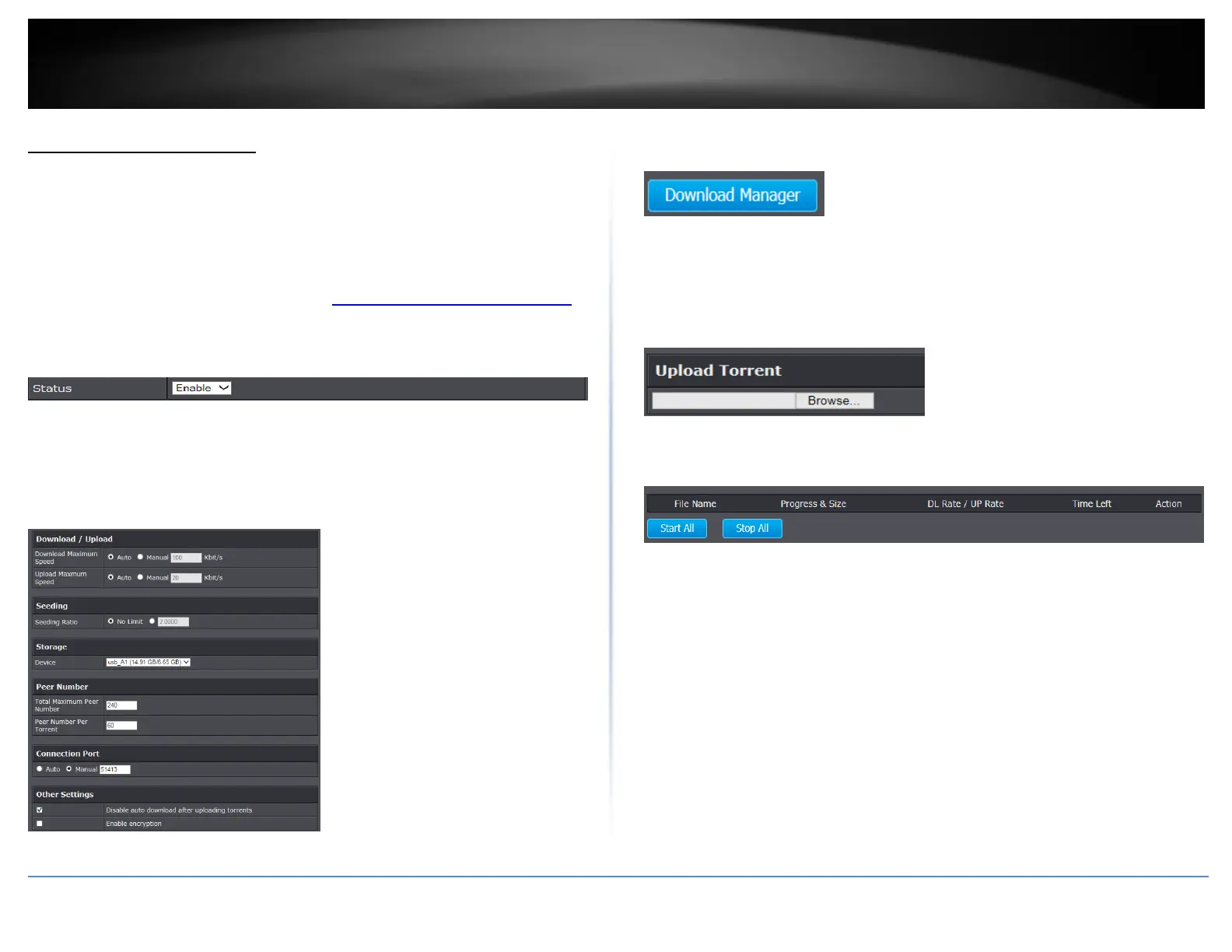

BitTorrent Client Settings
Advanced > USB > BitTorrent
The router has an integrated BitTorrent client that can be used for downloading torrents
directly to the external USB storage device connected to one of the router's USB ports.
You can set parameters such as the maximum upload/download speeds, peer number,
and connection port.
1. Log into your router management page (see “Access your router management page”
on page 10).
2. Click on Advanced and click on USB, then click on BitTorrent.
3. Click the Status drop-down list and select Enable. Then click Apply.
4. This page allows you to configure the maximum bandwidth limits, seeding ratio, max
peer number and peer number for peers, connection port, and enable/disable
encryption. After you have completed your configuration changes click Apply. Commit
your changes to the router by clicking on Apply/Discard Changes in the left-hand menu,
and click Apply & Reboot.
5. After you have configured your client settings. Click Download Manager at the top of
the page to manage your torrent downloads.
6. You can add new torrent files to the list under Upload Torrent by clicking Browse, and
navigating to the location of the torrent file and selecting it. Once you have selected the
torrent file, click Add to add the torrent to your download list.
Note: You can continue to add more torrent downloads by clicking Browse and selecting
each file one at a time.
7. The torrent download list will allow you to Start All or Stop All downloads. The Action
section will allow you to delete or remove the specified torrent download.
Note: You can click the Settings button at the top to return to the router management
page.

TRENDnet TEW-831DR Specifications

General

Product color	Black
Cables included	LAN (RJ-45)
Quick installation guide	Yes
Certification	FCC, IC
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
DSL WAN	No
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1200 Mbit/s
VPN support	FTP/TFTP/SIP/RTSP/IRC/H.323
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Receiver sensitivity	802.11a: -75 dBm @ 54Mbps 802.11b: -90 dBm @ 11Mbps 802.11g: -72 dBm @ 54Mbps 802.11n (2.4GHz): -72 dBm @ 300Mbps 802.11n (5GHz): -72 dBm @ 867Mbps 802.11ac: -61 dBm @ 867Mbps
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antennas quantity	4
Antenna gain level (max)	5 dBi
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2
Number of products included	1 pc(s)
Ethernet LAN (RJ-45) ports	3

Weight and Dimensions

Depth	239 mm
Width	155 mm
Height	30 mm
Weight	228 g
