TRENDnet TEW-831DR User Manual

© Copyright 2020 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TEW-831DR
38

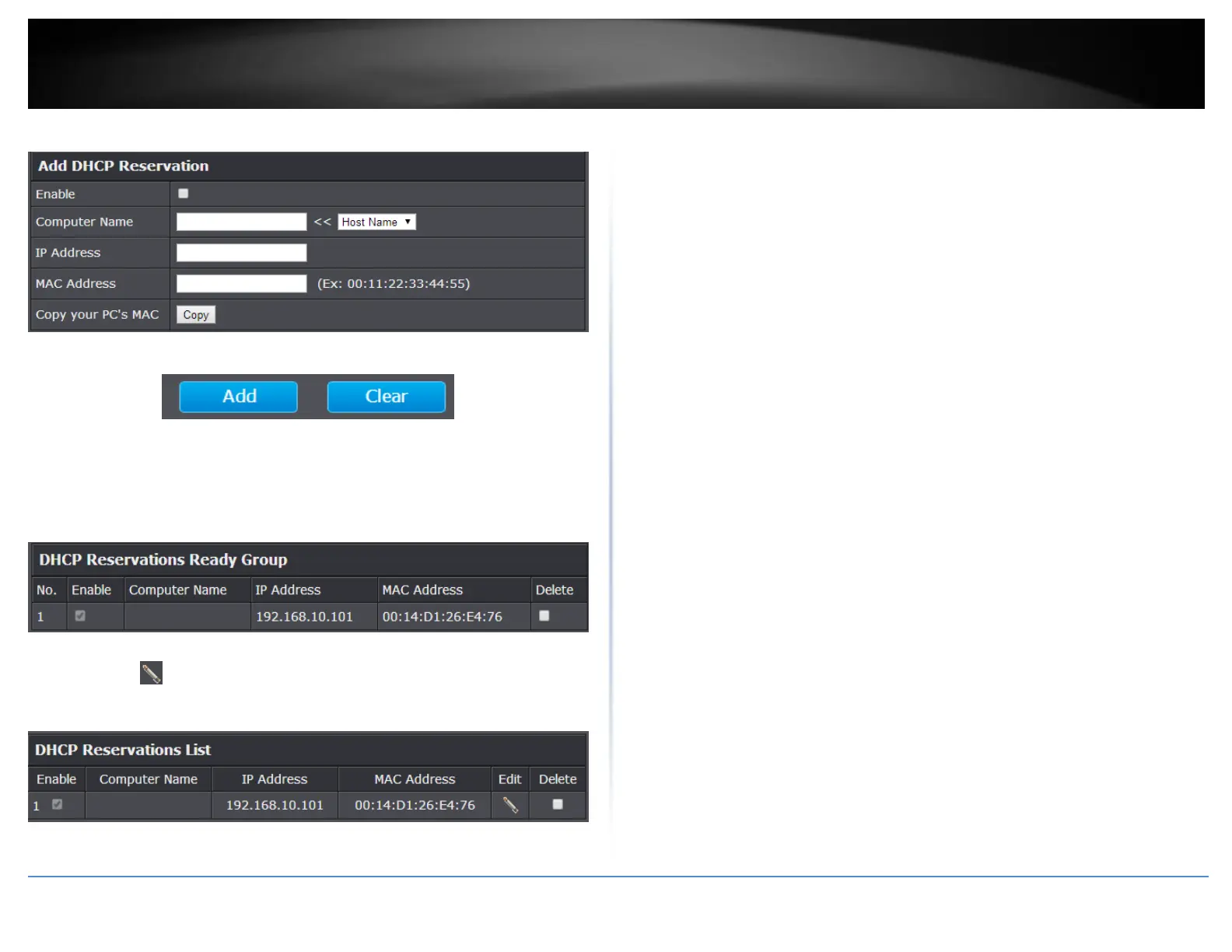

Click Add - Saves the reservation.
Note: Click Clear discards and erases the current information.
You will see the new reservation added to the DHCP Reservations Ready Group. This is a
temporary list until you save changes by clicking Apply. You can continue to add more
DHCP reservation entries which will appear in this list. Once you have saved the settings,
the entries will appear under the DHCP Reservations list. You can click Reset to clear the
entries in the list or check the Delete option, next to the entry to remove and click
Delete.
Under the DHCP Reservations List,
You can click the icon to edit the reservation or check the Delete option next to the
entry to remove and click Delete Selected to delete the reservation. You can also click
Delete All to delete all DHCP reservation entries from the list.
To save changes when modifying a reservation, click Save.
Note: If you would like to discard the changes, click Clear.

TRENDnet TEW-831DR Specifications

General

Product color	Black
Cables included	LAN (RJ-45)
Quick installation guide	Yes
Certification	FCC, IC
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
DSL WAN	No
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1200 Mbit/s
VPN support	FTP/TFTP/SIP/RTSP/IRC/H.323
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Receiver sensitivity	802.11a: -75 dBm @ 54Mbps 802.11b: -90 dBm @ 11Mbps 802.11g: -72 dBm @ 54Mbps 802.11n (2.4GHz): -72 dBm @ 300Mbps 802.11n (5GHz): -72 dBm @ 867Mbps 802.11ac: -61 dBm @ 867Mbps
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antennas quantity	4
Antenna gain level (max)	5 dBi
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2
Number of products included	1 pc(s)
Ethernet LAN (RJ-45) ports	3

Weight and Dimensions

Depth	239 mm
Width	155 mm
Height	30 mm
Weight	228 g
