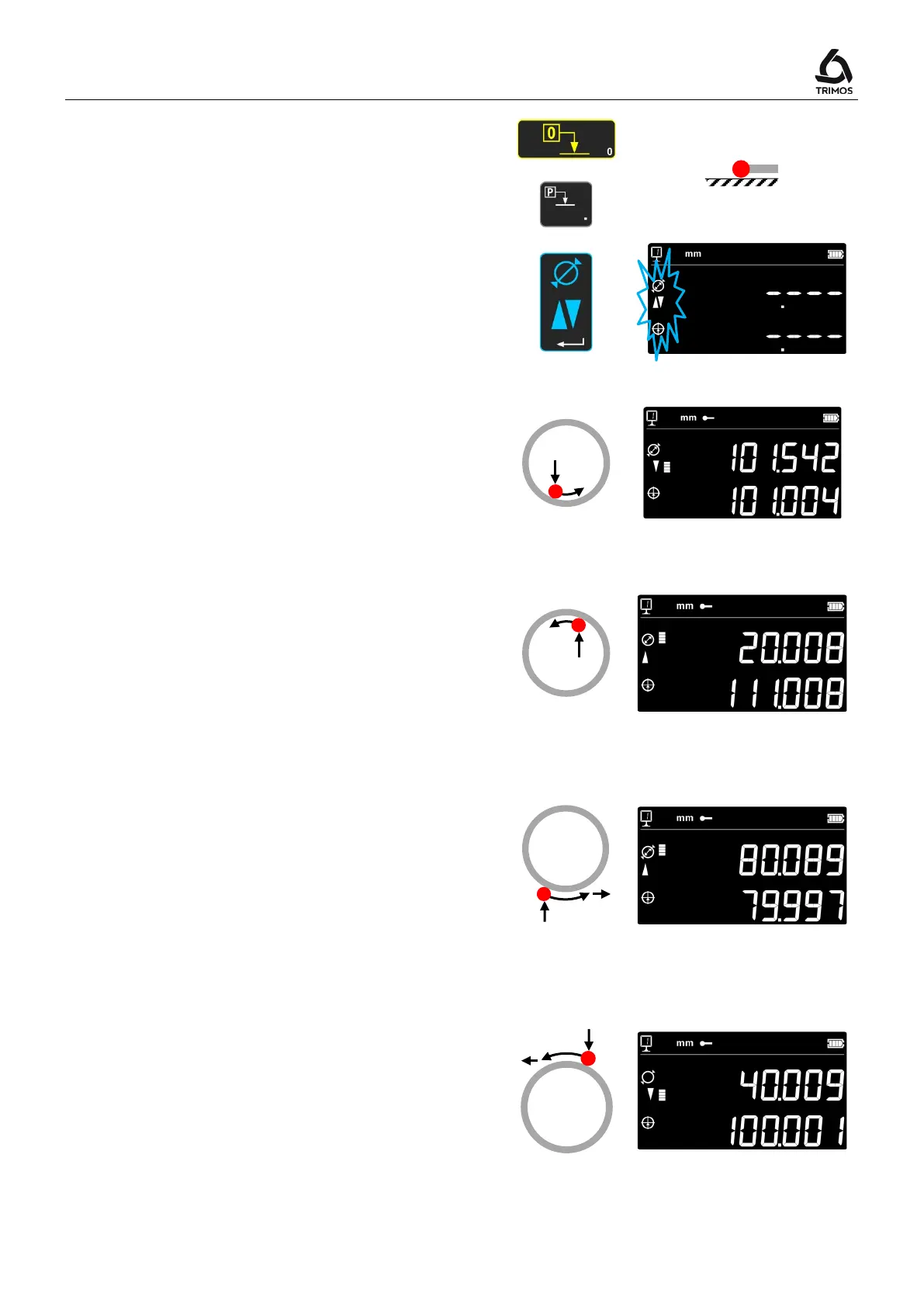

1. Set the display at zero or at a preset value on

a reference surface (see § 5.11 and § 5.4.2).

2. Select the diameter / centerline mode by

pressing the

Function key

3a. Internal diameter :

Position the measuring insert into the bore

near the reversal point (1) and engage the

measuring force until acoustic signal. Move

the part (or the instrument) laterally to

determine the reversal point (2). A double

beep sounds if SmartReverse is on (§9).

4a. Probe a point near the reversal point on the

side opposite the diameter (3). Move the part

(or the instrument) laterally to determine the

reversal point (4). Diameter and centreline

values are displayed on the 1

and 2

lines of

the display respectively.

3b. External diameter

Set the measuring insert off centre on the

lower shaft profile near to the reversal point

(1) and engage the measuring force until

acoustic signal. Move the part (or the

instrument) laterally to determine the reversal

point (2). It is automatically stored.

Remove the measuring insert slowly to the

side, off centre (3).

4b. Probe a point near the reversal point on the

side opposite the diameter (4). Move the part

(or the instrument) laterally to determine the

reversal point (5). Remove the measuring

insert to the side, off centre (6). Diameter and

centreline values are displayed on the 1

and

lines of the display respectively.
