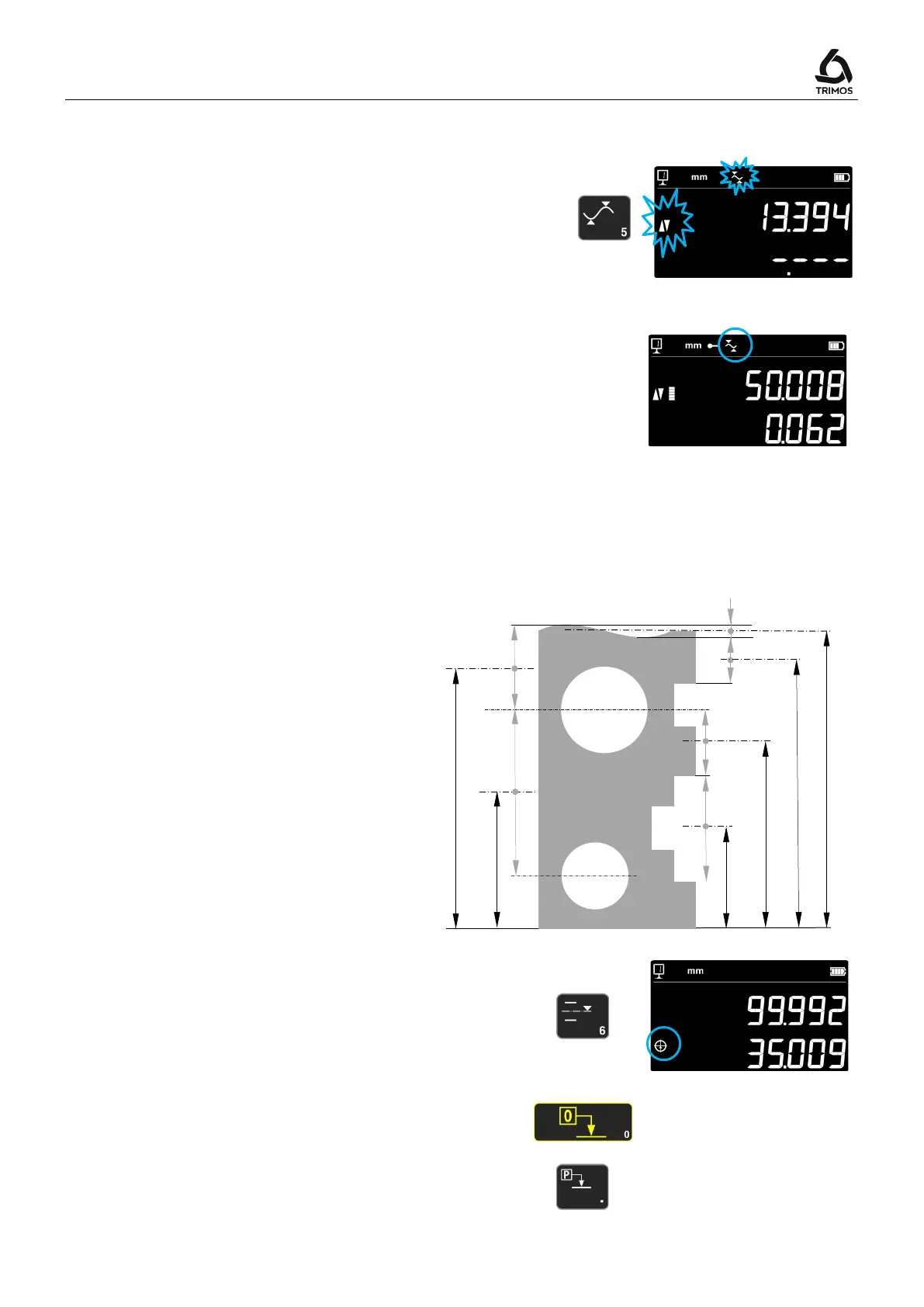

5.8.2 Measuring in Delta Mode
1. Select Delta function. The corresponding indicator
shows the activated mode.
2. Probe the surface to be measured and displace the
insert or the piece along the part to be analysed. The
1st line on the display shows the instantaneous
position of the probe. The 2
nd
line indicates the
difference between the maximum and minimum
(=Delta) measured.
Note :
By pressing the
key, the Delta mode will be
reset and the display will show zero.
Delta
5.9 Average Between 2 Last Measurements
Averages :
M1 = Between 2 centerlines
M2 = Between 2 heights
M3 = Between Min et Max
M12 = Between centreline and height
M13 = Between centreline and Min or Max
M23 = Between height and Min or Max
By pressing this key, the average between the 2 last
height measurements, centerline, Min or Max is
determined. These various measurements can be
combined with each other.
Note:
It is possible, after calculation of an average value,
to give the calculated position a zero value or Preset
value.
