User's Manual
750 50 0045 03 28

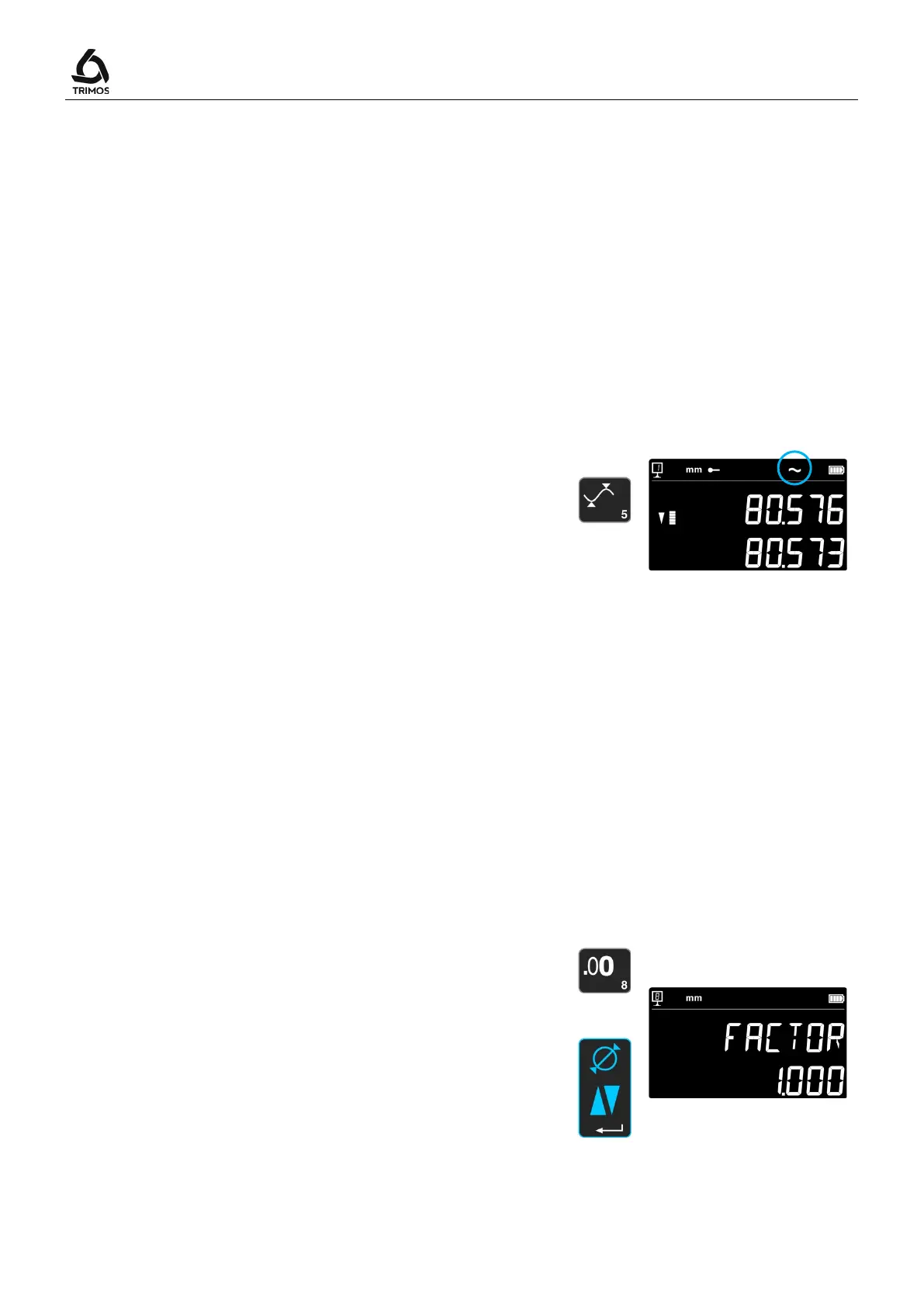

6.7 Display Modes
In height measuring mode, 2 ways are possible to display
the measured value :
"Standard" display
The upper line of the display permanently indicates the
current position of the probe. It remains frozen at the
measured value during probing.
During probing the lower line indicates the distance from
the former height (Dimension in chain).
When the measuring force is released, this value is
replaced by that of the last measurement.
"Direct" display
The upper line of the display permanently indicates the
current position of the probe. It does not remain frozen
during probing.
The lower line indicates the frozen value of the last
measurement.
Activate the "direct" display mode by pressing the key
opposite during 2 seconds. Do the same to deactivate
this mode. When the "direct" display mode is activated,
the symbol opposite appears at the top of the principal
display.
Note 1:
The "standard" and "direct" display modes only apply to
height measurements.
Note 2:
In this mode, sending data transfers the current position
of the insert and not the value of the last probing.
> 2 s
6.8 Shrinking Factor
A shrinking factor can be entered here, for example for
measuring injection moulds. This function allows in
general "distending" or "shrinking" the measuring system
by a defined factor.
To activate this function, press the key, shown at the
right, during 2 seconds. Enter the shrinking factor (value
between 0.7 and 1.2) and confirm by pressing
.
> 2 s
