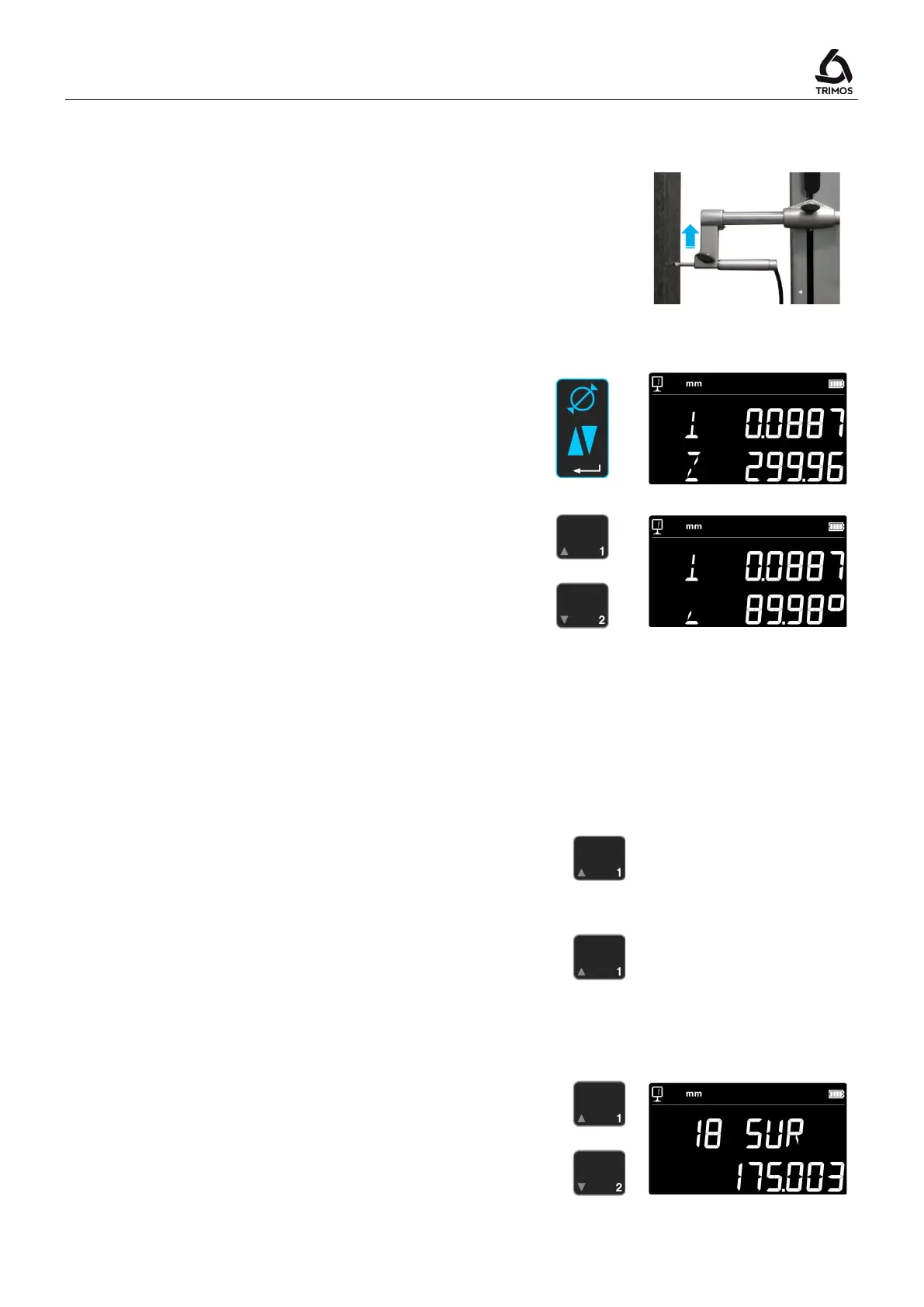

6. Slowly move the probe along the face to be
measured. Z values (vertical axis) and X
(horizontal axis) are displayed live during the
displacement.
Note :
By pressing the
Print
key during the
perpendicularity measurement, X and Z values
are transferred via interfaces USB et RS232 (§
7).
7. When the displacement is over, press the
validation key
. The display freezes and shows
the perpendicularity (
⊥
) on the first line of
display and distance (Z) on the second one.
Display of Z value is deliberately limited to 2
decimal digits.
8. The inclination (angle) can be displayed by
pressing one of the key opposite. The value is
displayed on the second line of the display, in
decimal format.
For a new perpendicularity measurement, restart
from point 5. To quit this mode, press again
validation key
.
6.2 Measurement History (Buffer)
6.2.1 Access to the buffer
Each measurement made is stored in a buffer that can
contain 99 values. Once this number is reached, each
new measurement replaces the oldest value.
To access the buffer, press the following key for 2
seconds.
>2 s
To exit the buffer without operation, press the same key
for 2 seconds.
>2 s
6.2.2 Navigation in the buffer
To navigate in the buffer, the keys opposite can be used.
Each value is displayed as follows:
- 1st display line: Position in the buffer and function
- 2nd display line: Measured value

TRIMOS V6 Specifications

General

Brand	TRIMOS
Model	V6
Category	Measuring Instruments
Language	English
