User's Manual
750 50 0045 03 22

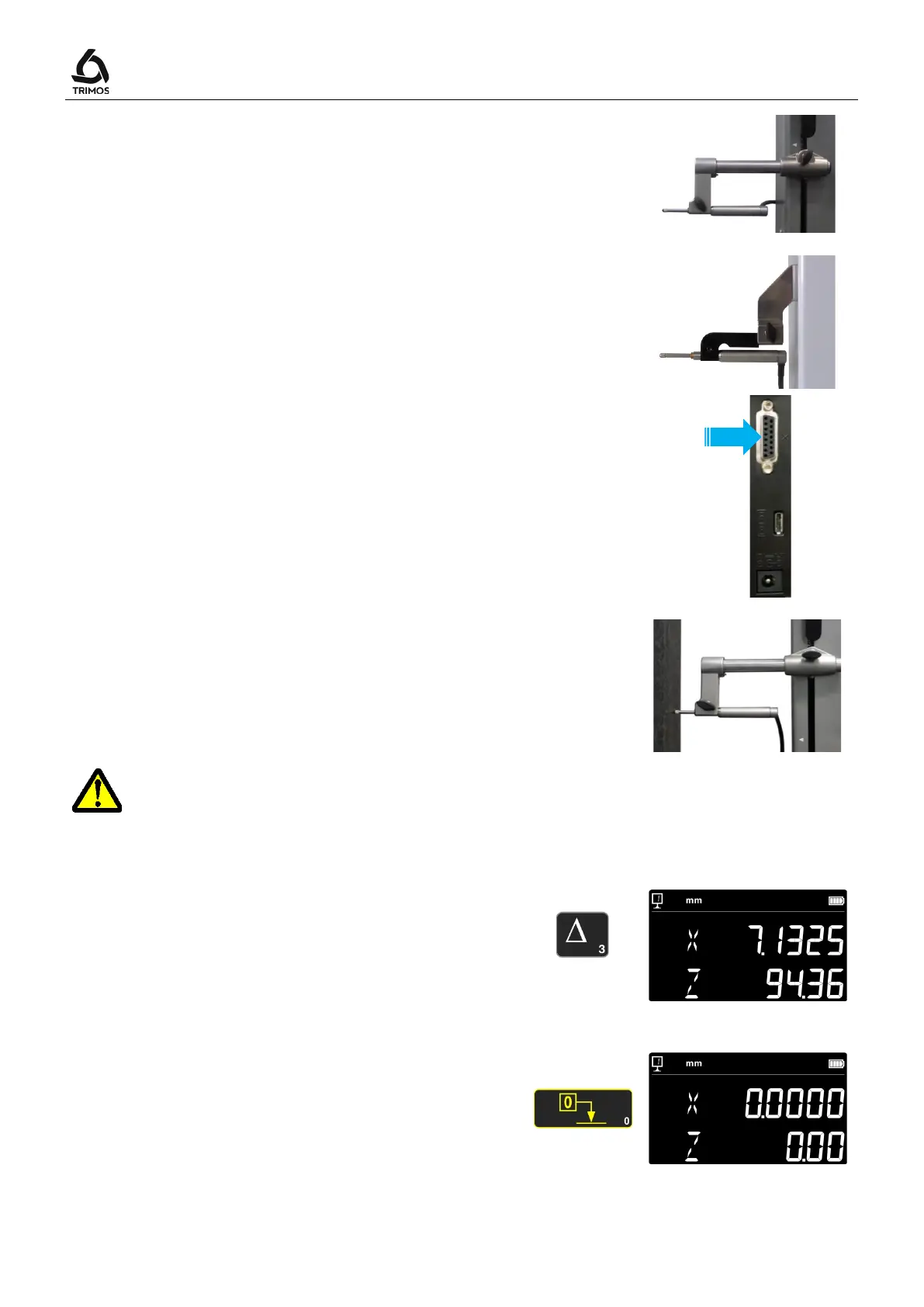

1. Lift the electronic perpendicularity probe with its
measuring insert holder.
V6
V8
2. Connect the perpendicularity probe to the
measuring column.
3. Place the part to be measured against the
probe, taking care that the contact is
maintained on the whole part to be measured.
Bring the carrier to its starting position.
In order to ensure an optimal measuring precision, the base of the instrument must
be perfectly parallel with the face to be measured.
4. Select the perpendicularity mearuring function
by pressing the key opposite during 2 seconds:
The probe measurement (X) appears on the first
line of the display. The height measured (Z) is
displayed on the second line.
> 2 s
5. Initialize display by pressing the zero setting
key.The measurement starts as the key is
pressed.
Note:
The acquisition speed is about 10 points per
second.
