TRIMOS V6 User Manual

V3 / V4 / V5 / V6 / V8
750 50 0045 03 21

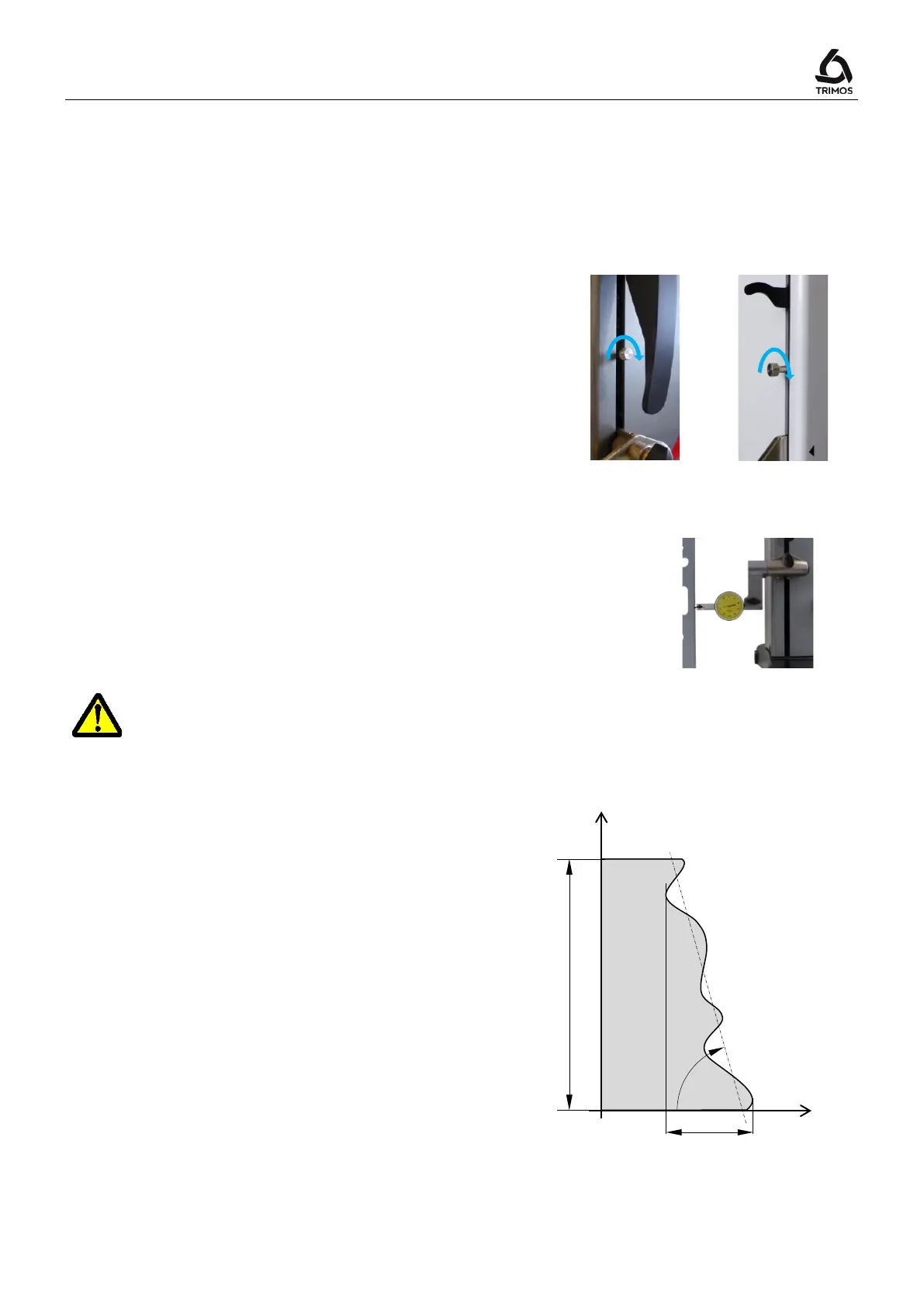

6. SECONDARY FUNCTIONS
6.1 Perpendicularity Measurement
The carriage must be blocked before every
perpendicularity measurement.
6.1.1 With lever indicator
1. Mount a lever indicator in the insert holder.
2. Lightly press the lever of the indicator against the
face to be measured and adjust zero.
3. Displace the carriage of the instrument vertically in
order to check the perpendicularity of the face.
The base of the instrument must be perfectly parallel to the face to be
measured in order to ensure an optimal precision.
6.1.2 With Electronic Probe (V6 & V8)
The perpendicularity measurement is obtained with
the values shown on the drawing opposite:
z Distance
⊥ Perpendicularity
∠ Inclination
V3 ÷ V6
V8
Z
X
∠
⊥
z
