User's Manual
750 50 0045 03 18
The measurements in mode Min, Max Delta have always
to be done with the probe being in contact with the
surface.
It allows to determine the following values :
: Minimum value of the measured surface
: Maximum value of the measured surface
: Difference between the maximum and
minimum value

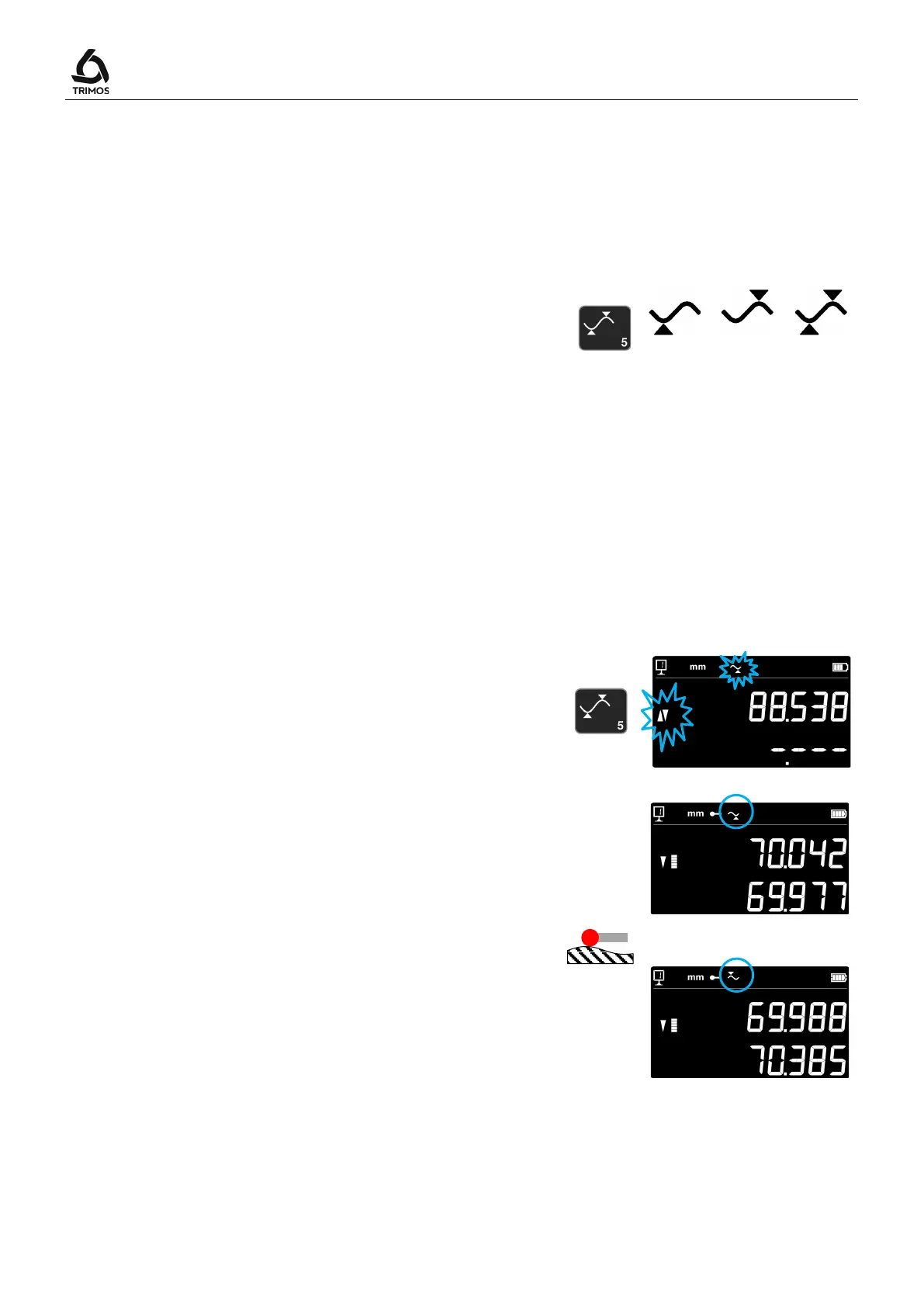

To select the Min, Max or Delta mode, press the key on
the keyboard. By pressing the same key several times, the
required mode will be displayed. To quit this mode, press
the
Note:
In manual mode, the difference between the Min and the
Max should not exceed ± 1 mm. When motorisation is
activated, a closed-loop control is used to monitor the
surface over the entire measuring range of the instrument.
5.8.1 Measuring in Min or Max Mode
1. Select Min or Max function. The corresponding
indicator shows the activated mode.
2. Probe the surface to be measured and displace the
insert or the piece along the part to be analysed.
The 1st line on the display shows the instantaneous
position of the probe. The 2
nd
line indicates the
minimum, respectively maximum value reached.
Note :
A zero setting or a preset reinitialize the display on
the minimum or maximum value measured.
Min
Max
