Triton T100XR User Manual

14
ELECTRICAL INSTALLATION
IMPORTANT: Switch off the electricity supply at
the mains before proceeding.
• The supply cable MUST be secured either by
routing through conduit, in trunking, or by
embedding in the wall, in accordance with
IEE regulations.
NOTE: Conduit entry can only be from rear.
NOTE: Deviations from the designated entry
points will invalidate product approvals. The
cable entry points are listed on page 8.
• Seal around rear entry cable to prevent water
ingress into the wall.
Installation - ELECTRICAL INSTALLATION
6
check list
SECTIONSECTION
Installation - FIT TO THE WALL & CONNECT THE SHOWER SUPPLIES
FIT TO THE WALL & CONNECT THE
SHOWER SUPPLIES
Pipe/Electrical access points
• If bottom or side surface entry is required
for the mains cold water, then the necessary
opening will need to be cut out in the
trimplate (fig.8).
• If surface cable entry from the top is required
then a small area will need to be cut out in
the backplate (fig.9).
• If installing a feed pipe from the rear or
bottom, the centre of the inlet valve to the
wall surface is 21mm (fig.7).
7
check list
SECTIONSECTION

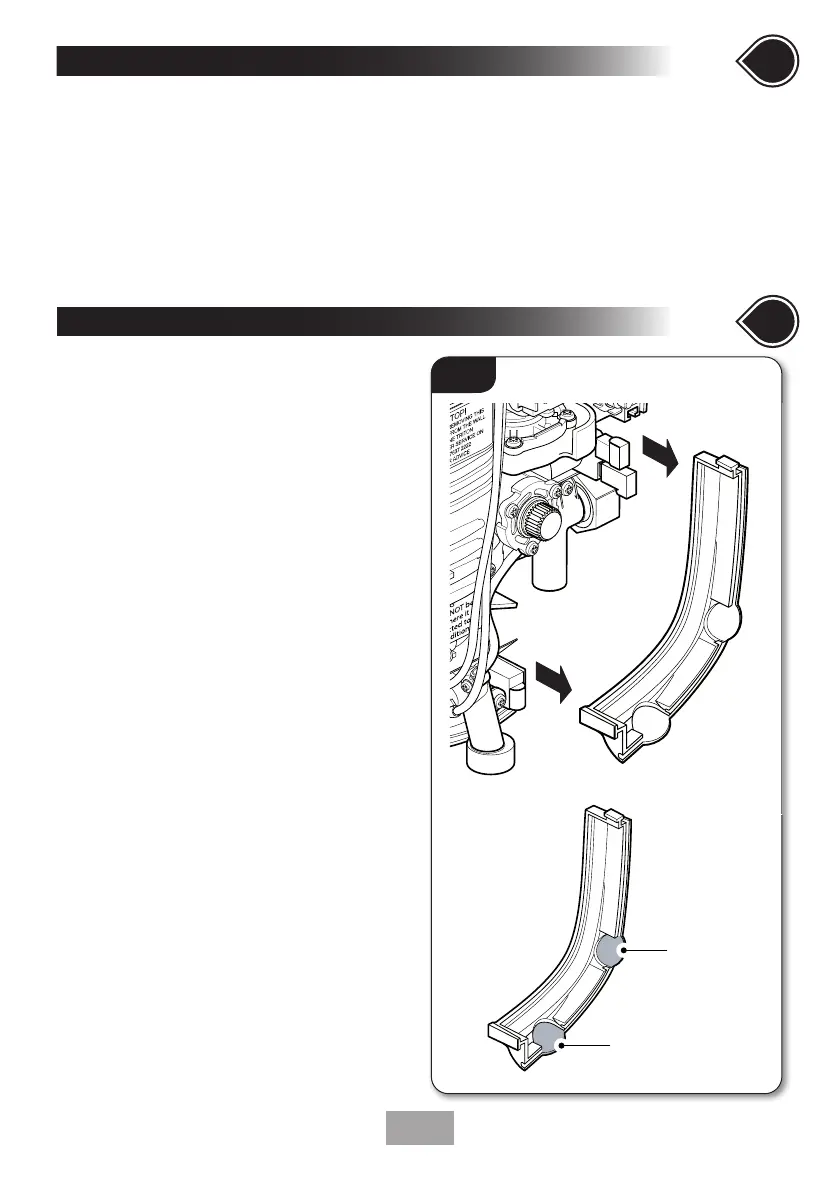

Fig.8
Area to be
cut away fo
r
side entry
Area to be cut away
for bottom entry

Triton T100XR Specifications

General

Type	Electric Shower
Finish	White
Cable Entry Points	Back, Bottom Right
Installation	Wall-mounted
Water Entry Points	Back, Bottom Right
