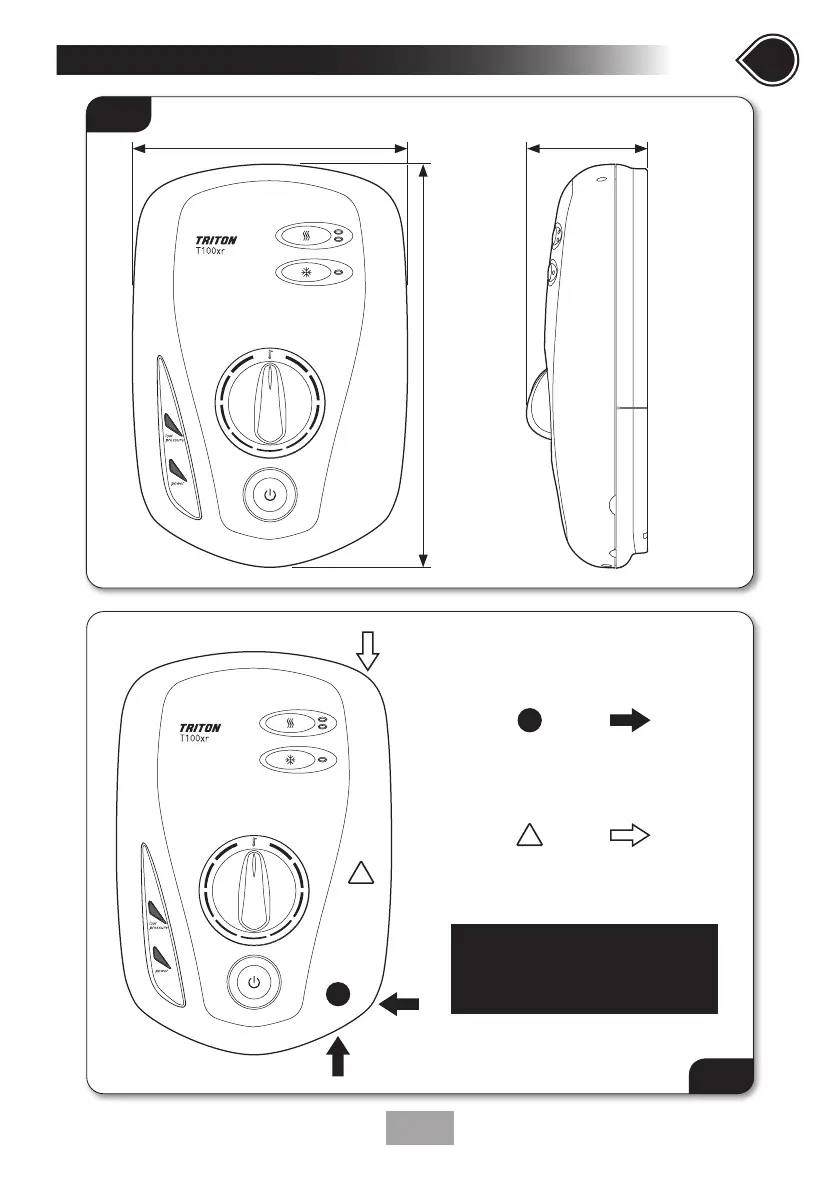

DIMENSIONS & ENTRY POINTS
2
check list
SECTION SECTION
Fig.2
Fig.1
212mm 95mm
309mm
ENTRY POINTS
DIMENSIONS
WATER
Right: Bottom back, Bottom, Bottom side
Left: None.
CABLE
Right: Middle back, Top.
Left: None.
= Back
= Back
= Others
= Others
PLEASE NOTE: Deviation from the
approved entry points will invalidate
product specifications and warranty.
