10
T60X
SITING OF THE SHOWER
IMPORTANT: If installing onto a tiled wall
always mount the unit on the surface of the
tiles. NEVER tile up to the unit.
Refer to fig.5 for correct siting of shower.
Position the unit where it will NOT be in direct
contact with water from the shower head.
Position the shower unit vertically.
Allow enough room between the ceiling and the
shower to access the cover top screws.
NOTE: Water Regulations requires the shower
head be ‘constrained by a fixed or sliding
attachment so that it can only discharge water at
a point not less than 25mm above the spill-over
level of the relevant bath, shower tray or other
fixed appliance’. The use of the supplied soap
dish will in most cases meet this requirement, but
if the shower head can be placed within a bath,
basin or shower tray, then a double check valve,
or similar, must be fitted in the supply pipework
to prevent back-flow.
Pressure Relief Safety Device
A pressure relief device (PRD) is designed into
the shower unit which complies with European
standards. The PRD provides a level of appliance
protection should an excessive build up of
pressure occur within the shower.
DO NOT operate the shower with a damaged
or kinked shower hose, or a blocked shower
head which can cause the PRD to operate.
When commissioning, the shower head must
be removed from the flexible hose, while at the
same time the temperature control must be at
the minimum flow position. Failure to follow this
procedure may also cause the PRD to operate.
Make sure the shower is positioned over a bath
or shower tray because if the PRD operates, then
water will eject from the bottom of the unit.
Should this happen, turn off the electricity and
water supplies to the shower at the isolating
switch and stopvalve. Contact Customer
Experience for advice on replacing the PRD.
Retaining
ring
Outline of bath
or shower tray
Shower unit can
be mounted either
side of riser rail
25mm minimum
Height of
shower head
and shower
to suit user's
requirement
Shower unit
must not
be within
an area
1 metre
from base
WARNING!
THE SHOWER MUST NOT BE POSITIONED
WHERE IT WILL BE SUBJECTED TO
FREEZING CONDITIONS.
IMPORTANT: The unit must be mounted
on a flat surface which covers the full width
and length of the backplate. It is important
that the wall surface is flat otherwise
difficulty may be encountered when fitting
the cover and subsequent operation of the
unit may be impaired.

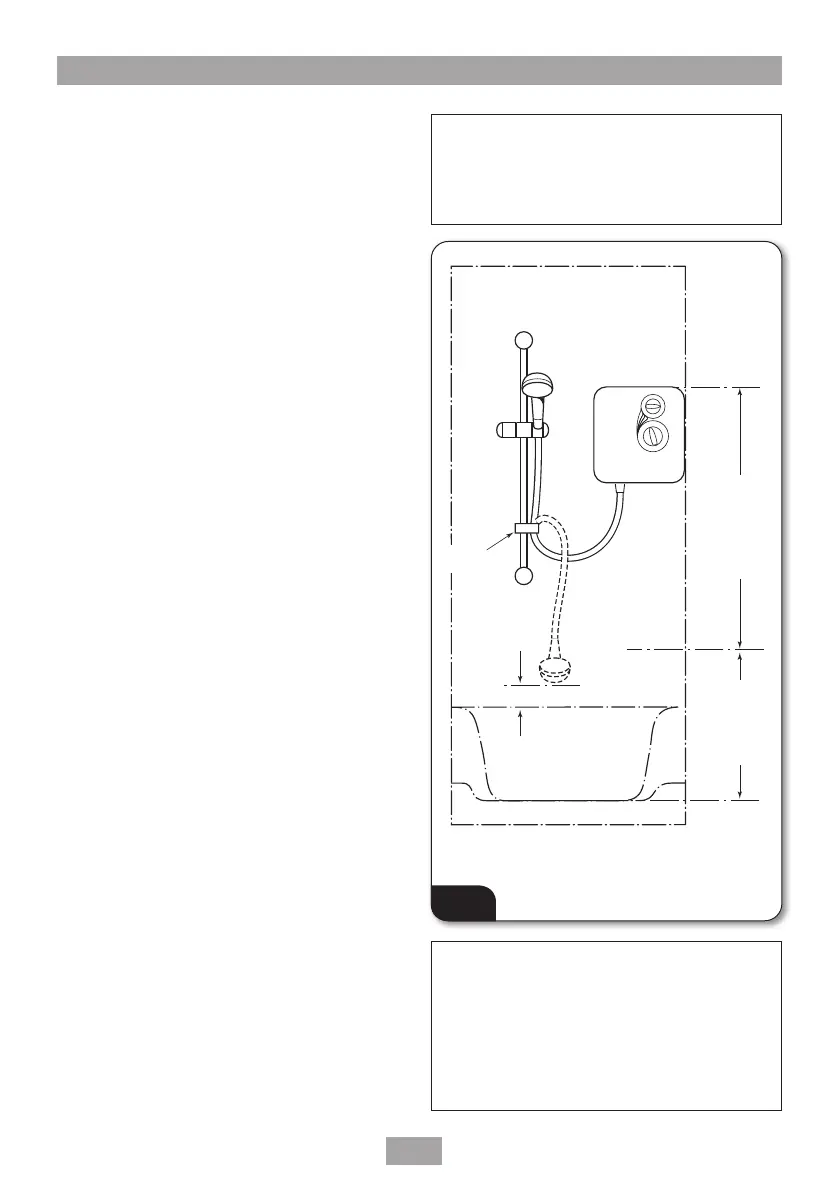

Fig.5
*Diagrammatic view – not to scale.
For illustration purposes only.
