Maintenance and Adjustment

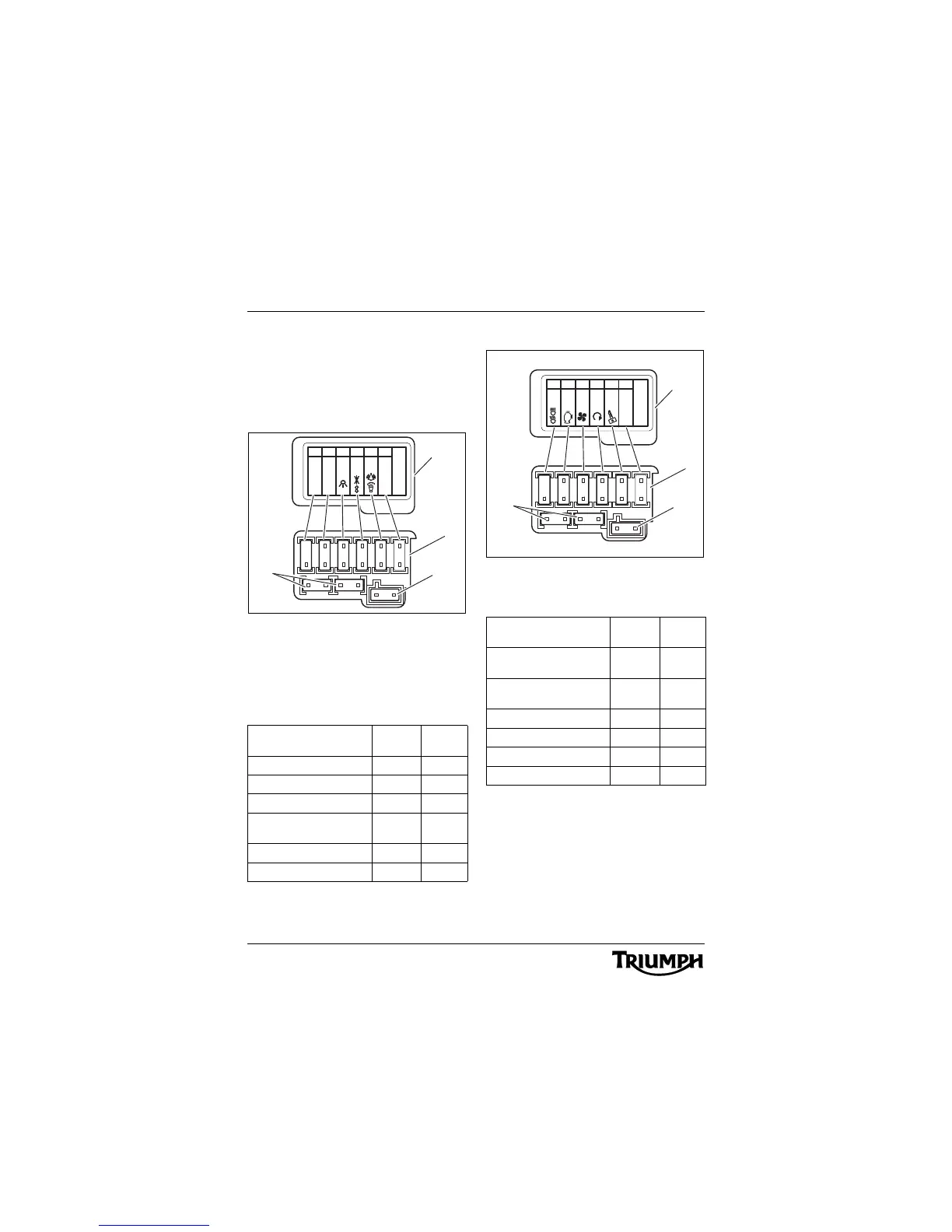

The fuse identification numbers listed in the
tables correspond with those printed on the
fuse box cover, as shown. Spare fuses are
located at right angles to the main fuses and
should be replaced if used.
Front Fuse Box
1. F u s e b o x
2. Fuse box cover
3. Spare fuses
Note:
• For motorcycles without ABS, fuse
positions 1 and 2 will be empty.
Rear Fuse Box
1. F u s e b o x ]
2. Fuse box cover
3. Spare fuses
Circuit Protected Position Rating
(Amps)
ABS 1 20
ABS 2 20
License plate light 3 5
Tail light, turn signals, side
lights
410
Alarm, instrument lights 5 5
Empty 6 -
1
2
3
3
20
5
10
10
5
20
20
20A
6
OPEN
5
EMPTY
4
3
10A
2
5A
1
20A
5A
ABS
ABS
5
cebw_3
Circuit Protected Position Rating
(Amps)
Dip and main beam
headlights
120
Engine management
system
220
Cooling fan 3 15
Fuel pump 4 10
Ignition switch 5 10
Empty 6 -
20
10
10
15
15
10
20
20
20A
6
OPEN
5
4
3
10A
2
15A
1
20A 10A
1
2
3
3
EMPTY
cebw_1

Triumph Speed Triple R Specifications

General

Engine Capacity	1050 cc
Transmission	6-speed
Seat Height	825 mm
Fuel System	Multipoint sequential electronic fuel injection
Engine Type	Liquid-cooled, 12-valve, inline 3-cylinder
Power	148 hp (110 kW) @ 10, 500 rpm
Torque	117 Nm at 7, 150 rpm
Front Suspension	Öhlins 43mm NIX30 upside down forks with adjustable preload, rebound and compression damping
Rear Suspension	Öhlins TTX36 monoshock, fully adjustable
Front Brakes	Twin 320mm floating discs, Brembo 4-piston radial calipers
Fuel Tank Capacity	15.5 litres
