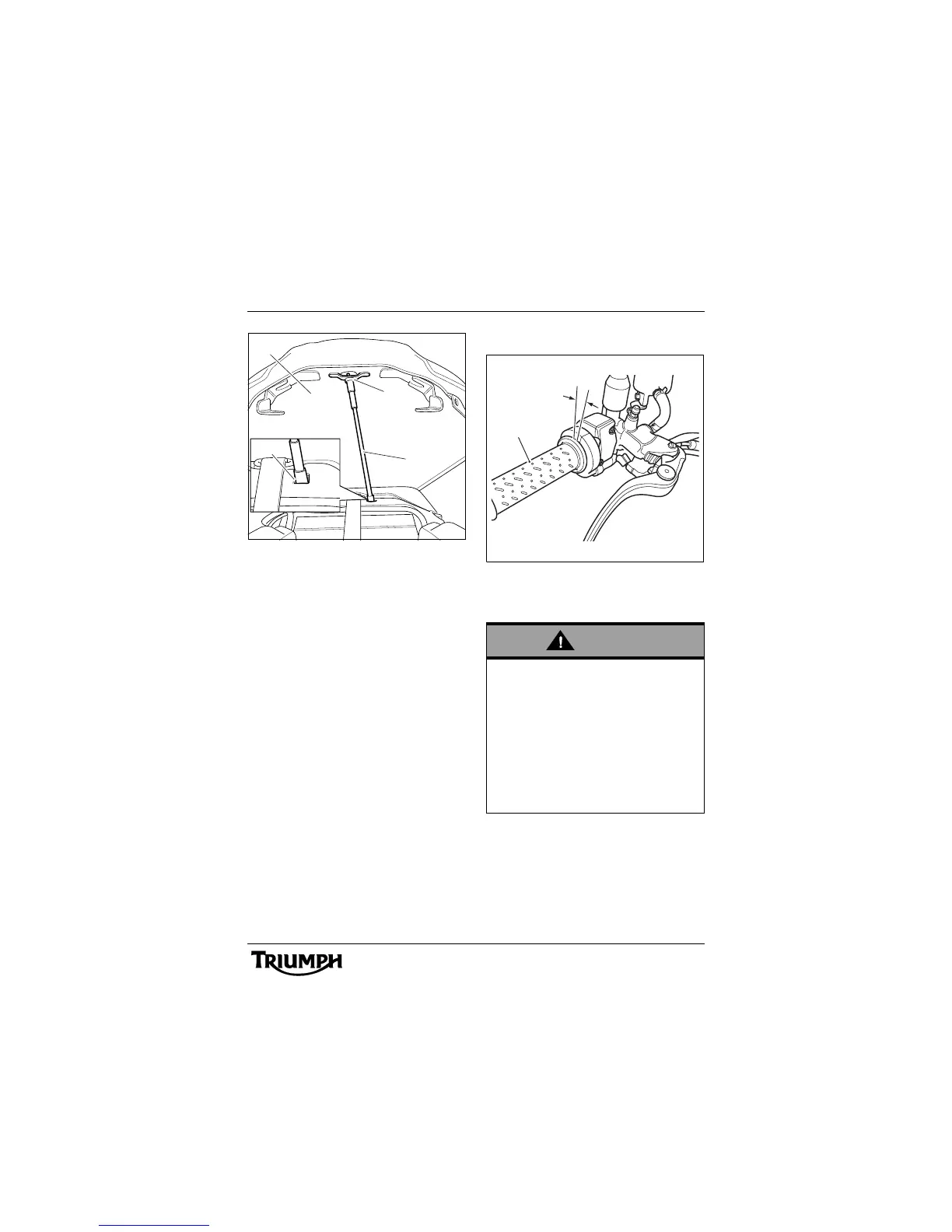

Triumph Speed Triple R User Manual

89
Maintenance and Adjustment
1. Fuel tank prop
2. Fuel tank
3. Supporting point, fuel tank
4. Supporting point, air box
Lowering
While holding the fuel tank, remove the fuel
tank prop and lower the fuel tank. Reinstall
the front fasteners and tighten to 35 lbf in
(4Nm).
Reinstall the front panel and tighten the
fasteners to 17. 5 l b f i n ( 2 N m ) .
Securely fit the fuel tank support to its
location on the seat.
Install the seat (see page 53).
Throttle Control
1. Throttle grip
2. Correct setting 0.08 - 0.12 in
(2 - 3 mm)
1
cgfh
2
3
4
Warning
The throttle grip controls the throttle valves
in the throttle bodies. If the throttle cables
are incorrectly adjusted, either too tight or
too loose, the throttle may be difficult to
control and performance will be adversely
affected.
Check the throttle grip free play in
accordance with scheduled maintenance
requirements and make adjustments as
necessary.
ccpf
1
2

Triumph Speed Triple R Specifications

General

Engine Capacity	1050 cc
Transmission	6-speed
Seat Height	825 mm
Fuel System	Multipoint sequential electronic fuel injection
Engine Type	Liquid-cooled, 12-valve, inline 3-cylinder
Power	148 hp (110 kW) @ 10, 500 rpm
Torque	117 Nm at 7, 150 rpm
Front Suspension	Öhlins 43mm NIX30 upside down forks with adjustable preload, rebound and compression damping
Rear Suspension	Öhlins TTX36 monoshock, fully adjustable
Front Brakes	Twin 320mm floating discs, Brembo 4-piston radial calipers
Fuel Tank Capacity	15.5 litres
