122
Maintenance and Adjustment
Disconnect the multi-pin electrical connector
from the bulb and remove the rubber cover.
Detach the wire retainer from its clip (do not
remove the screw) then remove the bulb
from the light unit.

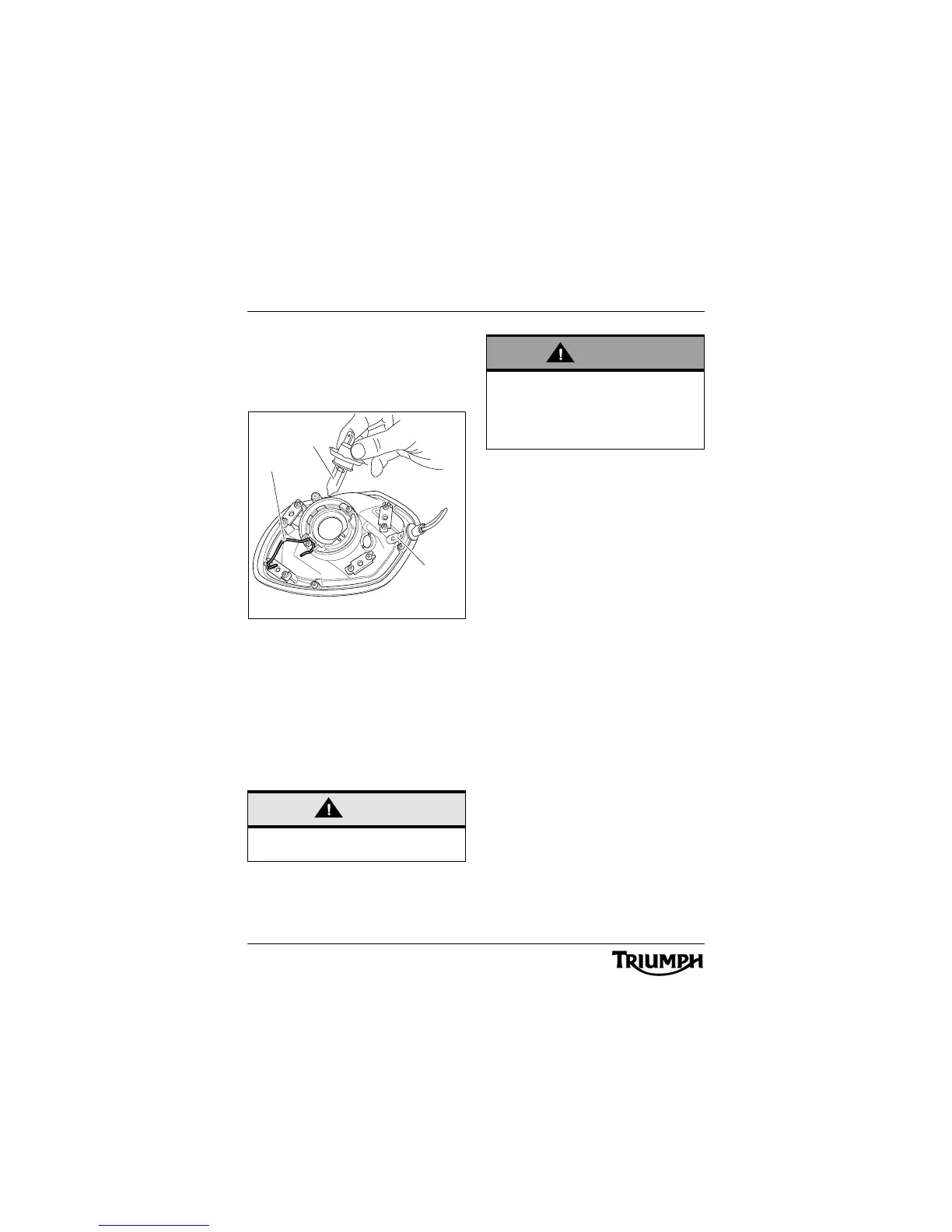

1. Headlight bulb
2. Bulb clip
3. Position lamp bulb
To remove the position lamp bulb:
Without pulling the wires, ease the bulb
holder from its socket. The bulb is removed
from its holder by pulling gently upwards.
Installation for both bulbs is the reverse of the
removal procedure. Tighten the headlamp
fasteners to 26 lbf in (3 Nm).
Reconnect the battery, positive (red) lead first.
Refit the front panel and tighten the fasteners
to 3 Nm.
Brake/Tail Light
Brake/Tail Light Replacement
The brake/tail light unit is a sealed,
maintenance free LED unit.
Caution
When reconnecting the battery, connect
the positive (red) lead first.
cgfn
2
1
3
Warning
Do not reconnect the battery until the
assembly process has been completed.
Premature battery reconnection could
result in ignition of the battery gases
causing risk of injury.
