TrojanLabel T3-OPX - Aerosol Filter Replacement Process

78 pages

Save Page as PDF

To Next Page

To Previous Page

T3-OPX installation

Page | 72

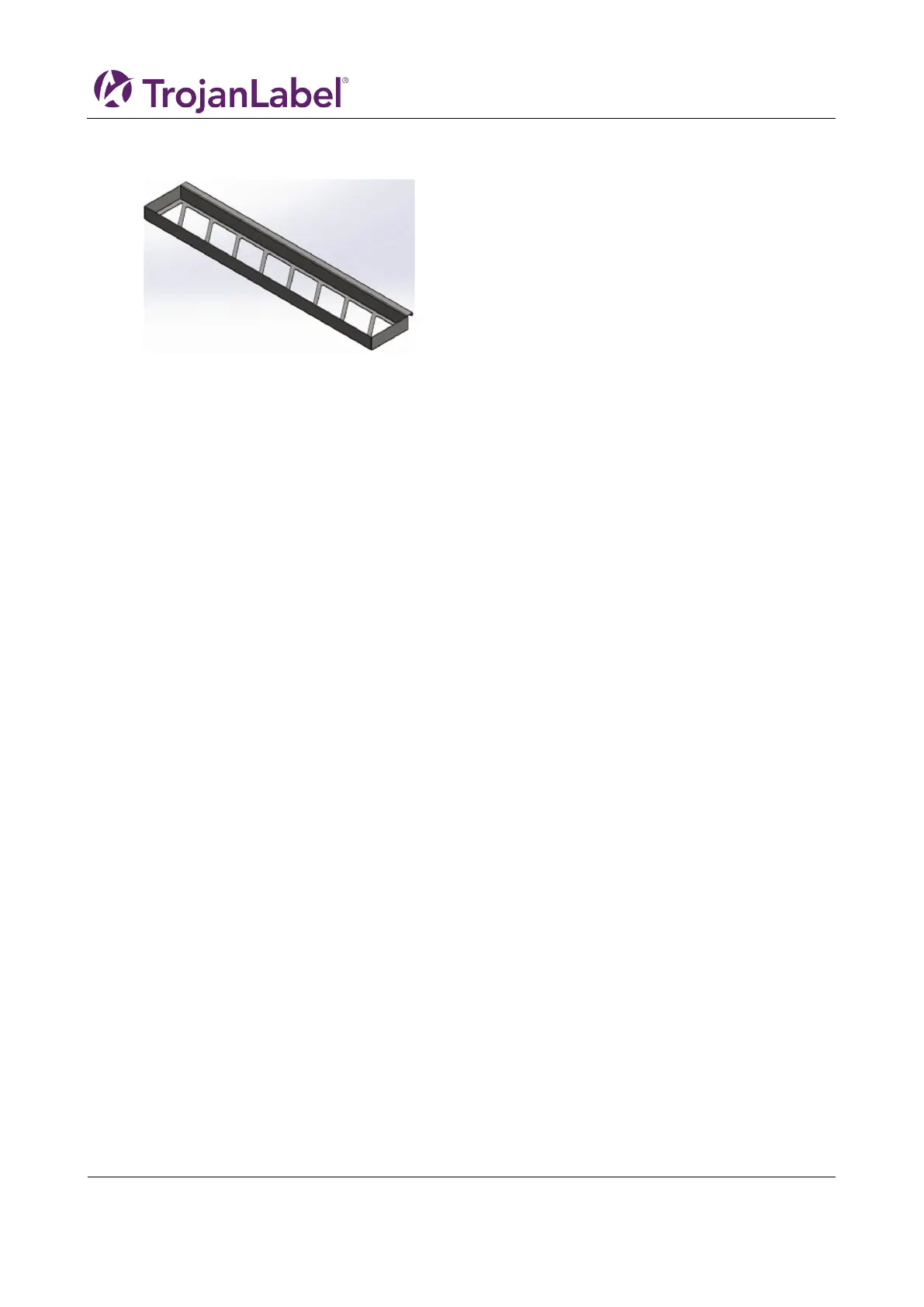

11.4.1 Aerosol filter replacement process

1. Remove the aerosol filter drawer, by pulling the handle

2. Remove the filter in the drawer

3. Insert a fresh filter

4. Insert the aerosol filter drawer
