T3-OPX installation

Page | 75

13 Debugging connections.

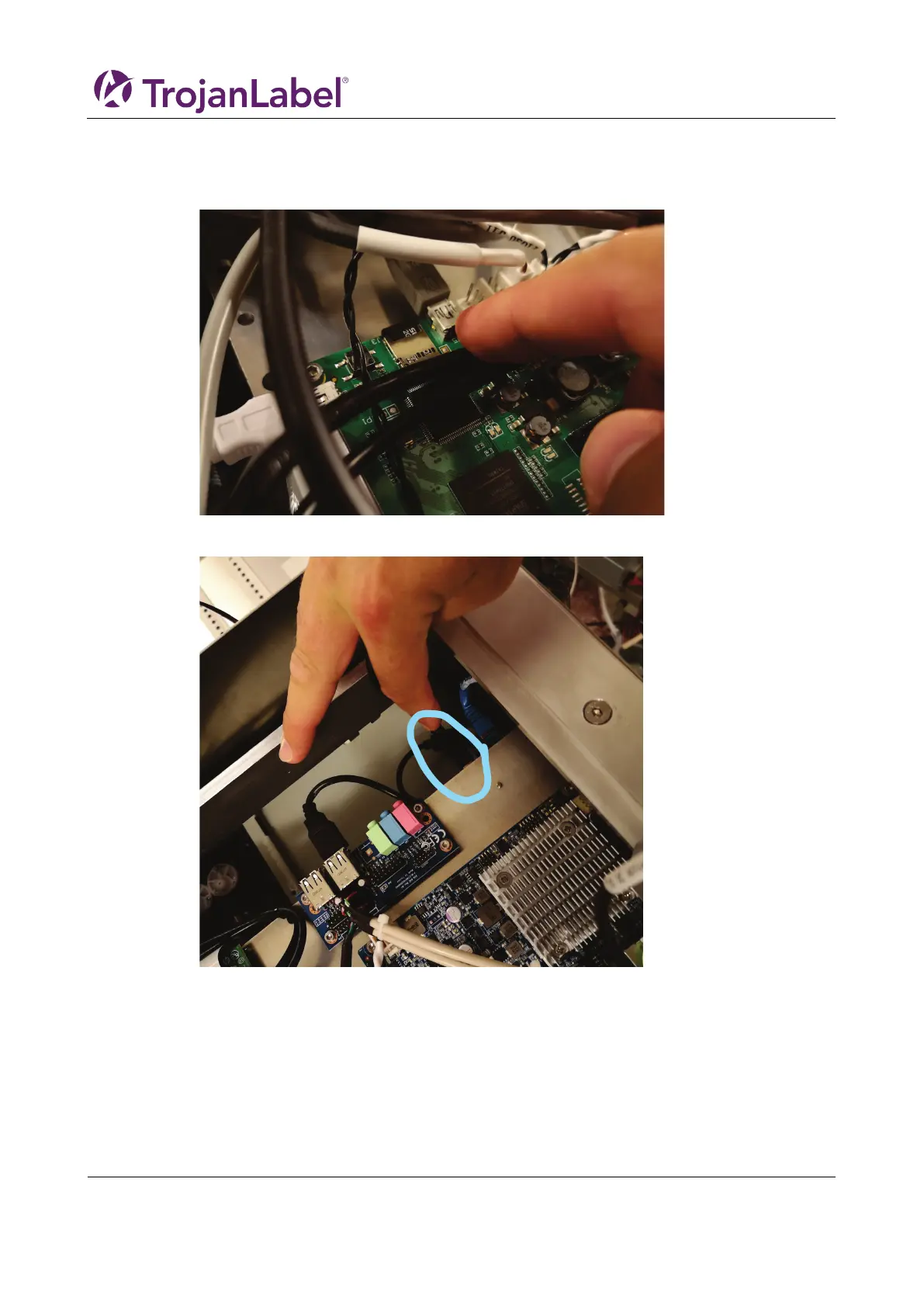

1. To debug the webpath board Connect an external PC to the T1030 board (the new webpath)

a. Use a USB -> USB Mini to connect

2. To the MPCA to a an external PC to the MPCA

a. Use a USB AB to connect
