Metal stud system
①
③
③
①
⑥
⑤
④
⑧
①
③
③
⑪
⑪
①
③
②
④/⑦
①
⑧
⑥
⑤
⑥
⑤

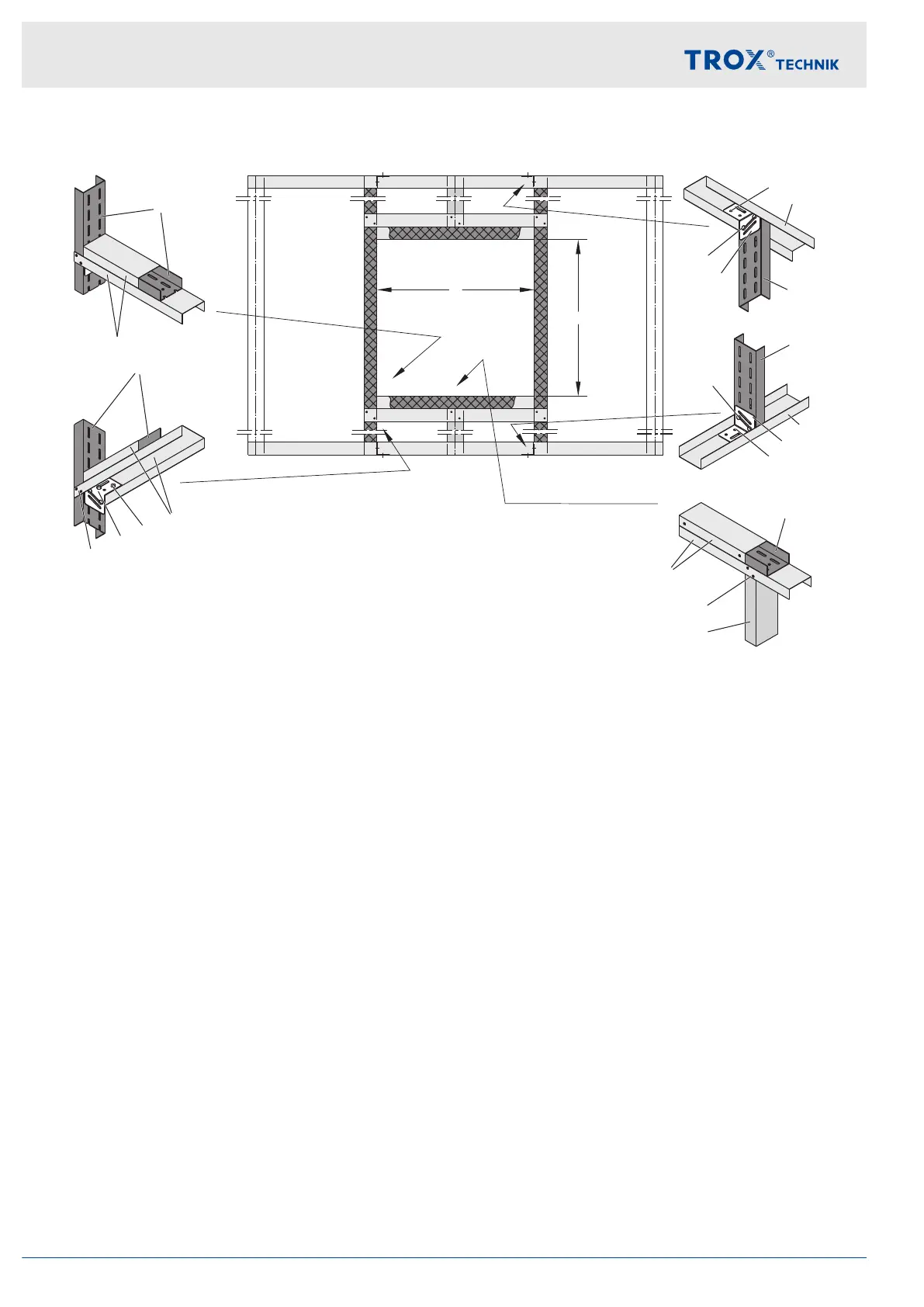

Fig. 24: Single stud system
①
UW section
②
CW section
③
UA section
④
Dry wall screw TB
⑤
Carriage bolt, L ≤ 50 mm, with nut and washer
⑥
Bracket
⑦
Steel rivet Ø 4 mm
⑧
2 × screw, Ø 6 mm, with anchor or hammer-in
fixing
⑨
Dry wall screw Ø 3.9 × 35 mm
⑩
UA connecting bracket; construction elements
according to manufacturer's instructions
⑪
Installation opening depending on installation type
Ä on page 37
