60020-00216 ∙ 00 ∙ 08/2022
Product descriptionMover XT4
29EN

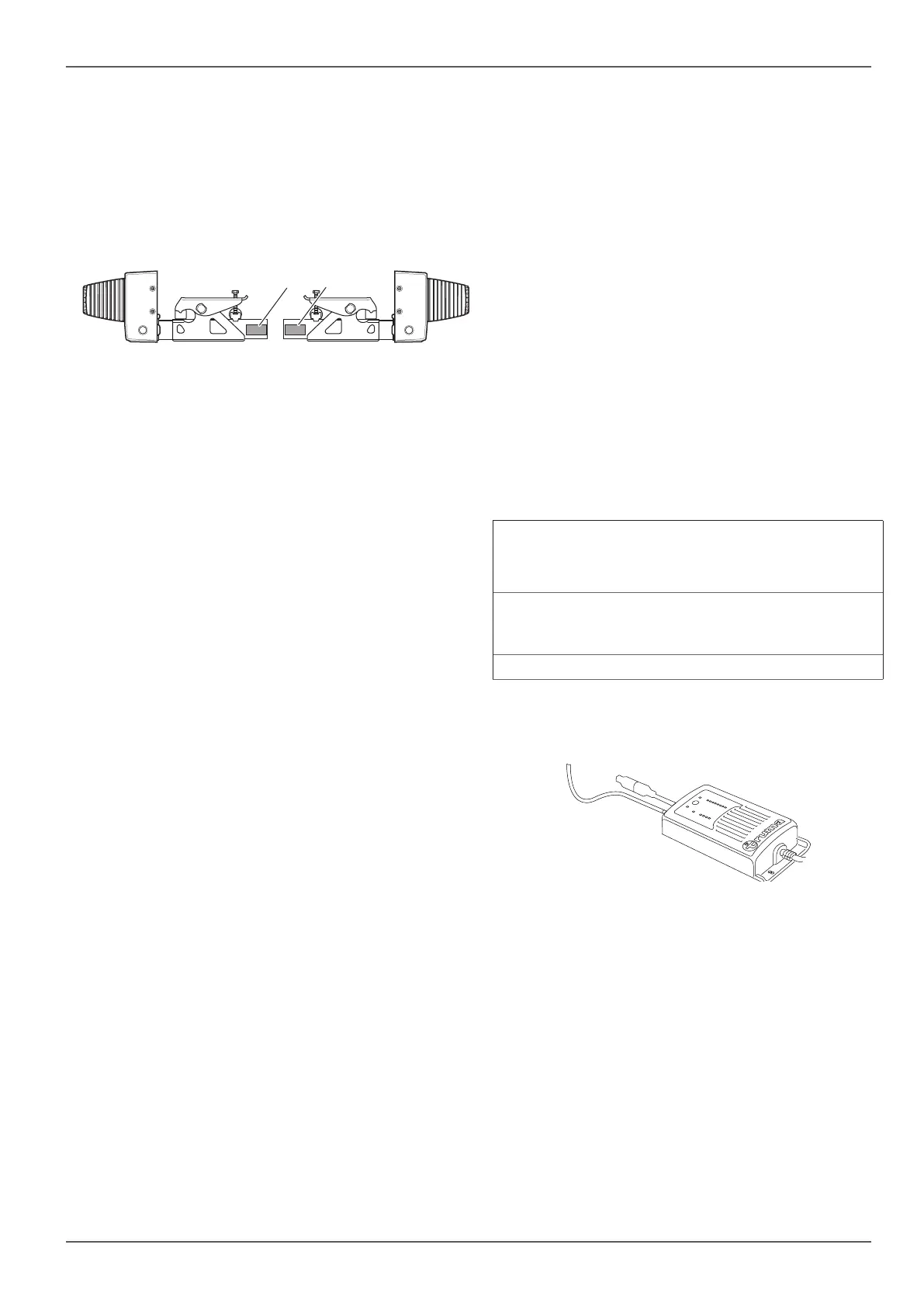

4.2 Product label
The appliance type and serial number are printed on the
type plate�
Type plate
To ensure that the general operating permit (ABE) is va-
lid, the type plates must be present on the left and right
of each of the mounting tubes�
1
2
Fig. 4
The type plate of the remote control can be found in the
remote control’s battery compartment�
The type plate of the control unit is located on the un-
derside of the control unit�
4.3 Function
Coping with inclines (max. climbing ability)
The Mover XT4 has been designed to cope with inc-
lines of up to approx� 10% bearing a gross weight of
3100kg on a suitable surface�
13% = 13metre difference in altitude over a dis-
tance of 100metres
Once the drive rollers have been engaged against the
tyres using the remote control, the manoeuvring system
is ready for operation�
Manoeuvring is carried out exclusively via the remote
control, which transmits radio signals to the control
unit� A separately installed 12V lead-acid battery or sui-
table lead-gel battery (not supplied) provides the control
unit with electrical power�
4.4 Power supply
Always observe the operating instructions and the
“Safety instructions” prior to starting� The vehic-
le user is responsible for correct operation of the
device�
4.4.1 Power supply
For optimum operation, we recommend the Truma Po-
werSet BC and high-performance Optima® batteries�
Body-mounted batteries (caravans with self-sufficient
power supply with correspondingly large capacity; see
table below) are also suitable�
Batteries
NOTICE
Malfunctions during operation due to incor-
rect power source
To guarantee proper operation of the mano-
euvring system, it may only be operated with a
charged battery (≥ 12V)�
Operation with a charger as power source is
not possible and prohibited�
Recommended battery capacities
The 12Vbattery used must be certified in accordance
with the national standards and regulations of the coun-
try of use and in accordance with the manufacturer’s in-
stallation instructions� The battery must be dimensioned
in accordance with the technical requirements of the
manoeuvring system�
Starter batteries are not suitable�
Batteries with greater capacity allow the manoeuvring
system to be used for longer�
Round cell
technology
Gel /
AGM
Lead-acid battery
(liquid electrolyte)
Mano-
euvring
system
Capacity in Ah
XT4 55 70 80
Charger
For optimum battery charging, we recommend the Tru-
ma BC 10 charger (a component of the PowerSet BC),
which is suitable for all battery types up to 200Ah�
Fig. 5
4.5 Remote control
4.5.1 The remote control’s functions
NOTICE
Damage to the remote control due to mois-
ture or heat
If moisture gets into the remote control or it is
exposed to strong sunlight for too long, this can
damage the remote control�
Protect the remote control from moisture�
Protect the remote control from strong
sunlight�
If there are other devices that work on the same fre-
quency (e�g� wireless garage doors, video surveillance
cameras, baby monitors, etc�) nearby, the manoeuvring
