TSC DA200 Series Service Manual

DA200/ DA300
Bar Code Printer Service Manual
18
3.7 Replacing the Media Holder Base Assembly

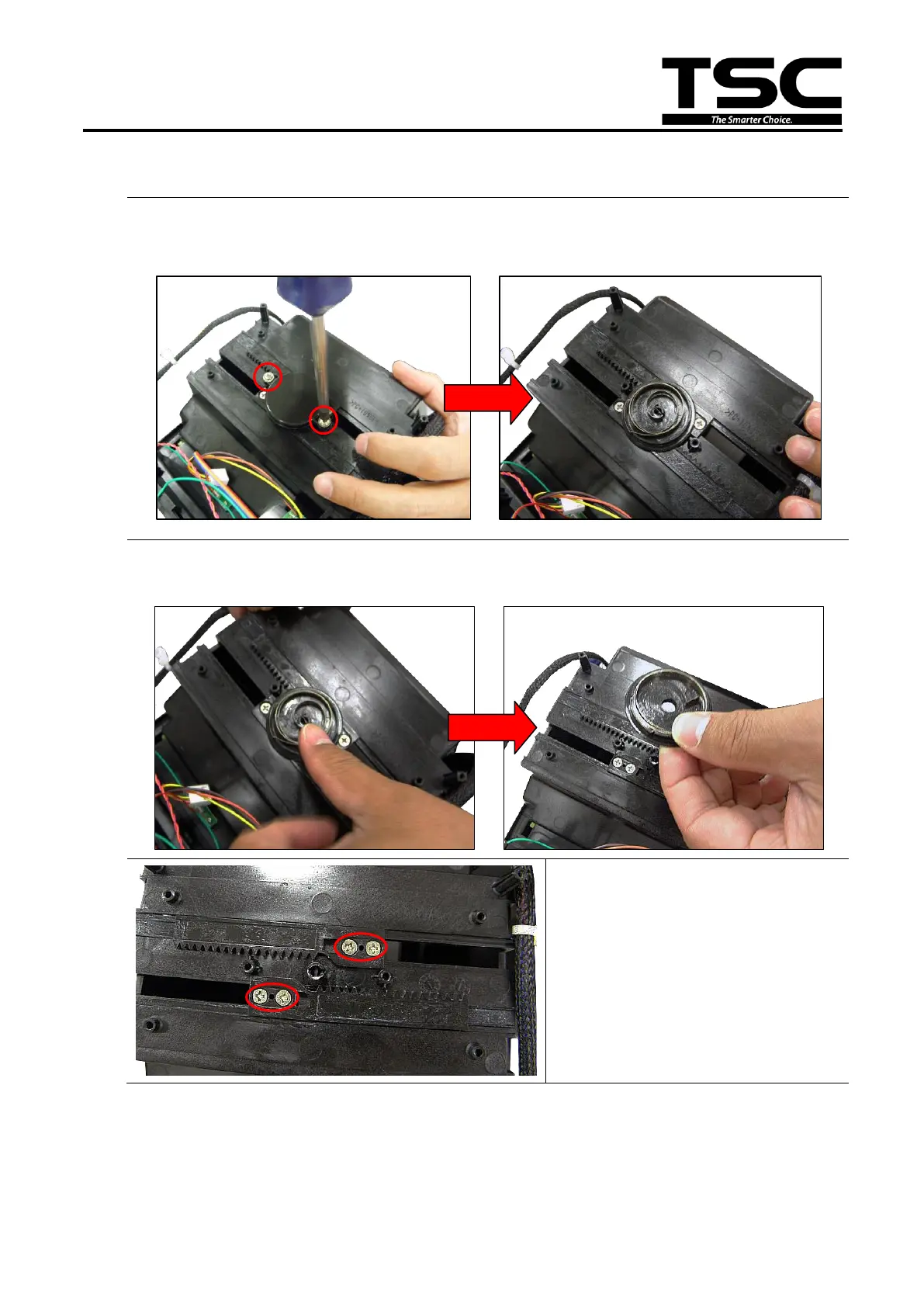

1. Please refer to the section 3.6 to remove the lower cover and black mylar.
2. Remove 2 screws to take off the upper circle cover as shown.
3. Press the spiral sprint then take off lower circle cover. The spiral spring will be
loosed in the cover.
4. Remove 4 screws to replace
the media holder base
assembly.
Press

TSC DA200 Series Specifications

General

Resolution	203 dpi
Max Print Width	108 mm (4.25")
Max Print Length	2, 794 mm (110")
Processor	32-bit RISC CPU
Media Roll Diameter	127 mm (5") OD
Ribbon Core Diameter	25.4 mm (1")
Print Method	Thermal Transfer/Direct Thermal
Max Print Speed	6 ips (inches per second)
Memory	8 MB Flash, 8 MB SDRAM
Interface	USB 2.0
Media Sensor	Reflective, Transmissive
Media Handling	die-cut, fan-fold, continuous
Media Type	Gap, Black mark, Notch, Continuous
Media Width	20 mm ~ 112 mm (0.79" ~ 4.41")
Media Thickness	0.06 mm ~ 0.19 mm
Ribbon Width	30 to 104 mm
Ribbon Length	300 m (984 feet)
Power Supply	External universal switching power supply
