5. MAINTENANCE
This session presents the clean tools and methods to maintain your printer.
1. Please use one of following material to clean the printer.
 Cotton swab (Head cleaner pen)
 Lint-free cloth
 Vacuum / Blower brush
 100% ethanol

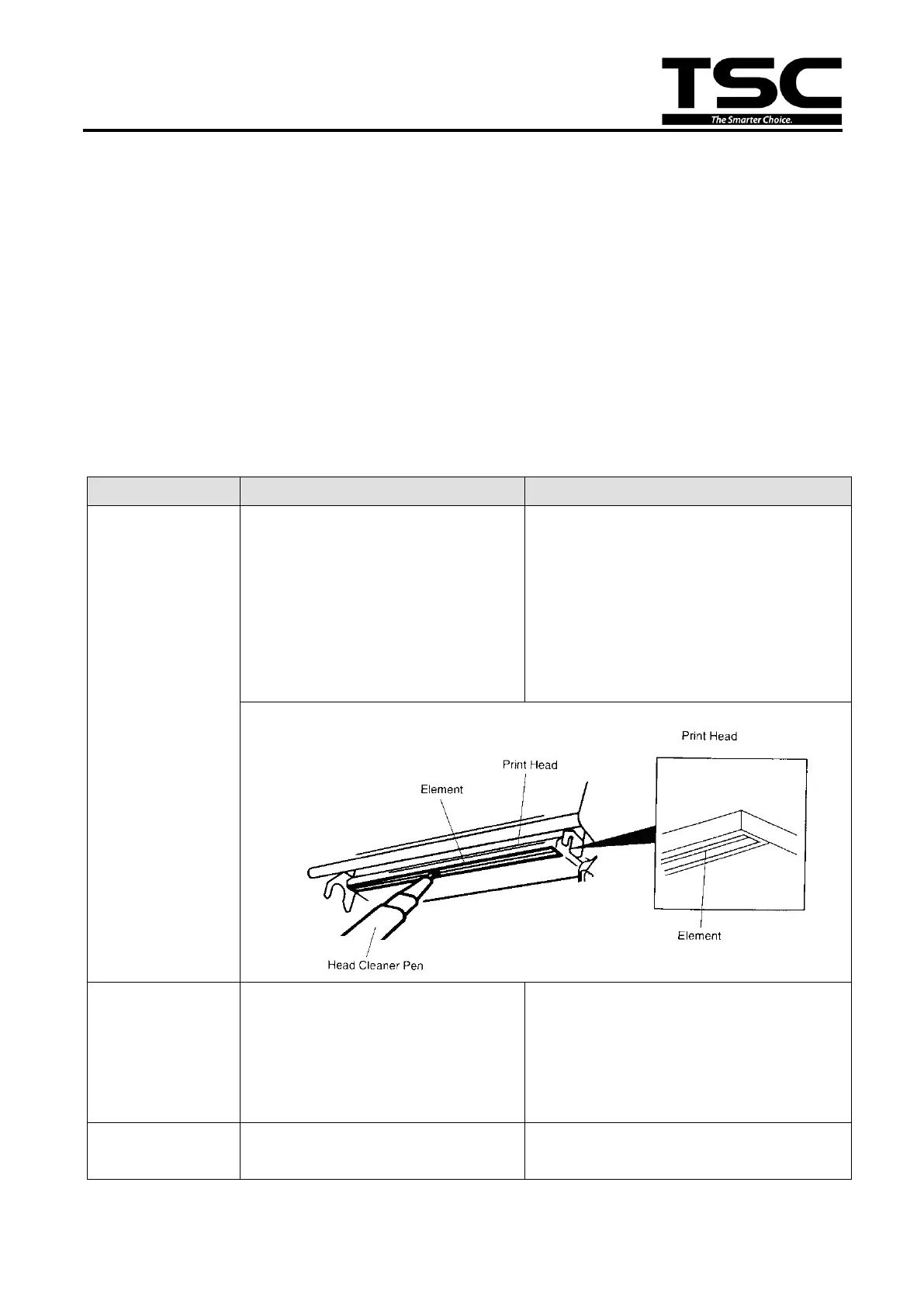

2. The cleaning process is described as following
Printer Part
Method
Interval
Print Head
1. Always turn off the printer
before cleaning the print head.
2. Allow the print head to cool for
a minimum of one minute.
3. Use a cotton swab (Head
cleaner pen) and 100% ethanol
to clean the print head surface.
Clean the print head when changing a
new label roll
Platen Roller
1. Turn the power off.
2. Rotate the platen roller and
wipe it thoroughly with 100%
ethanol and a cotton swab, or
lint-free cloth.
Clean the platen roller when changing
a new label roll
Tear Bar/Peel
Bar
Use the lint-free cloth with 100%
ethanol to wipe it.
As needed

TSC DA200 Series Specifications

General

Resolution	203 dpi
Max Print Width	108 mm (4.25")
Max Print Length	2, 794 mm (110")
Processor	32-bit RISC CPU
Media Roll Diameter	127 mm (5") OD
Ribbon Core Diameter	25.4 mm (1")
Print Method	Thermal Transfer/Direct Thermal
Max Print Speed	6 ips (inches per second)
Memory	8 MB Flash, 8 MB SDRAM
Interface	USB 2.0
Media Sensor	Reflective, Transmissive
Media Handling	die-cut, fan-fold, continuous
Media Type	Gap, Black mark, Notch, Continuous
Media Width	20 mm ~ 112 mm (0.79" ~ 4.41")
Media Thickness	0.06 mm ~ 0.19 mm
Ribbon Width	30 to 104 mm
Ribbon Length	300 m (984 feet)
Power Supply	External universal switching power supply
